Elantra GLS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System
>>
DTC Trouble Shooting Procedures
>>
DTC P0116: Engine Coolant Temperature Sensor (ECTS) Circuit Range/Performance Problem
>>
Signal Waveform
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform

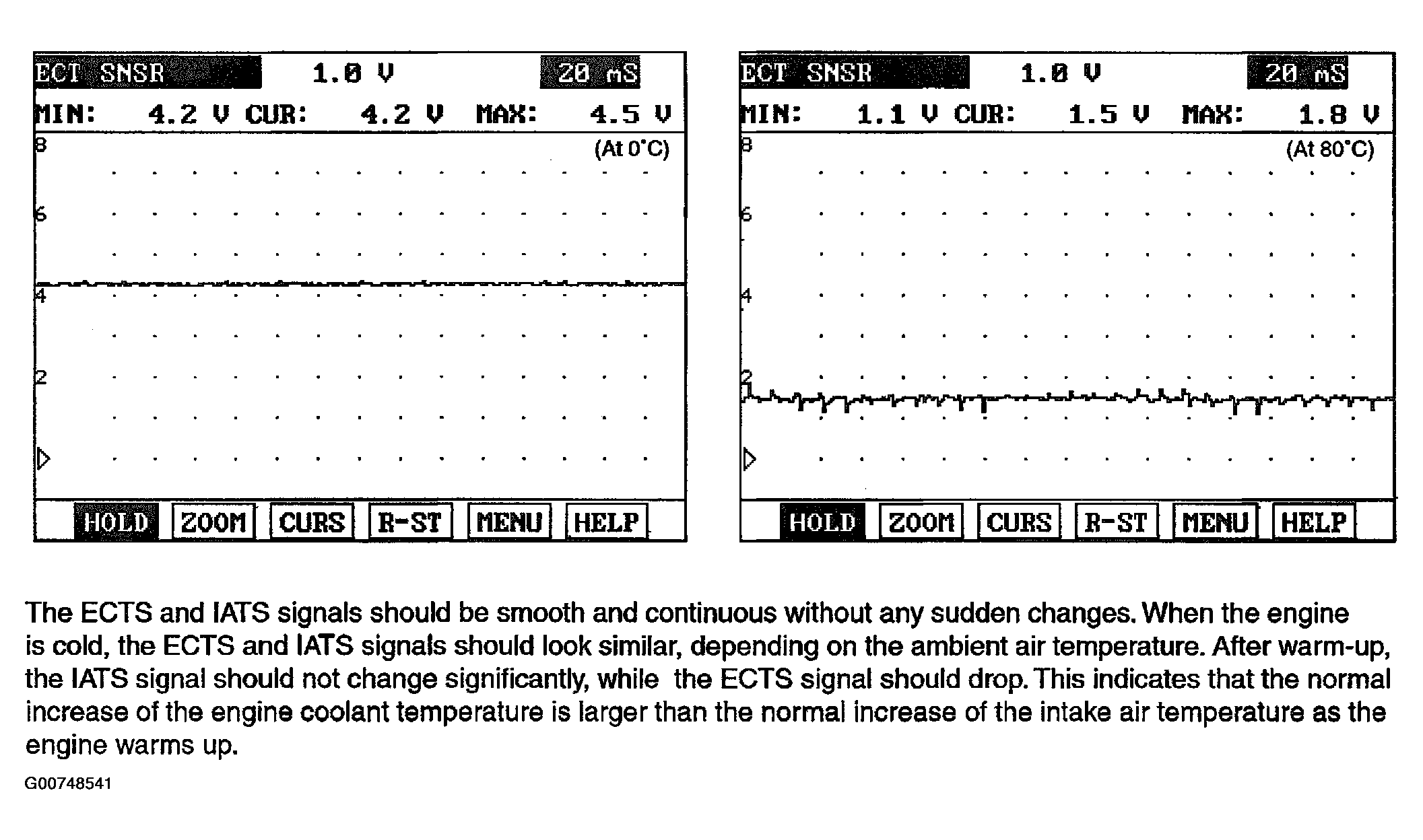

Fig 1: ECTS Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
