5. Check For Open In Harness

1. Turn ignition switch to OFF position.
2. Disconnect ECM connector.
3. Measure resistance of TPS ground harness between terminal 2 of the TPS harness connector and terminal 38 of the ECM harness connector.
4. Measure resistance of TPS signal harness between terminal 1 of the TPS harness connector and terminal 32 of the ECM harness connector.

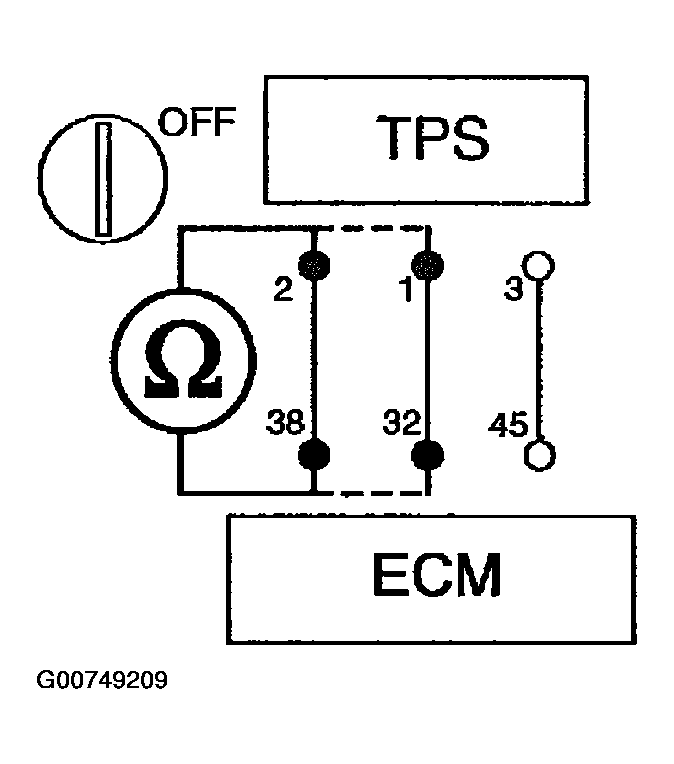

   Fig 1: Checking TPS Harness For Open Circuit

   Courtesy of HYUNDAI MOTOR CO.
   • Specification: below 1Ω

Does each resistance indicate continuity?

Yes: Go to next step.

No: Repair open in harness.
