5. Check For Open In Harness

1. Turn ignition switch to OFF position and keep the ECM and FTPS connectors disconnected.
2. Measure resistance between terminal 3 of the FTPS harness connector and 33 of the ECM harness connector.
3. Measure resistance between terminal 2 of the FTPS harness connector and 34 of the ECM harness connector.

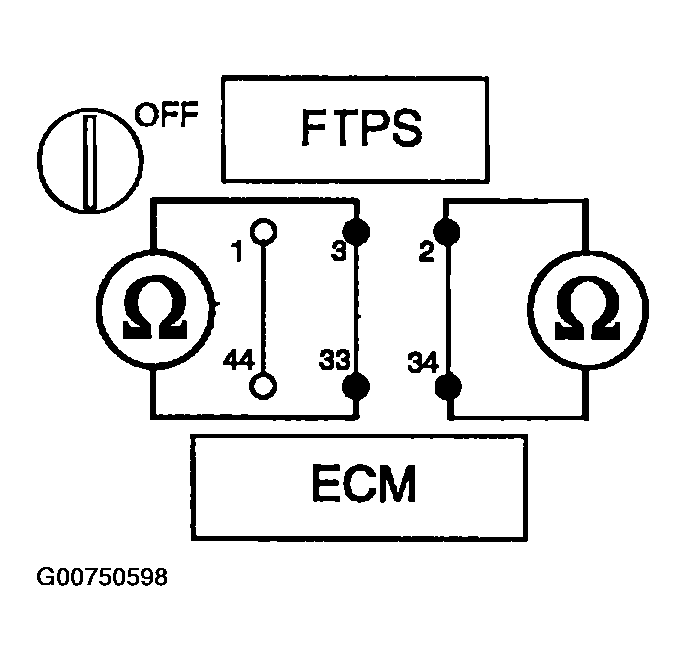

   Fig 1: Checking FTPS Harness For Open Circuit

   Courtesy of HYUNDAI MOTOR CO.
   • Specification: below 1Ω

Does each resistance indicate continuity?

Yes: Proceed with ECM problem procedure.

No: Repair open in harness.
