Signal Waveform

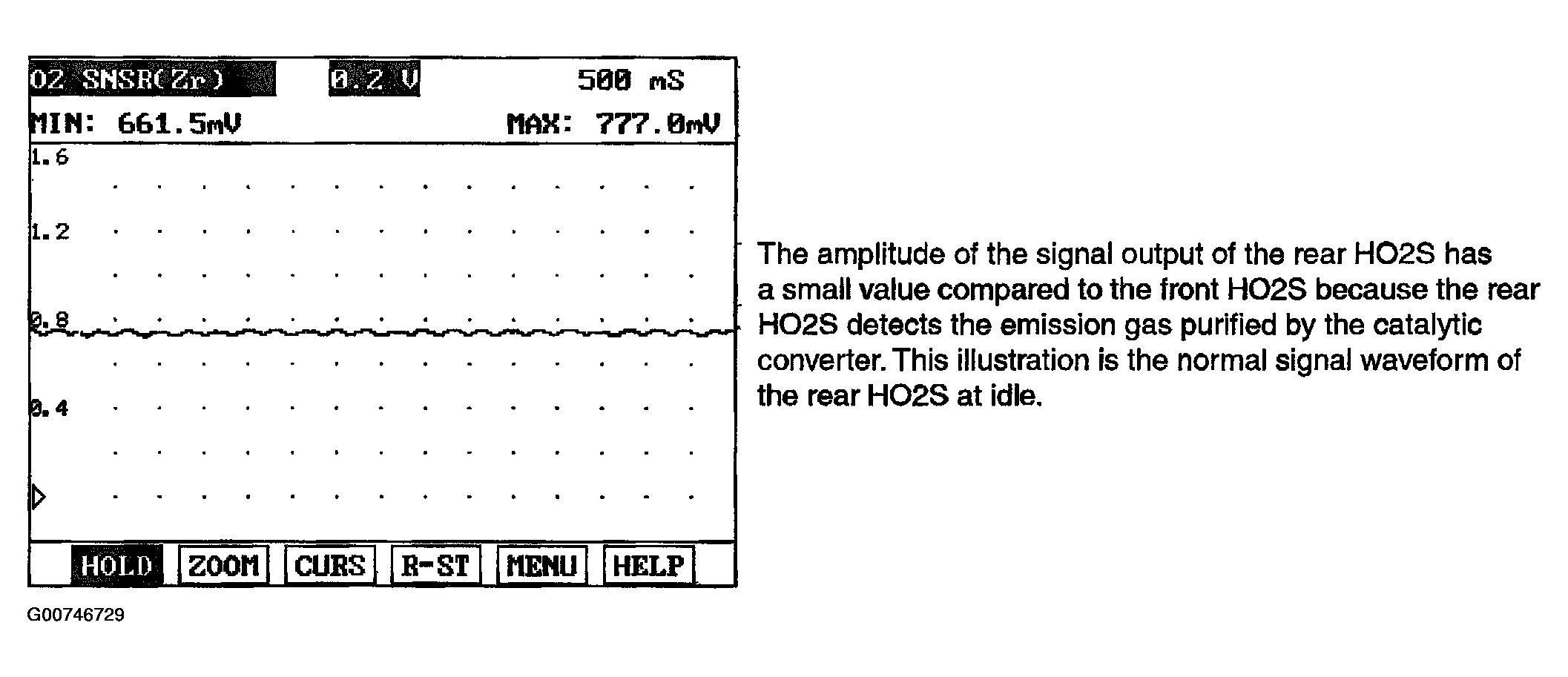

Fig 1: HO2S Signal Waveform

Courtesy of HYUNDAI MOTOR CO.

The amplitude of the signal output of the rear HO2S has a small value compared to the front HO2S because the rear HO2S detects the emission gas purified by the catalytic converter. This illustration is the normal signal waveform of the rear HO2S at idle.
