Power Window Sub Switch

1. Remove the power window sub switch from the rear door trim panel.

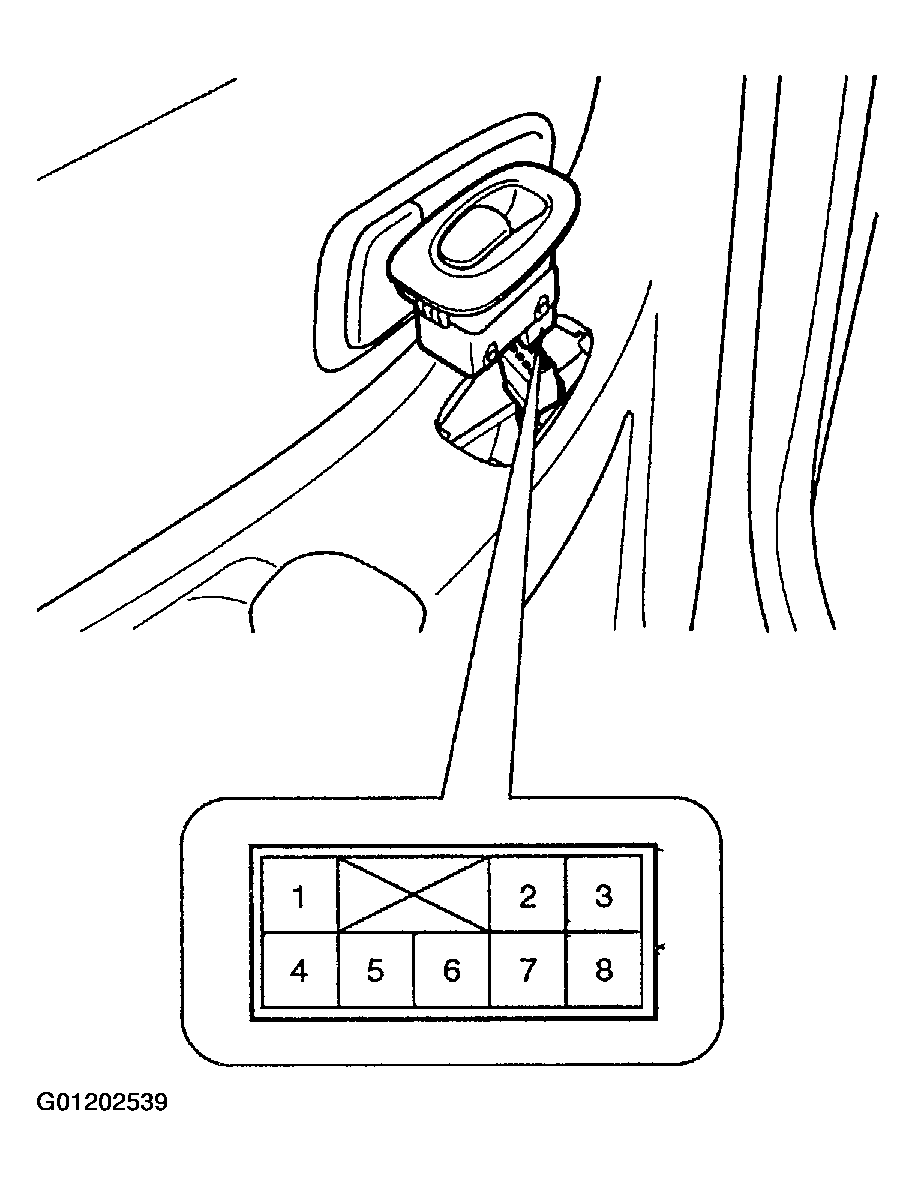

   Fig 1: Identifying Power Window Sub Switch Connector Terminals

   Courtesy of HYUNDAI MOTOR CO.
2. Check for continuity between the terminals.

If continuity is not as specified in the table, replace the power window switch.

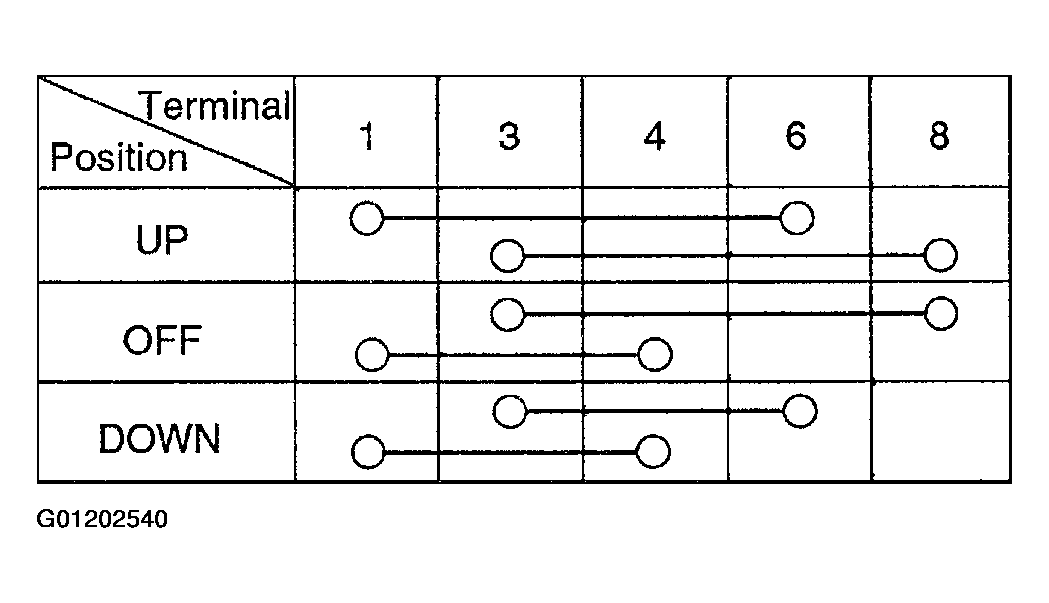

Fig 2: Power Window Sub Switch Continuity Table

Courtesy of HYUNDAI MOTOR CO.
