Front Wheel Speed Sensor

  1. Remove the front wheel speed sensor mounting bolt (A).

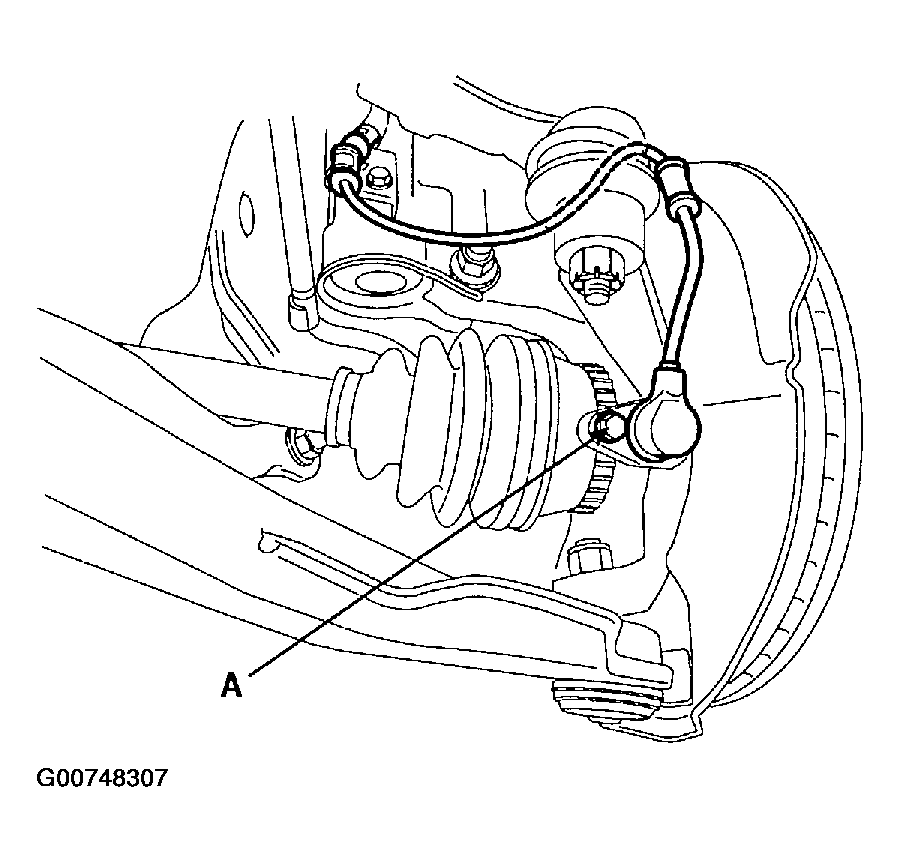

    Fig 1: Locating Front Wheel Speed Sensor Mounting Bolt
    G00748307Courtesy of HYUNDAI MOTOR CO.
  2. Remove the front wheel guard (A).

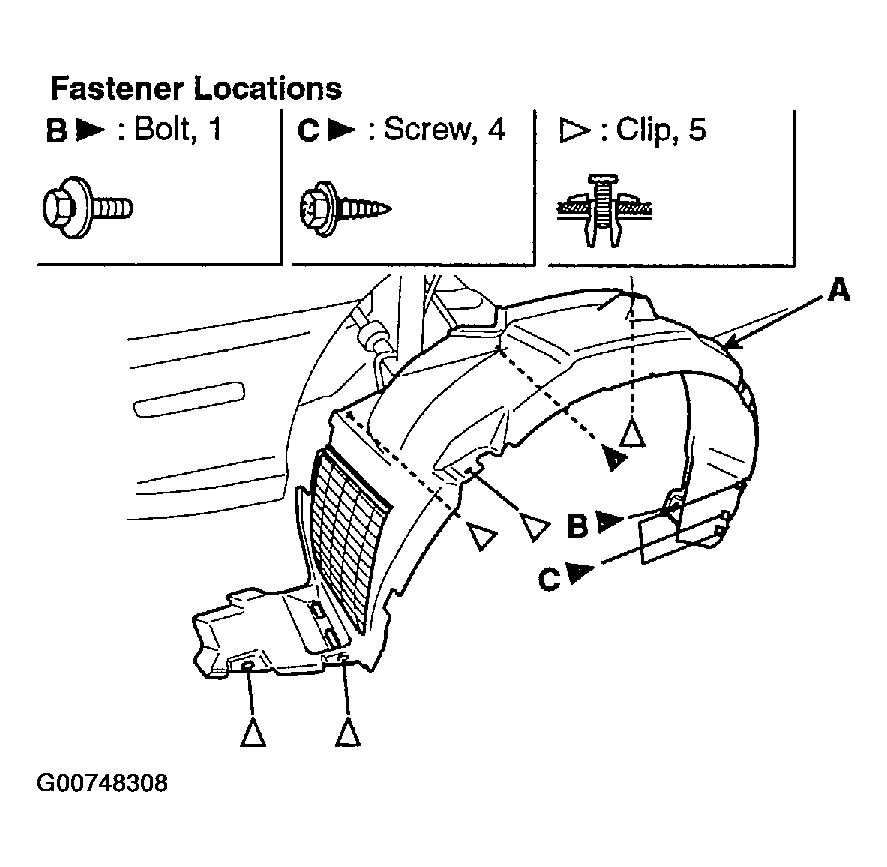

    Fig 2: Locating Front Wheel Guard
    G00748308Courtesy of HYUNDAI MOTOR CO.
  3. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).

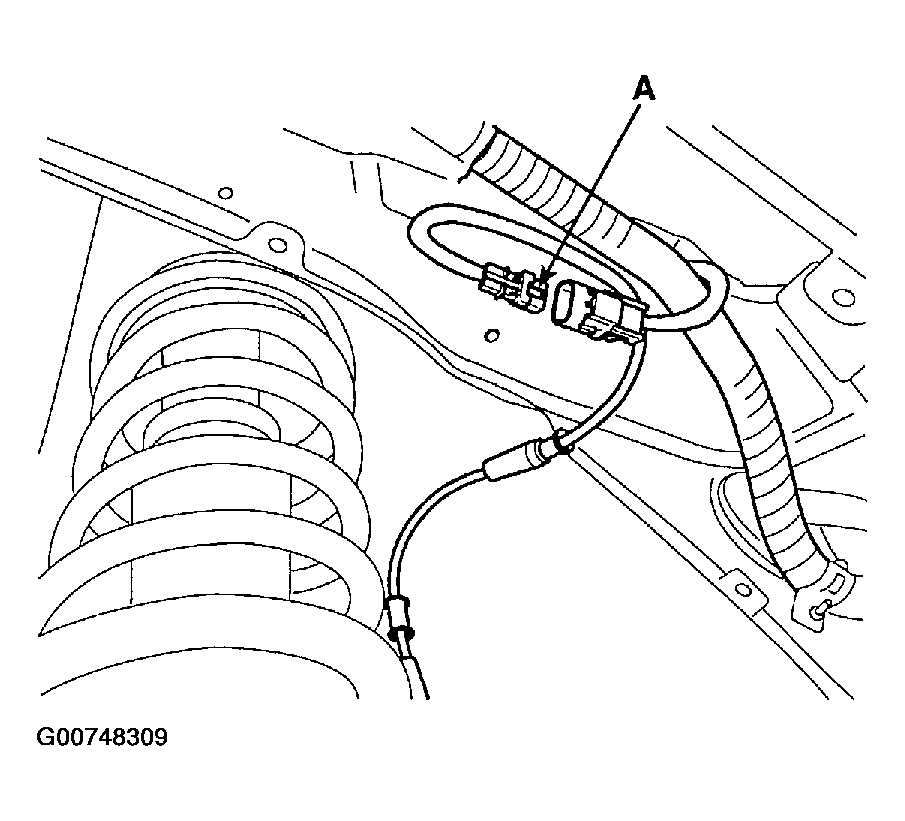

    Fig 3: Removing Front Wheel Speed Sensor Connector
    G00748309Courtesy of HYUNDAI MOTOR CO.
