DTC P0116: Engine Coolant Temperature Sensor (ECTS) Circuit Range/Performance Problem: Specifications

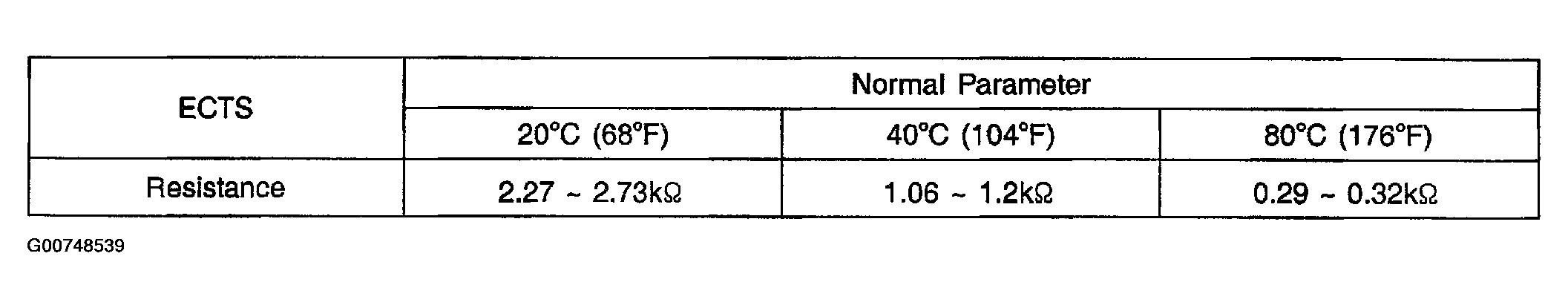

Fig 1: ECTS Specification Table
G00748539Courtesy of HYUNDAI MOTOR CO.
