2. Check OTS Resistance

1. Turn ignition switch to OFF position.
2. Check resistance of OTS between terminals 1 and 2 of the OTS connector.

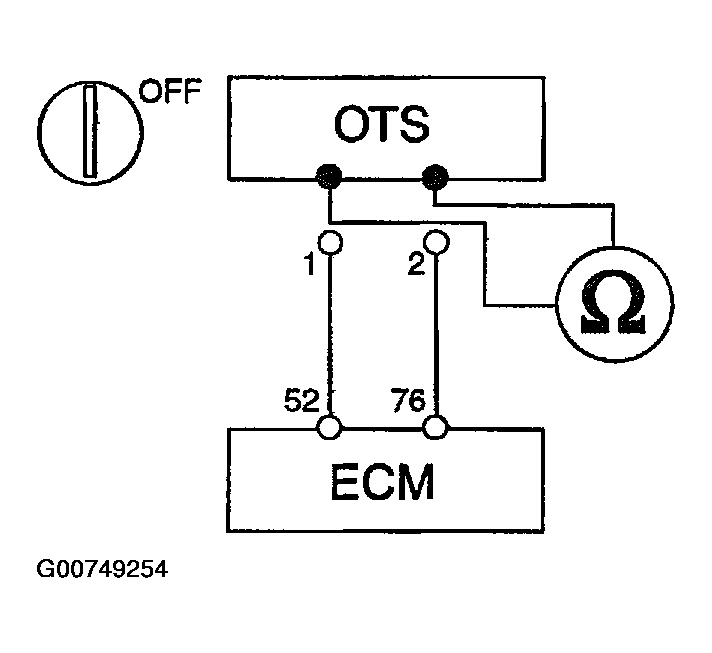

   Fig 1: Measuring OTS Resistance

   Courtesy of HYUNDAI MOTOR CO.
   • Refer to DTC P0196  SPECIFICATIONS   for more information.

Is resistance within specification?

Yes: Go to next step.

No: Replace OTS.
