3. Check Power To OTS

1. Turn ignition switch to ON position.
2. Measure voltage between terminal 2 of the OTS harness connector and chassis ground.

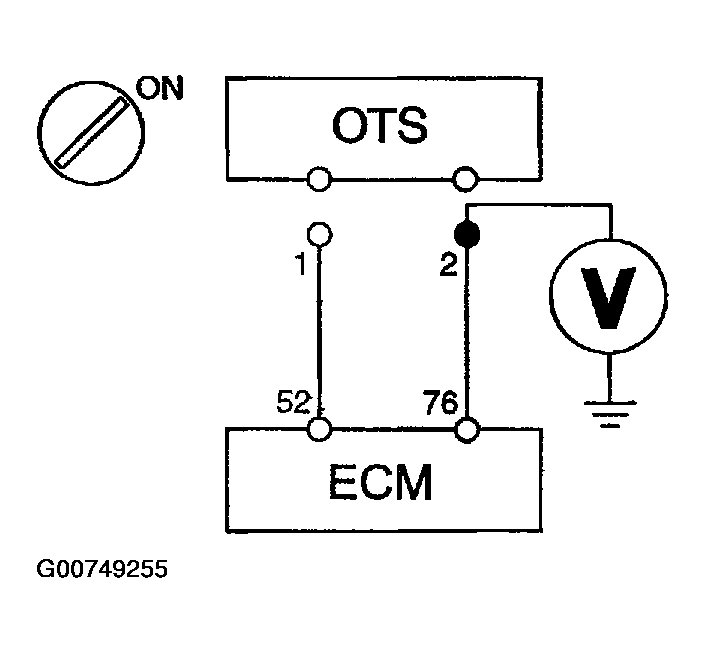

   Fig 1: Checking OTS Power Supply

   Courtesy of HYUNDAI MOTOR CO.
   • Specification : approximately 5V

Is voltage within specification?

Yes: Go to next step.

No: Repair open or short to chassis ground in harness.
