4. Check For Open In Harness

1. Turn ignition switch to OFF position.
2. Disconnect ECM connector.
3. Check for open in signal harness between terminal 2 of the OTS harness connector and 76 of the ECM harness connector.

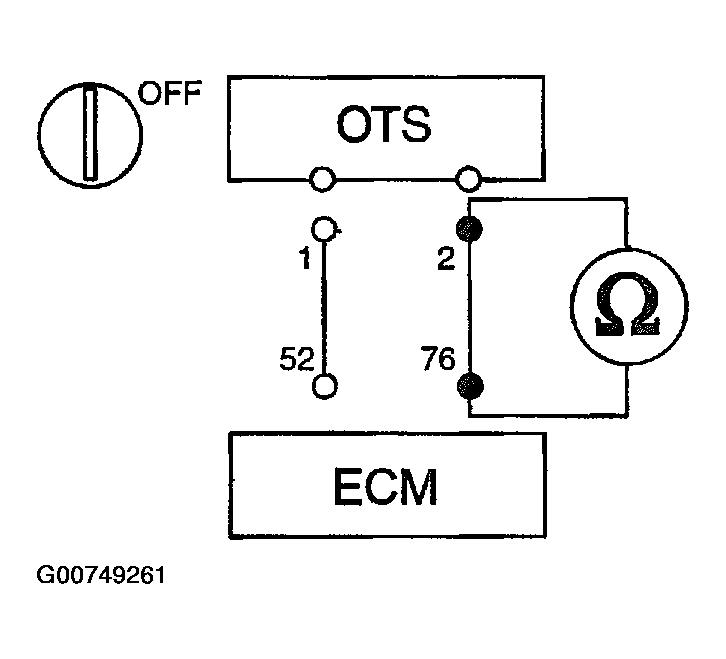

   Fig 1: Checking OTS Harness For Open Circuit

   Courtesy of HYUNDAI MOTOR CO.
   • Specifications: below 1Ω

Does resistance indicate continuity?

Yes: Go to next step.

No: Repair open in harness.
