5. Check For Open In Harness

  1. Check for open in ground harness between terminal 1 of the OTS harness connector and 52 of the ECM harness connector.

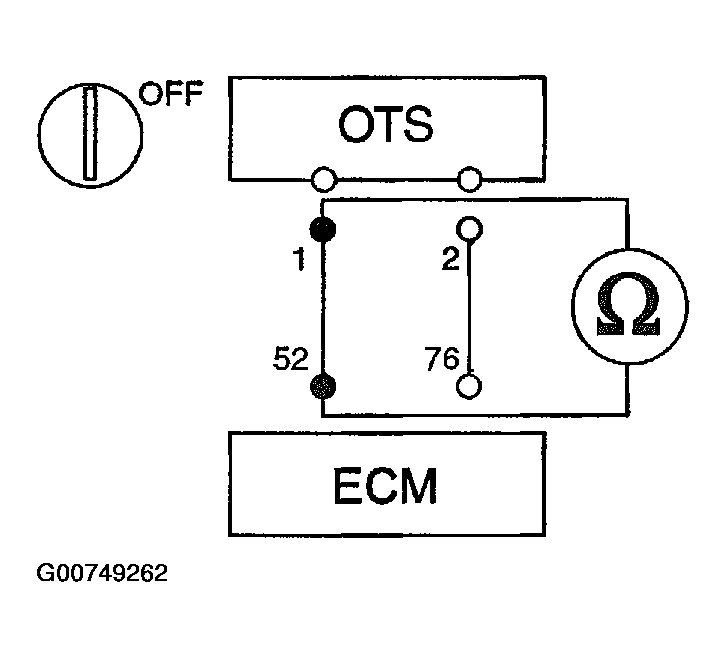

    Fig 1: Checking OTS Harness For Open Circuit
    G00749262Courtesy of HYUNDAI MOTOR CO.
    • Specifications: below 1Ω

Does each resistance indicate continuity?

Yes: Go to next step.

No: Repair open in harness.
