DTC P2231: O2 Sensor Signal Circuit Shorted To Heater Circuit (Bank 1, Sensor 1): DTC Detecting Condition

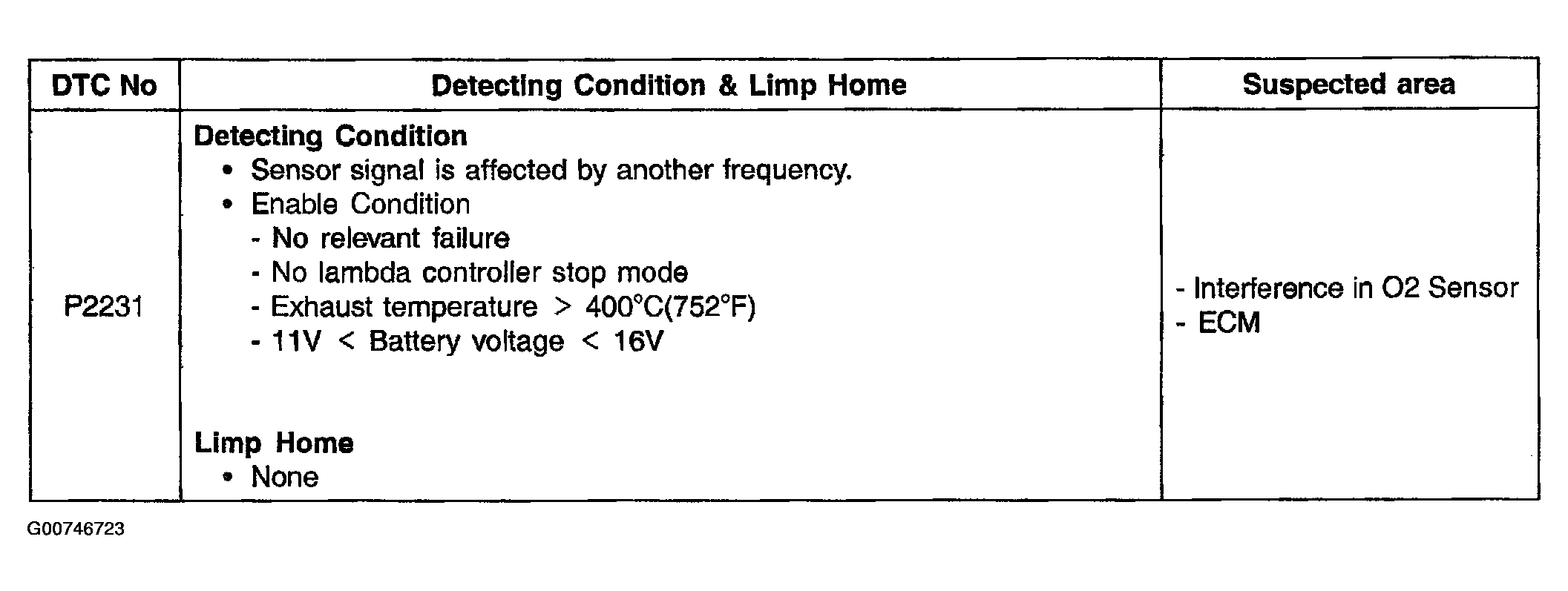

Fig 1: DTC P2231: Detecting Conditions & Probable Causes
G00746723Courtesy of HYUNDAI MOTOR CO.
