Vehicle Speed Sensor Replacement: Removal

  1. Lift up the vehicle.
  2. Remove the vehicle speed sensor (A).

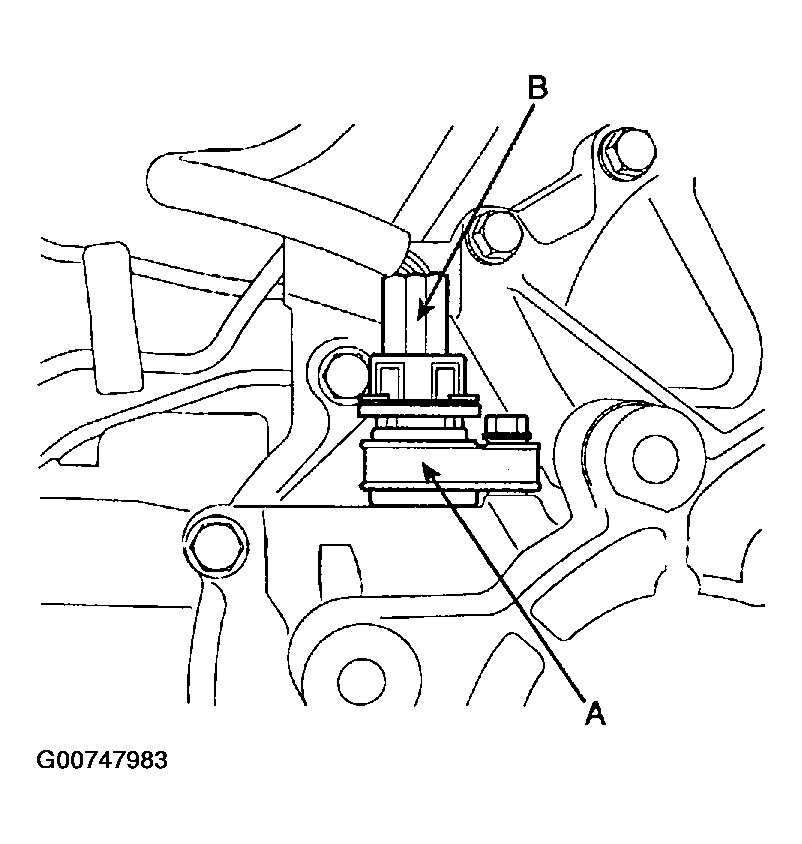

    Fig 1: Removing Vehicle Speed Sensor
    G00747983Courtesy of HYUNDAI MOTOR CO.
    1. Disconnect the vehicle speed sensor connector (B).
    2. Remove the bolt (10mm).
    3. Inspect the vehicle speed sensor bore.
  3. Inspect the O-ring for nicks or cut. Install a new O-ring as necessary.
