ETACS Function: Notes

Vehicle speed sensing intermittent wiper

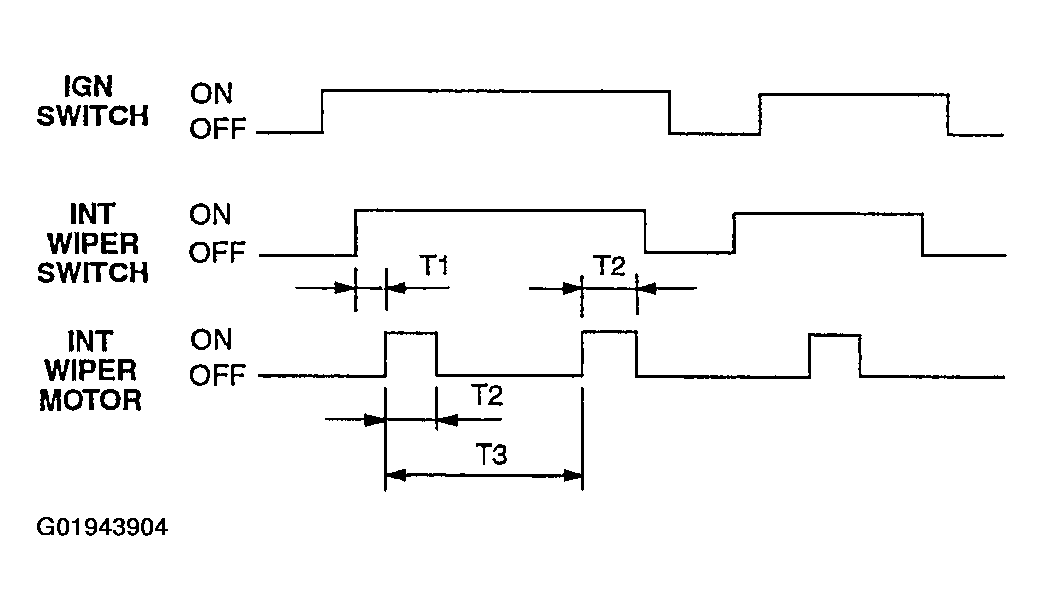

Fig 1: Variable Intermittent Wiper Timing Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: Max. 0.5 sec.

T2: 0.6+/-0.7 sec. (Time of wiper motor 1 rotation)

T3: At vehicle speed = 0km/h.
1. 2.6+/-0.7 sec. (VR=0kohm)+/-18.0+/-1 sec (VR=50Kohm)
2. At vehicle speed = 100km/h or more.
3. 1.0+/-0.2 sec (VR=0kohm)~10.0+/-1 sec (VR=50Kohm)
Washer

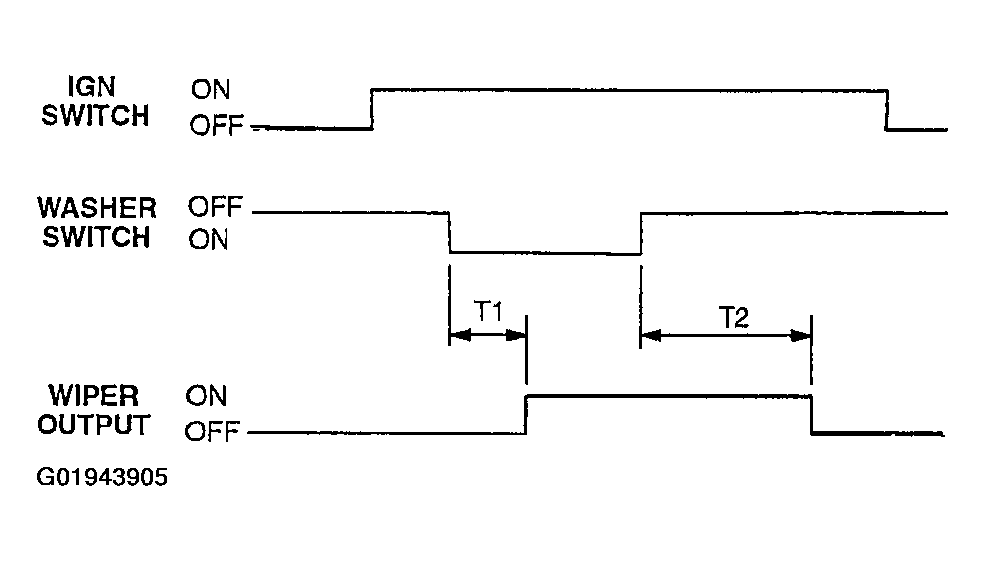

Fig 2: Wiper Related To Washer Timing Chart
Courtesy of HYUNDAI MOTOR CO.
1. Time specification
  T1: 0.2 ~ 0.4 sec.

  T2: 2.5 ~ 3.8 sec.
2. This function should be operated preferentially even though the variable intermittent wiper is operating.
Rear window defogger

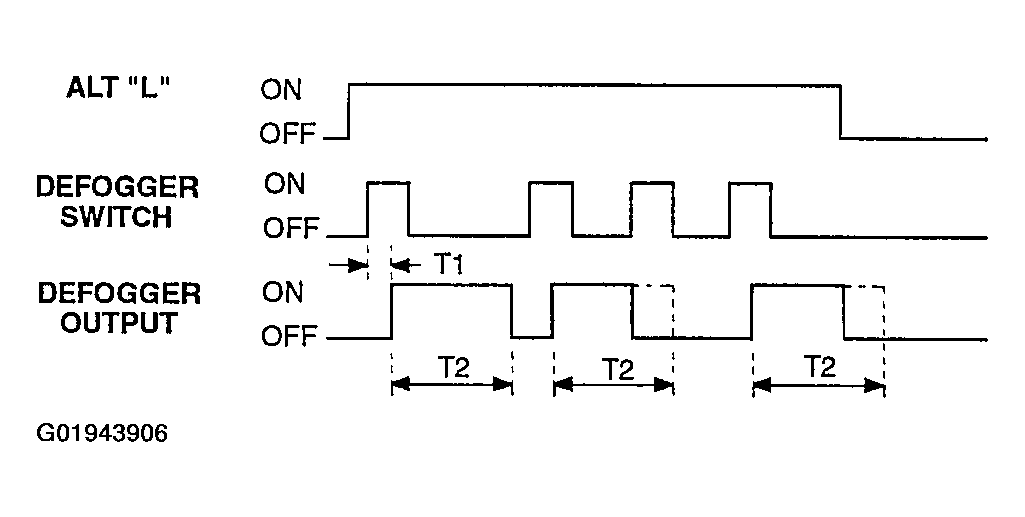

Fig 3: Defogger Timer Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 60 msec

T2: 20+/-1 min.
Seat belt warning

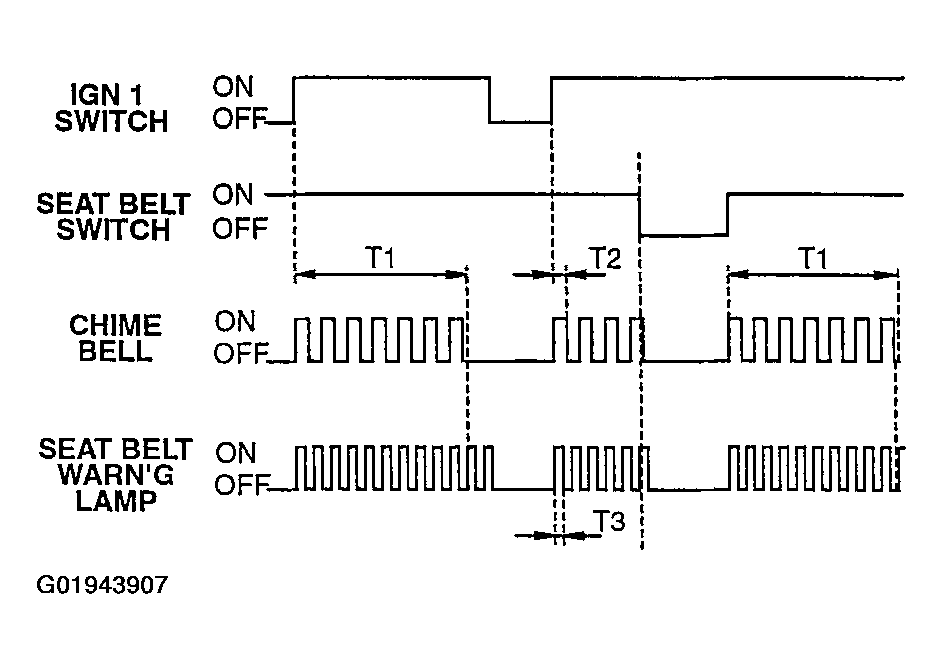

Fig 4: Seat Belt Warning Timer Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 6 +/- 1 sec.

T2: 0.45+/-0.1 sec.

T3: 0.3 +/- 0.1 sec.
Ignition key hole illumination

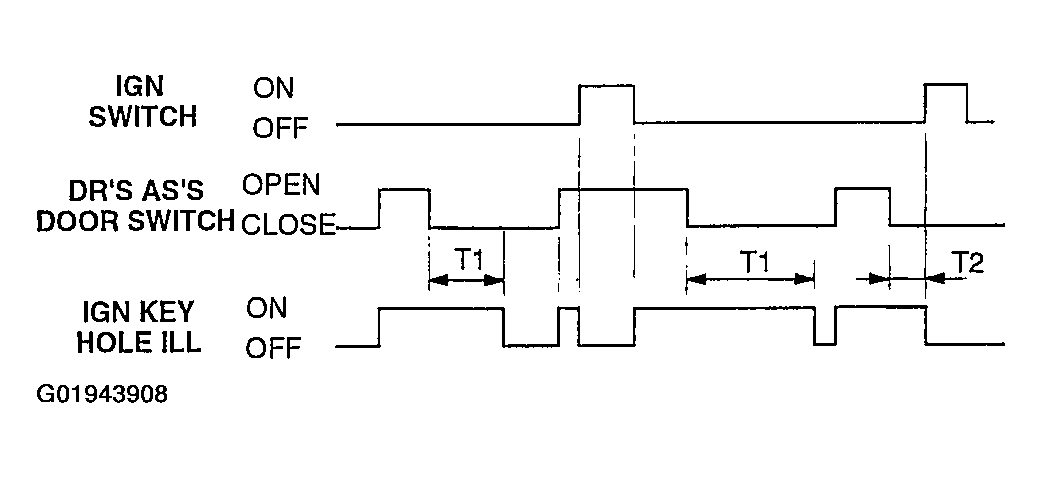

Fig 5: Ignition Key Hole Illumination Timing Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 10 +/- 1 sec.

T2: 0 ~ 10 sec.
Decayed out room lamp

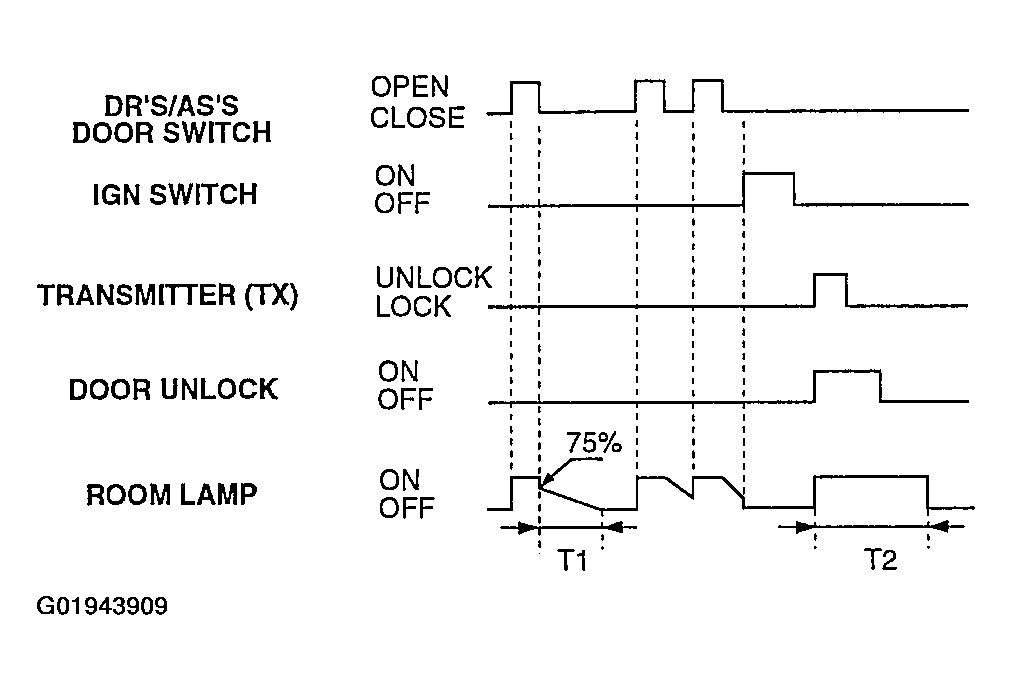

Fig 6: Lamp Timer Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 5.5+/-0.5 sec.

T2: 30+/-2 sec.
Key operated warning

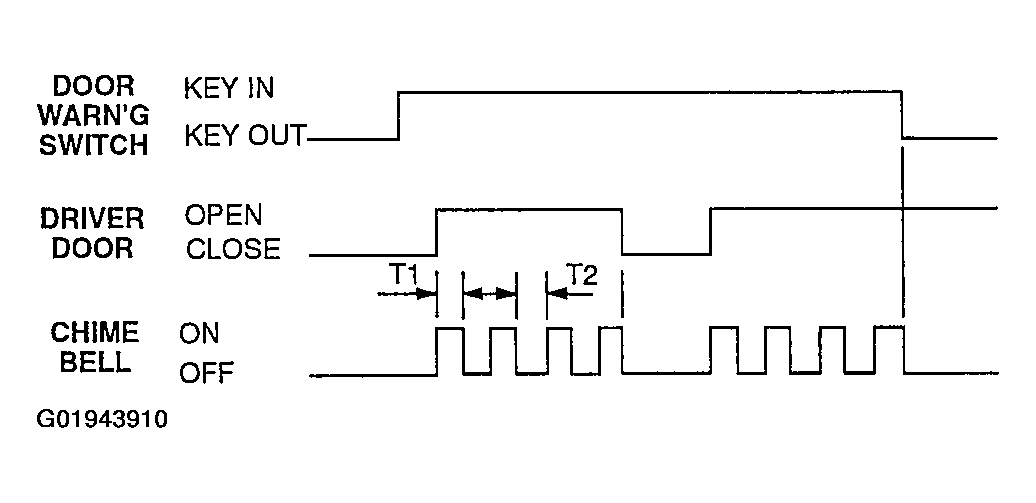

Fig 7: Key Operated Warning Timing Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1, T2: 0.45+/-0.1 sec.
Ignition key reminder

Fig 8: Ignition Key Reminder Timing Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 0.5 sec.

T2: 1 sec.

T3: 0.5 sec., 3 times
Tail lamp auto cut

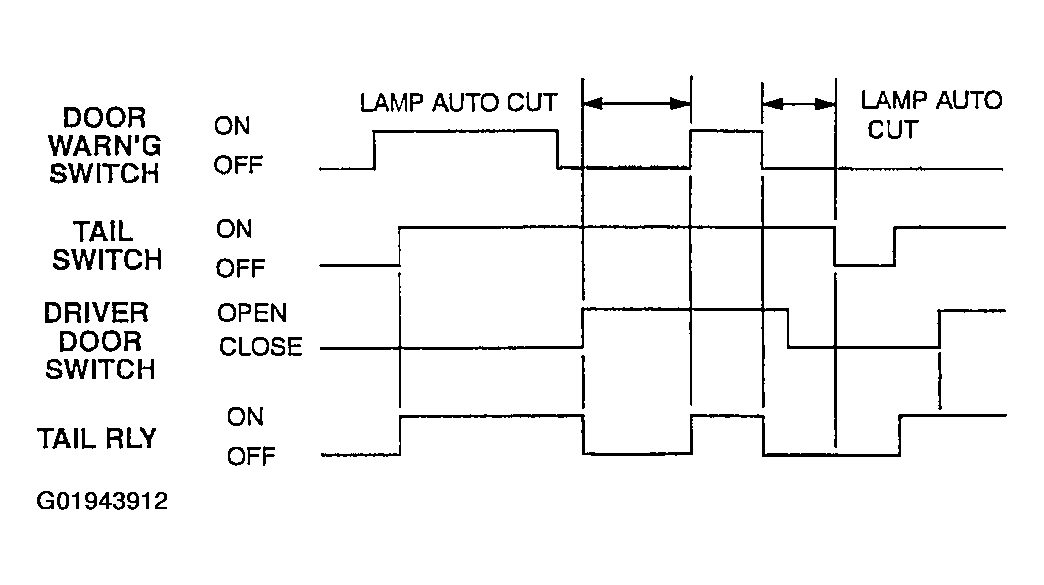

Fig 9: Tail Lamp Auto Cut Timing Chart
Courtesy of HYUNDAI MOTOR CO.
Power window timer

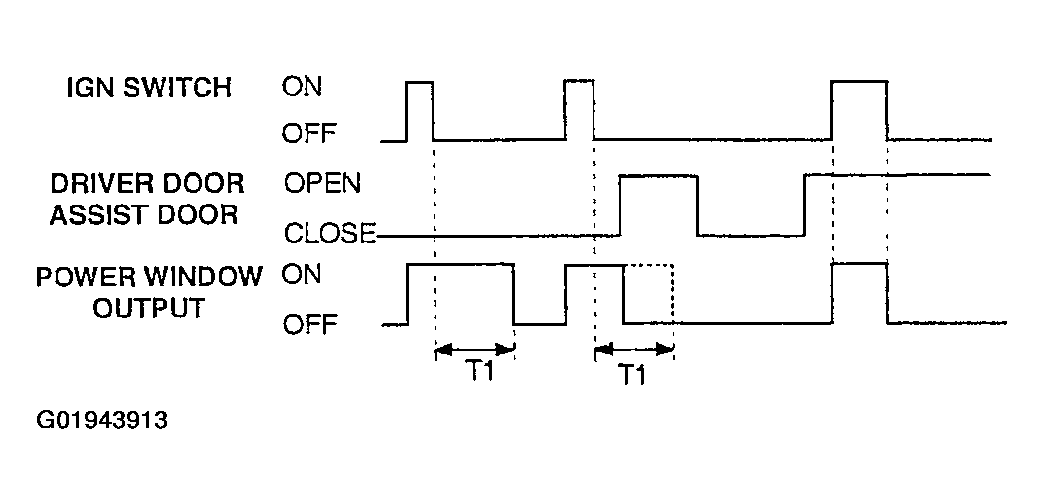

Fig 10: Power Window Timer Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 30+/-3 sec.
Central door lock/unlock

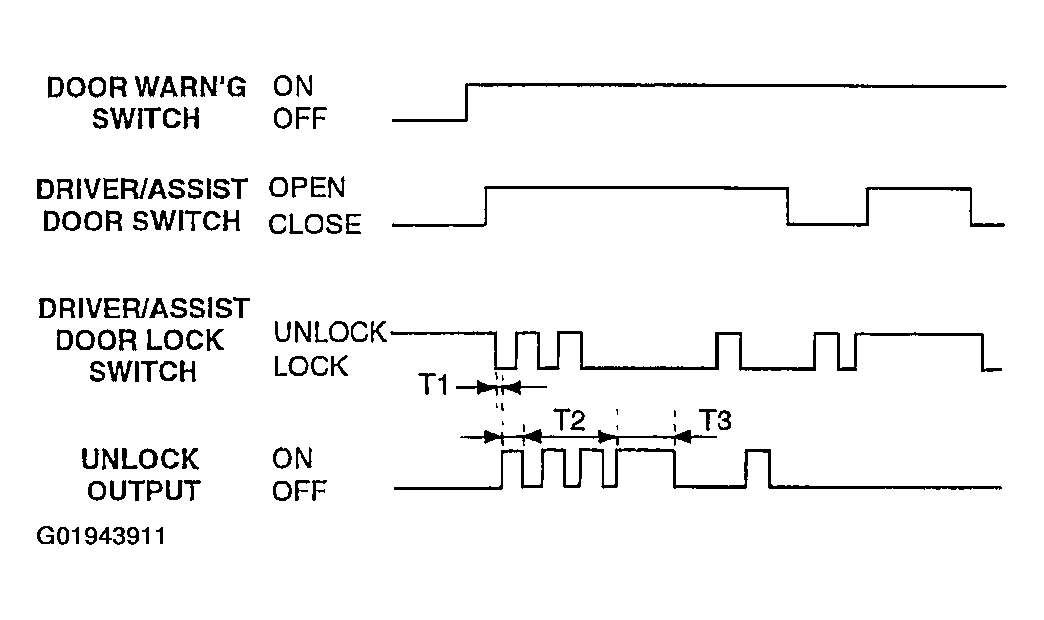

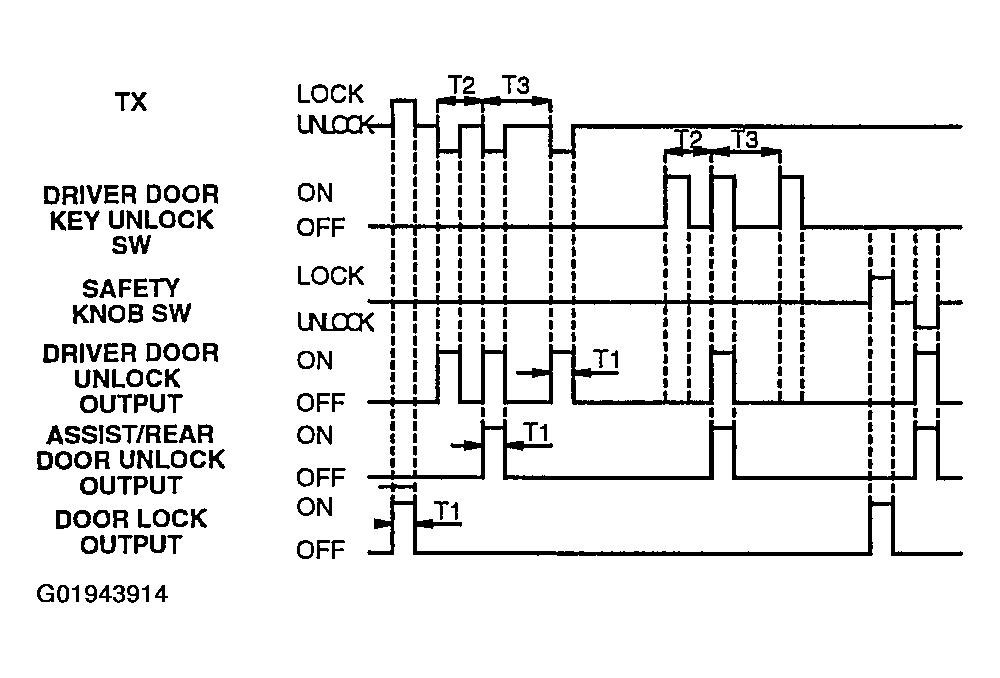

Fig 11: Central Door Lock/Unlock Timer Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 0.5+/-0.1 sec.

T2: Max. 4 sec.

T3: Min. 4 sec.
Crash door unlock

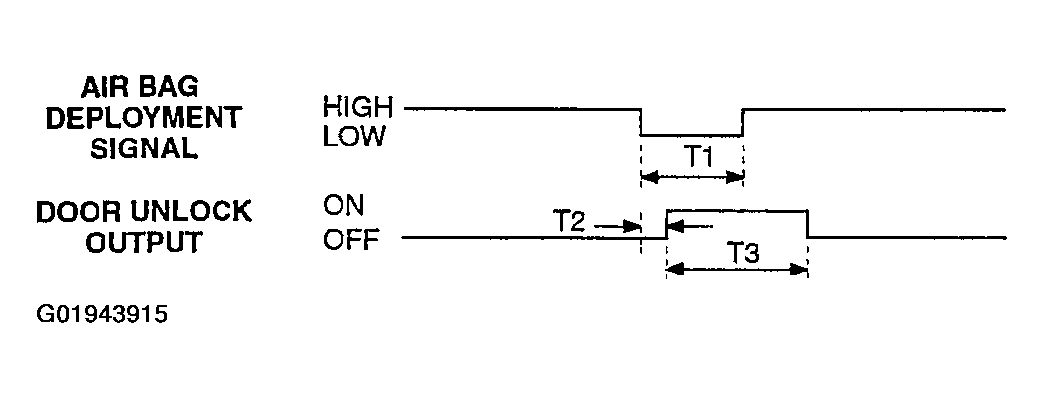

Fig 12: Crash Door Unlock Timing Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 200ms

T2: 40ms

T3: 5+/-0.5 sec.
Parking start warning

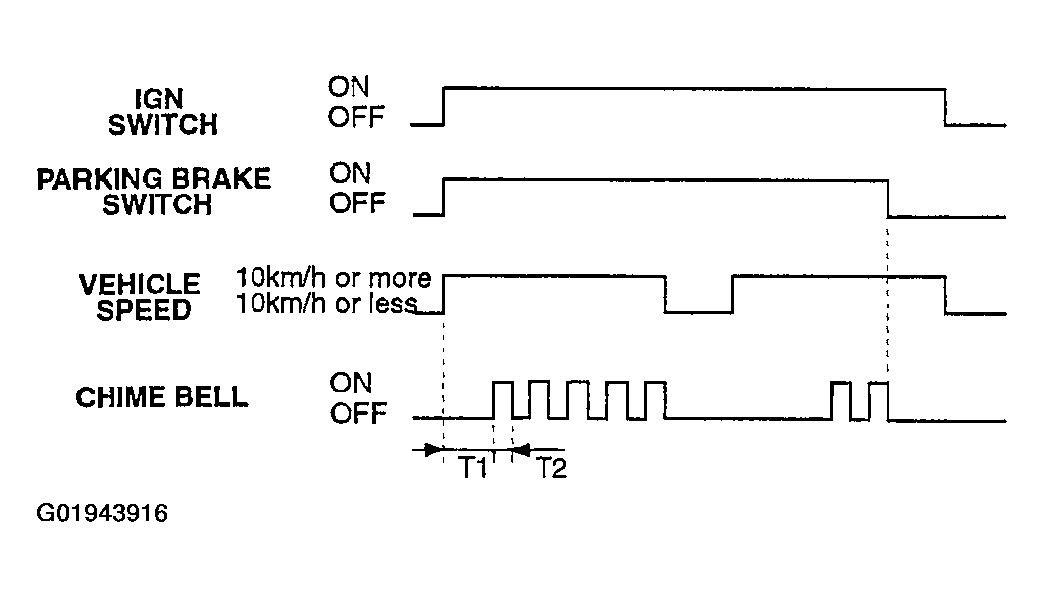

Fig 13: Parking Start Warning Timing Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 2.5+/-0.5 sec

T2: 0.3+/-0.1 sec
TX lock two times function

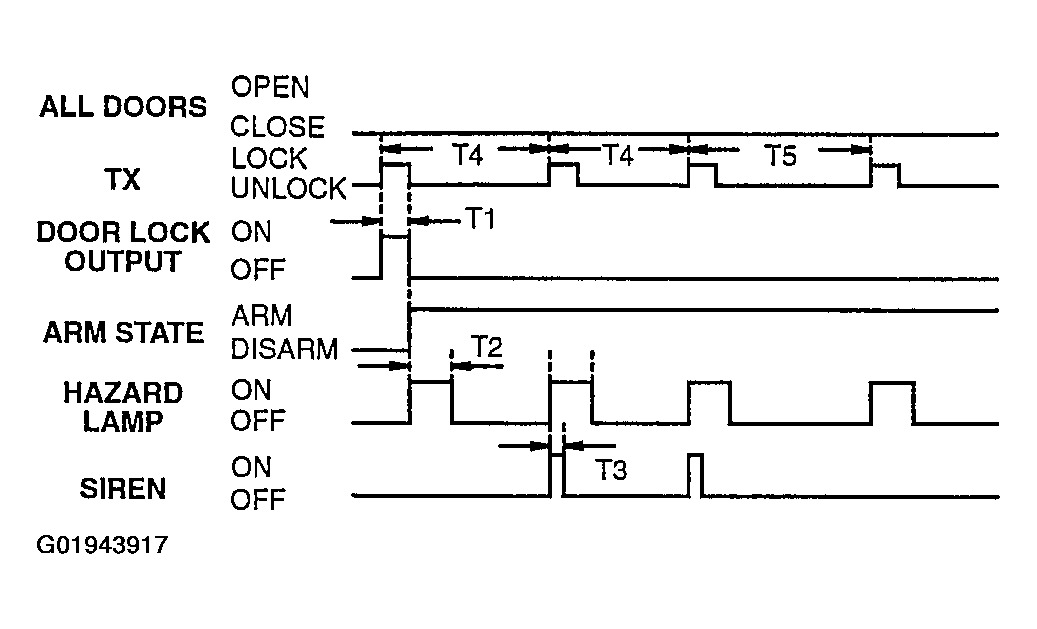

Fig 14: TX Lock Two Times Function Timing Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 0.5+/-0.1 sec., T2: 1+/-0.2 sec., T3: 0.05 sec.,

T4: Max. 4 sec., T5: Min. 4 sec.
Panic alarm

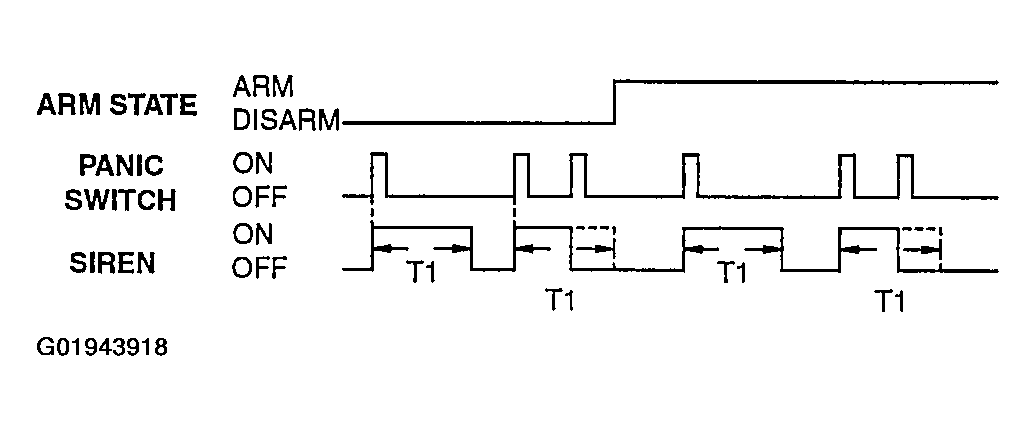

Fig 15: Panic Alarm Timing Chart
Courtesy of HYUNDAI MOTOR CO.

Time specification

T1: 30+/-1 sec
