Inspect Circuits For Daytime Running Light System

  1. Disconnect the wire connector to DRL module from engine compartment.
  2. Inspect the connector on wire harness side as shown.
    Fig 1: Identifying DRL Module Connector Terminals
    G01944077Courtesy of HYUNDAI MOTOR CO.

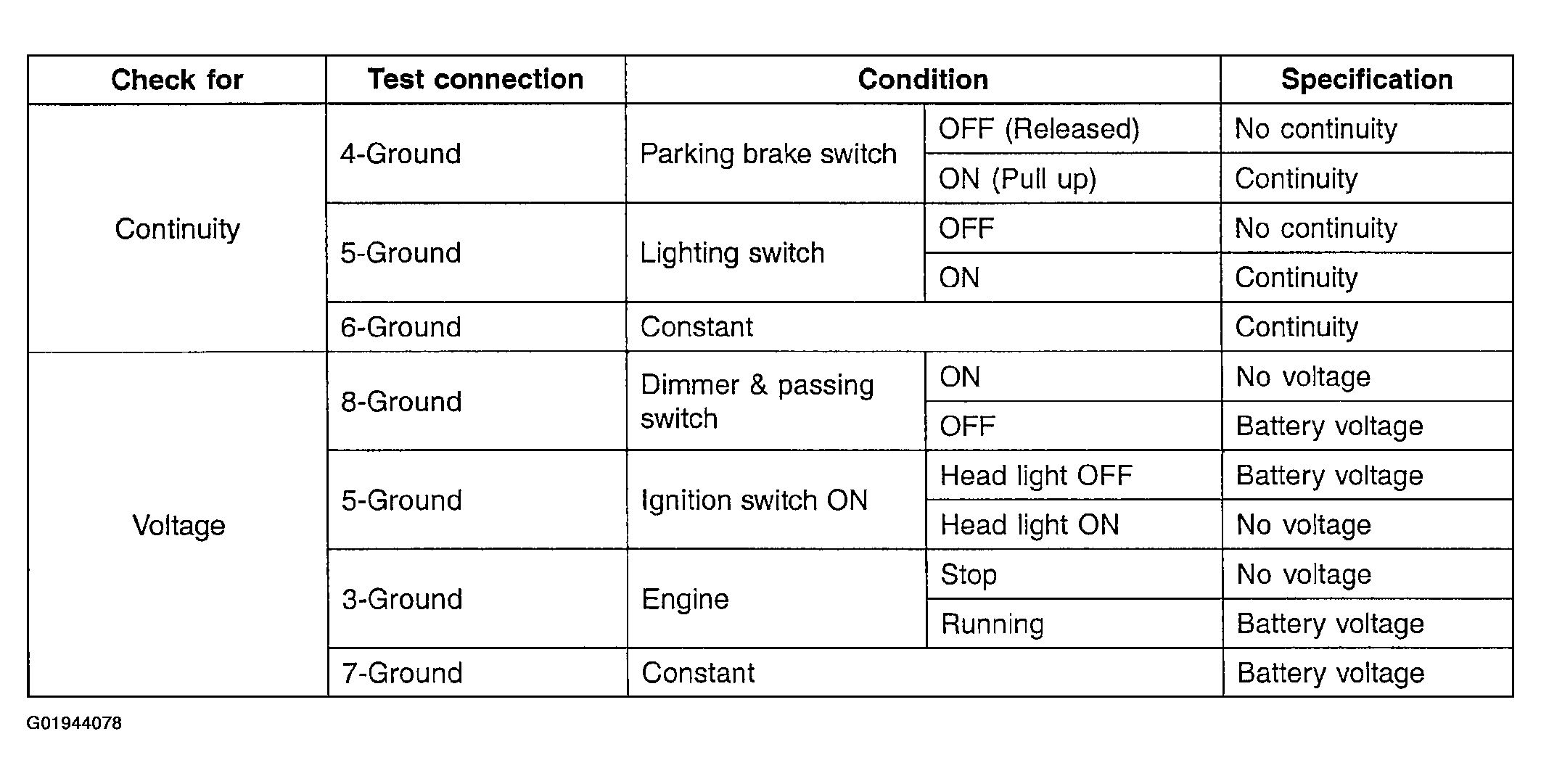

    Fig 2: Daytime Running Light Test Specification Table
    G01944078Courtesy of HYUNDAI MOTOR CO.
  3. If circuit is not as specified, refer to HEADLIGHTS .
