Scan Tool Communication With Pcm Is Not Possible

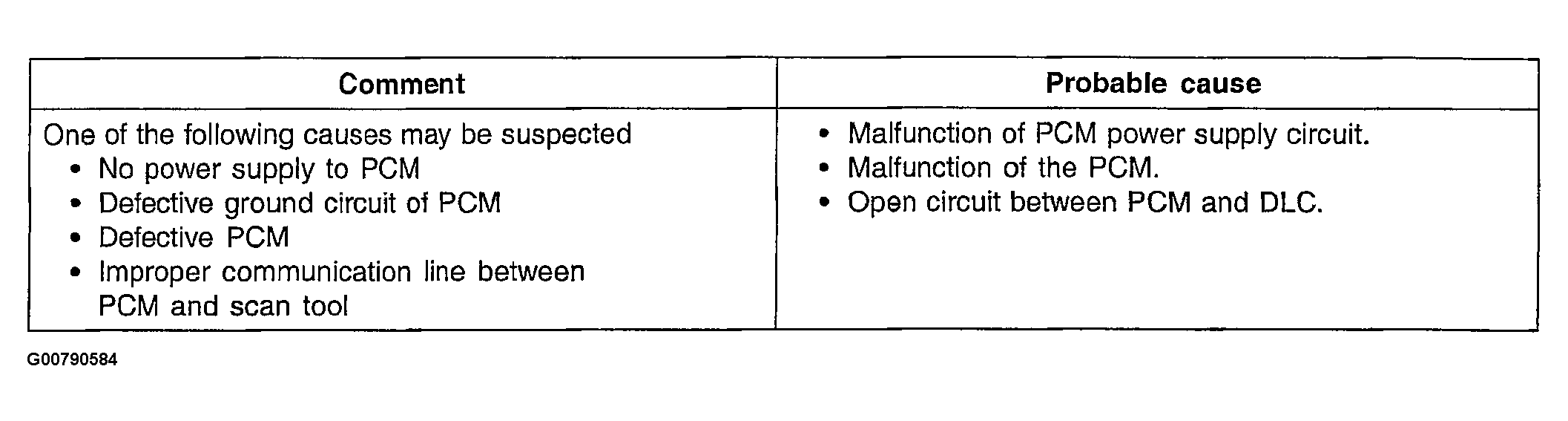

Fig 1: Unable To Communicate With PCM Diagnostic Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
