Trouble Codes (For 2.4L I4)

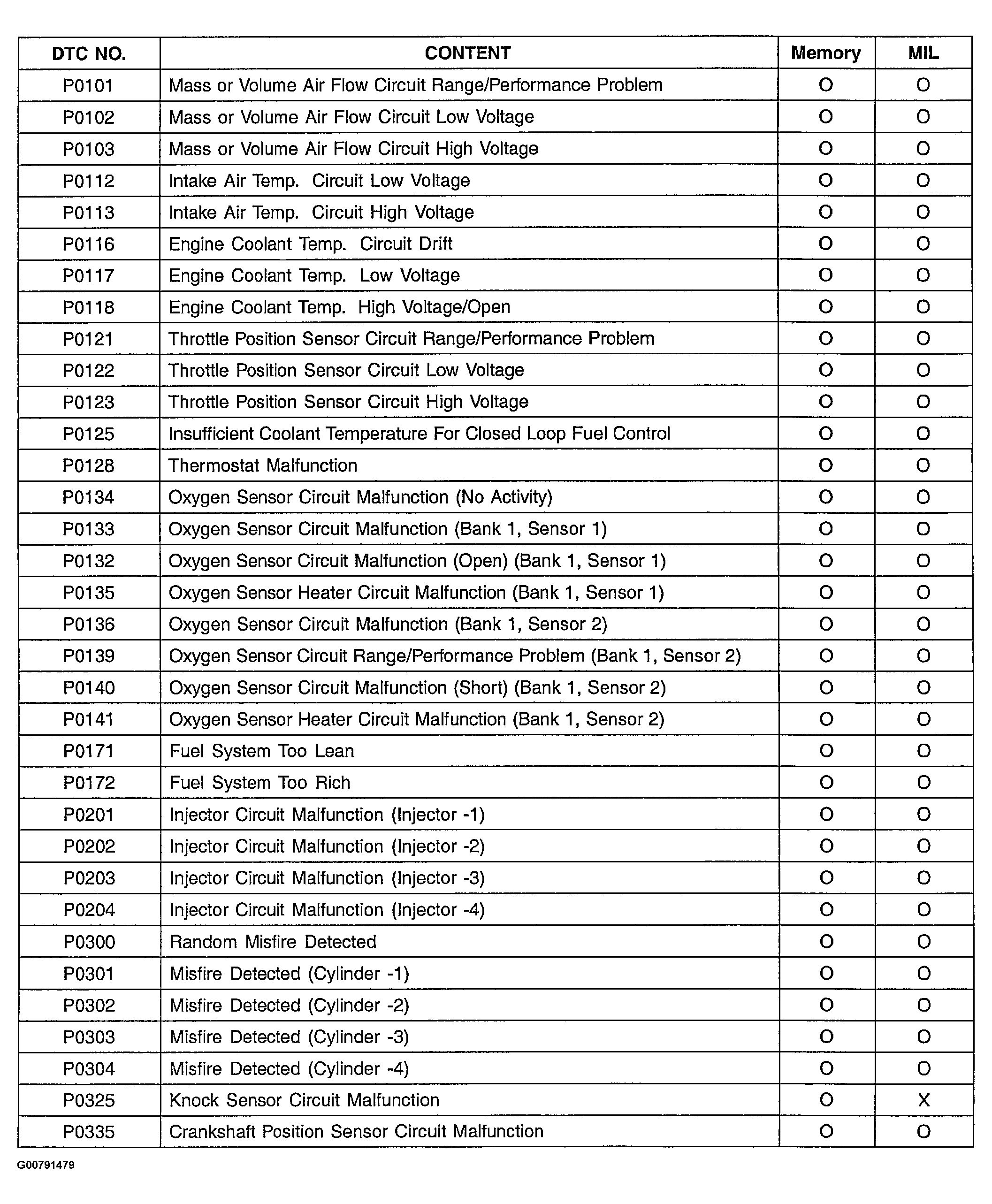

Fig 1: Inspection Chart For Diagnostic Trouble Codes (DTCs P0101-P0335)
G00791479Courtesy of HYUNDAI MOTOR CO.

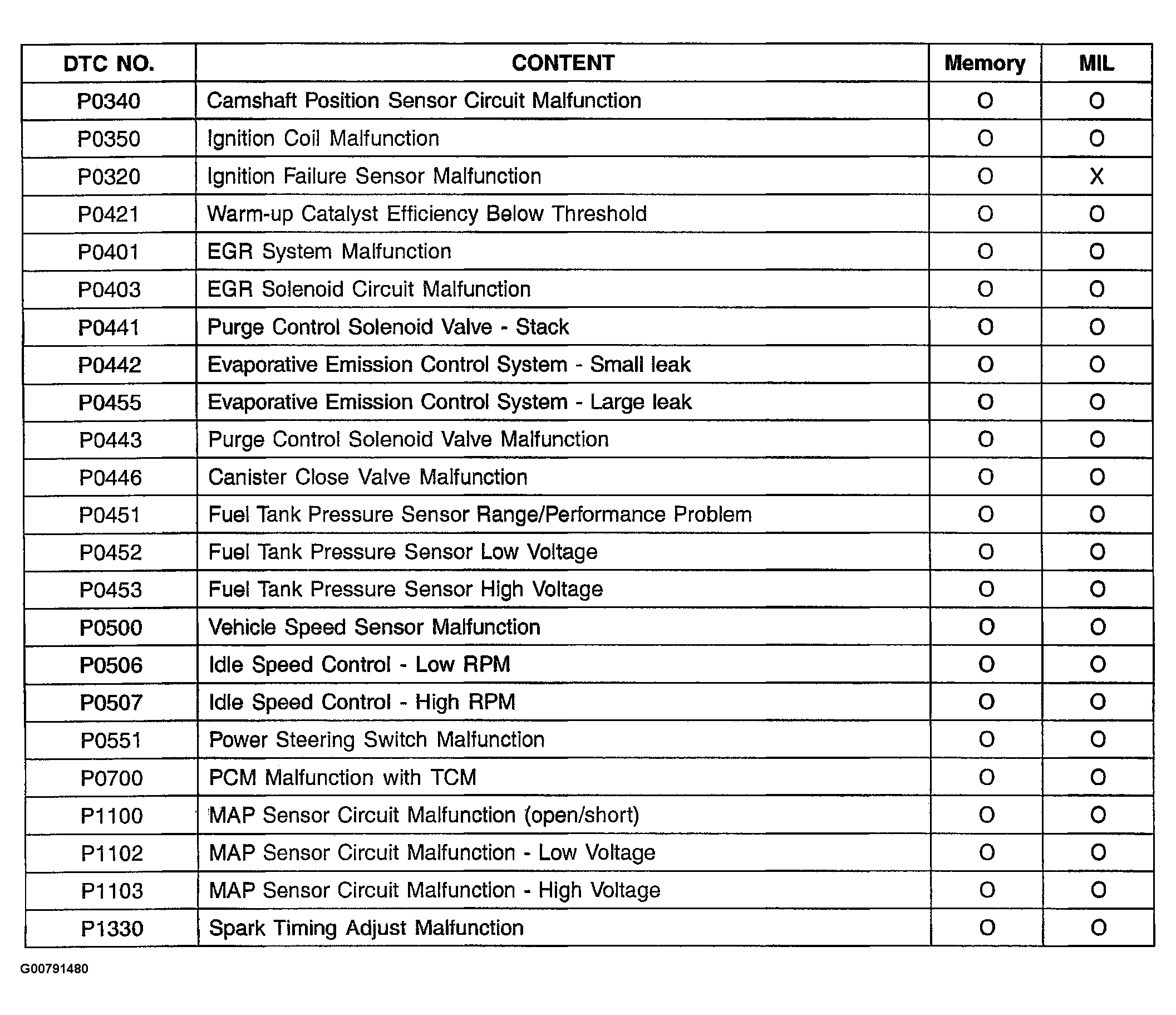

Fig 2: Inspection Chart For Diagnostic Trouble Codes (DTCs P0340-P1330)
G00791480Courtesy of HYUNDAI MOTOR CO.
