Road Test

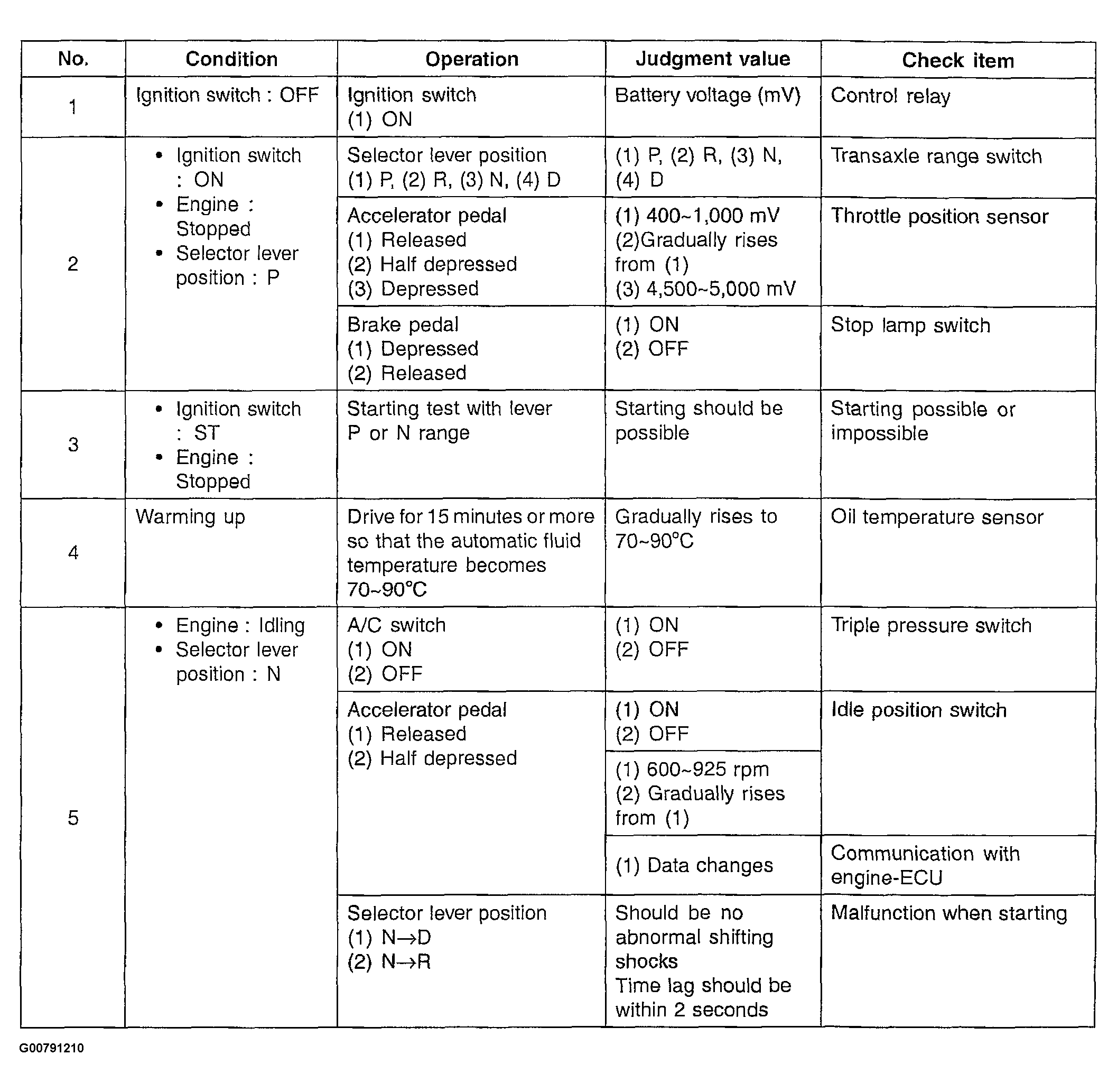

Fig 1: Road Test Table (1 Of 2)
G00791210Courtesy of HYUNDAI MOTOR CO.

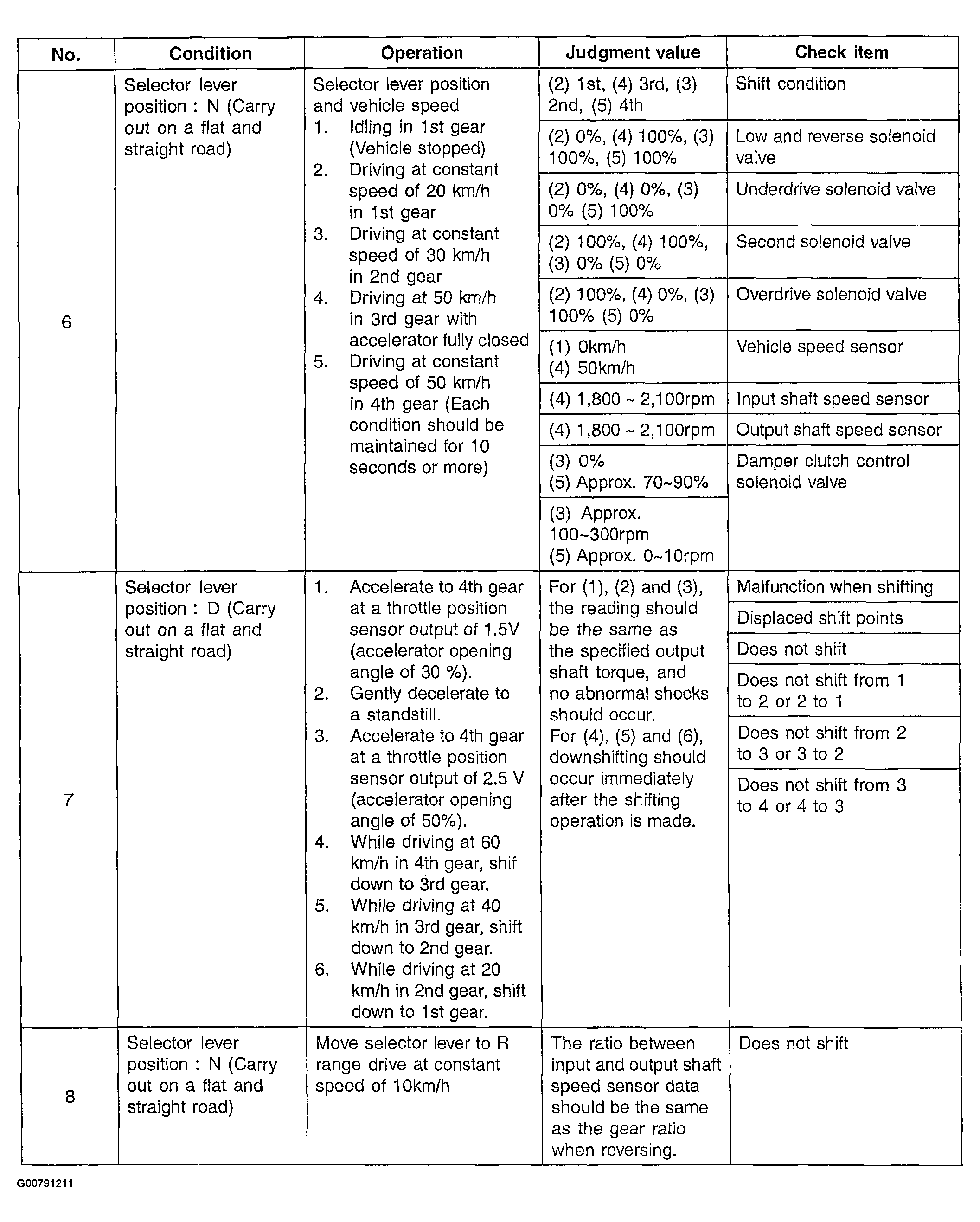

Fig 2: Road Test Table (2 Of 2)
G00791211Courtesy of HYUNDAI MOTOR CO.
