Power Flow Mechanism

Inputted the informations from each sensors in vehicle
- Input torque (Throttle position sensor)
- Cornering situation (Steering angle sensor)
- Vehicle speed and different wheel speed front & rear (Wheel speed sensor)
- Braking situation (Brake signal and ABS signal)
Distributed the required driving force after 4WD ECU operates.

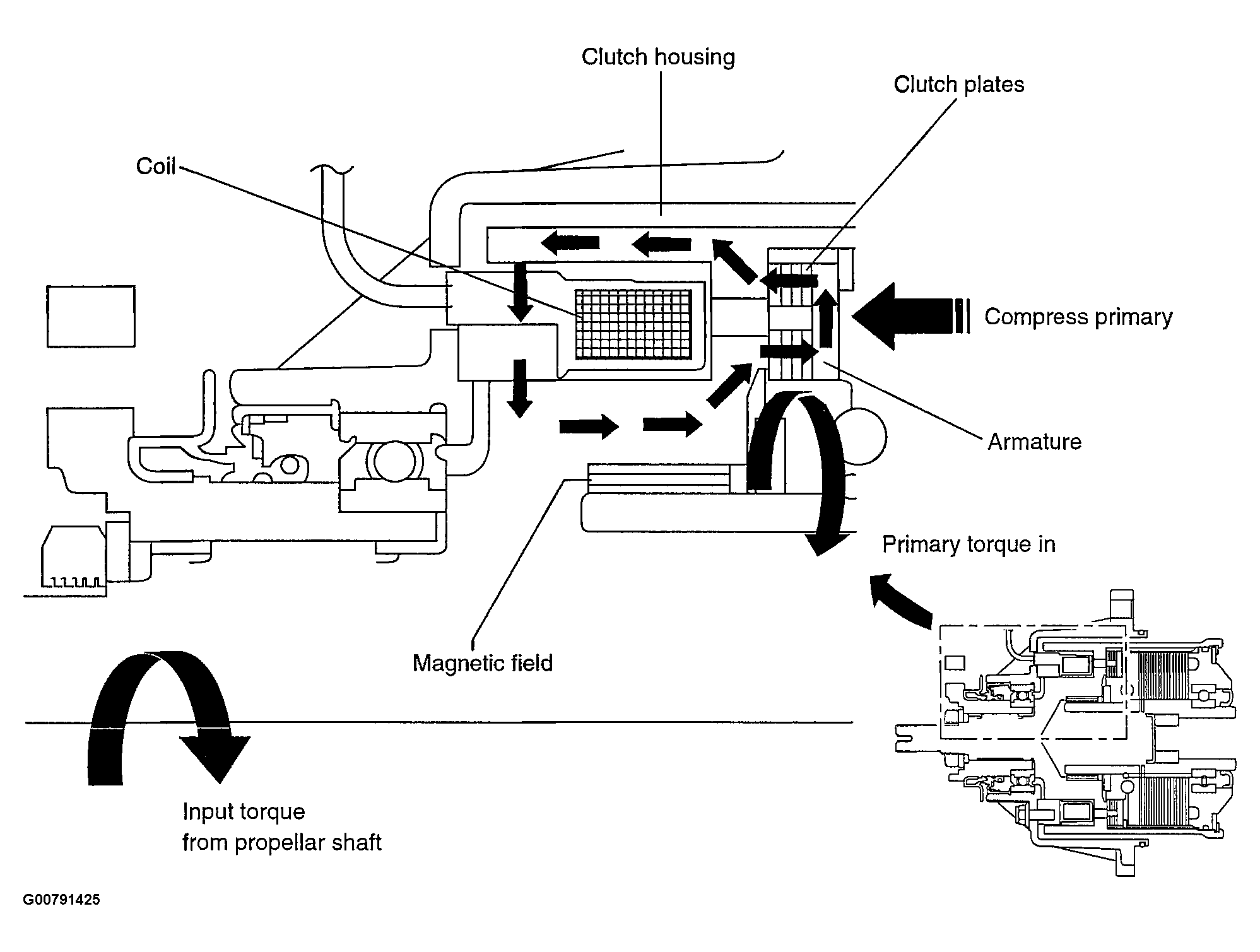

EMC (Electric Magnetic Clutch) operates the primary clutch.

Fig 1: Power Flow (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

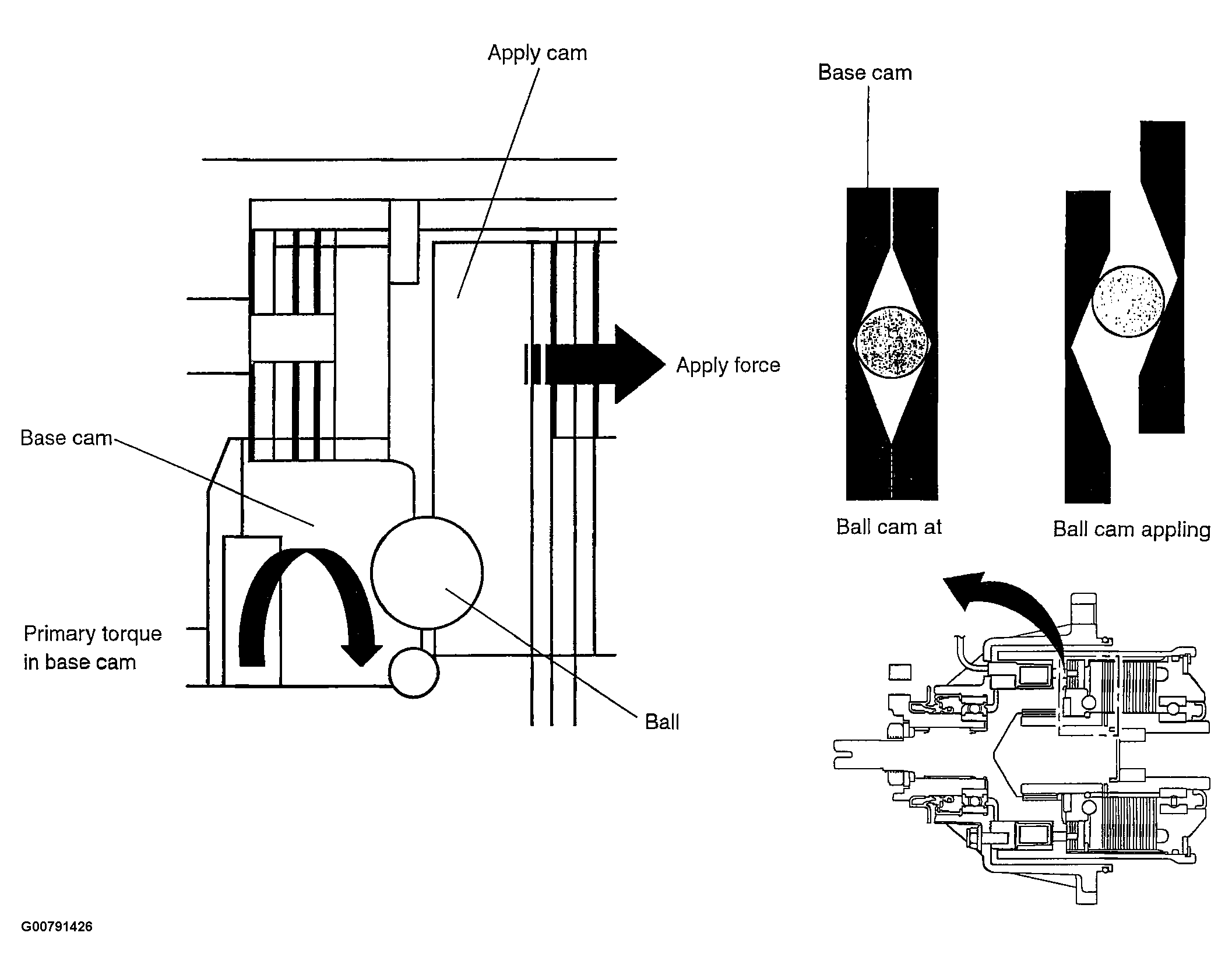

Control the cam's opening gap by operation of primary clutch.

Fig 2: Power Flow (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Control the slip of inner & outer plate.
Control variably the driving force distribution to optimize front & rear driving force.

Fig 3: Power Flow (3 Of 3)

Courtesy of HYUNDAI MOTOR CO.
