DTC P0715: Input Shaft Speed Sensor System (Pulse Generator 'A')

WARNING: This page is about a different variant/trim than selected.

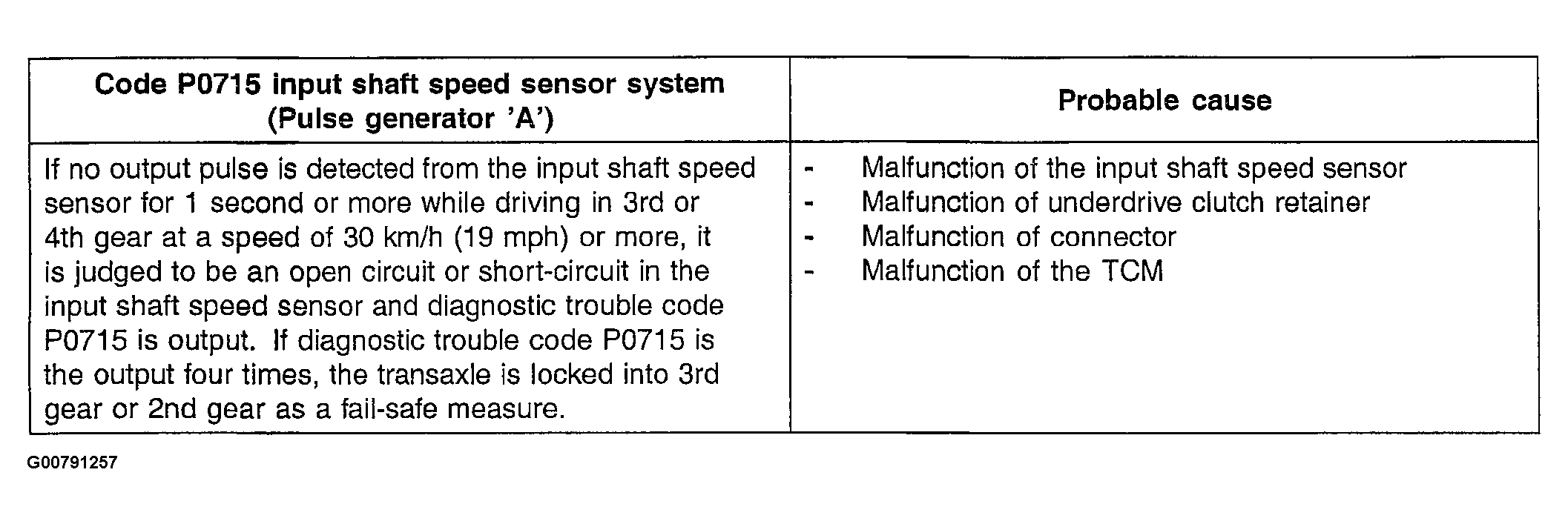

Fig 1: DTC P0715: Input Shaft Speed Sensor System (Pulse Generator 'A') Definitions & Probable Causes

Courtesy of HYUNDAI MOTOR CO.

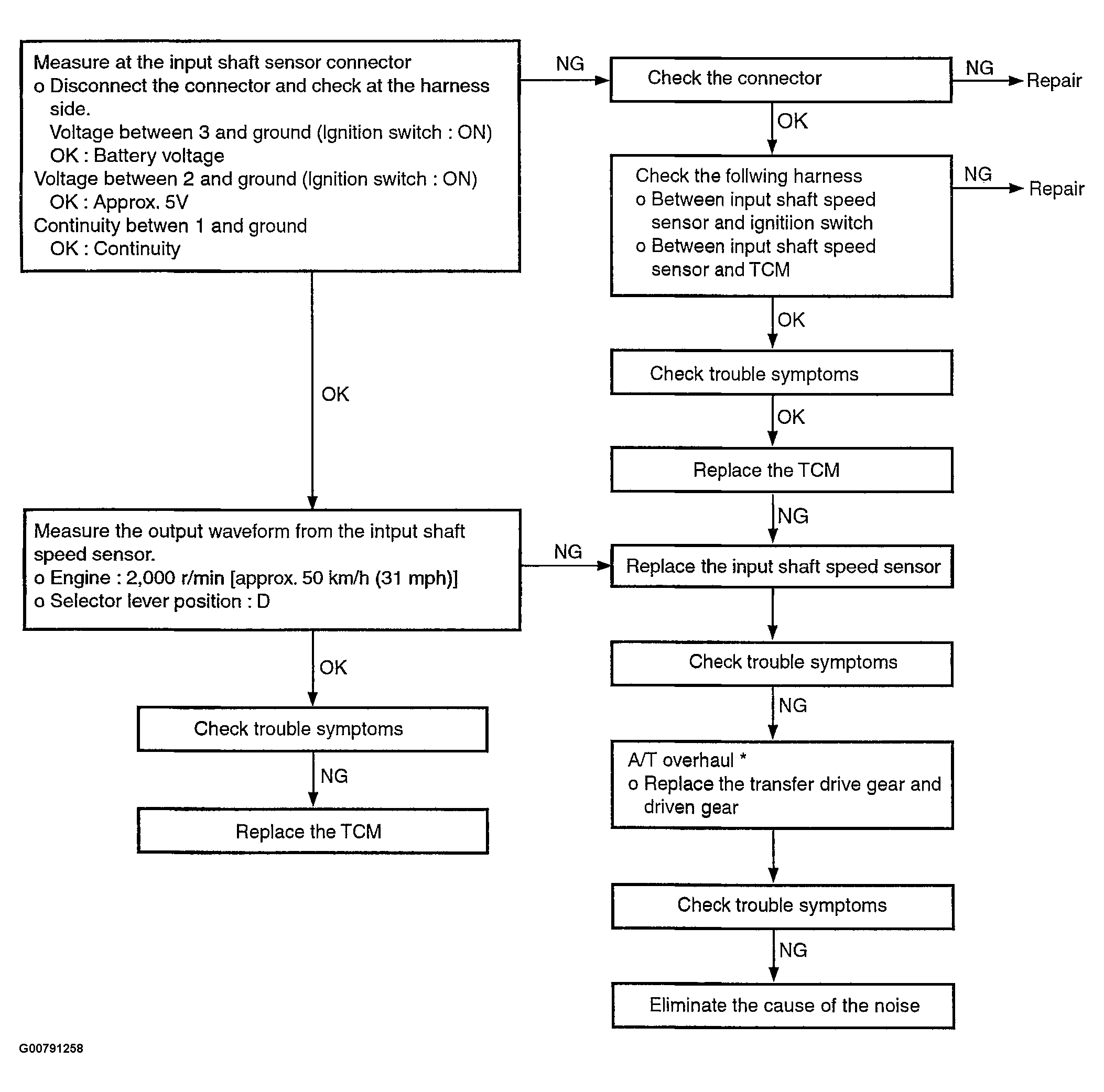

Fig 2: DTC P0715: Input Shaft Speed Sensor System (Pulse Generator 'A') Diagnostic Flow Chart

Courtesy of HYUNDAI MOTOR CO.
