Manual Transaxle System: General: LUBRICATIONS

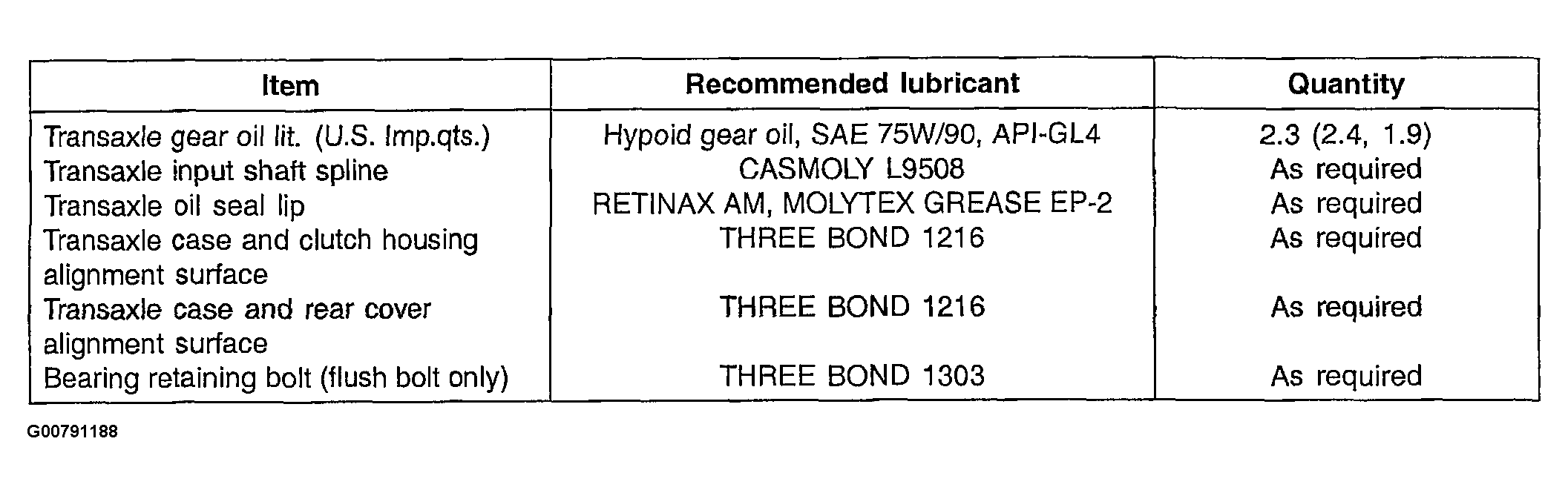

Fig 1: Lubrications Table
G00791188Courtesy of HYUNDAI MOTOR CO.
