Problem Chart (M/T)

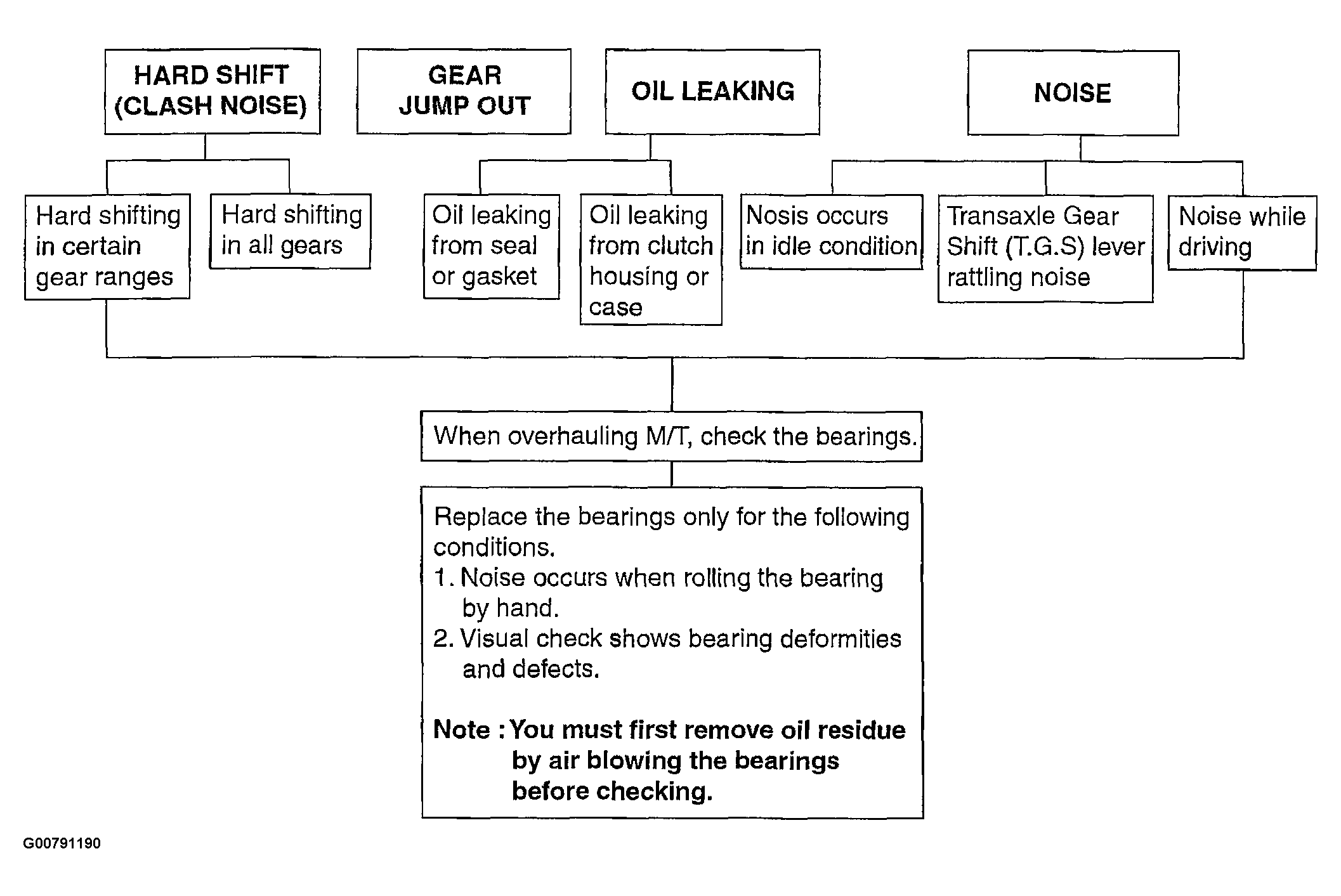

Fig 1: Problem Flow Chart (M/T)

G00791190

Courtesy of HYUNDAI MOTOR CO.

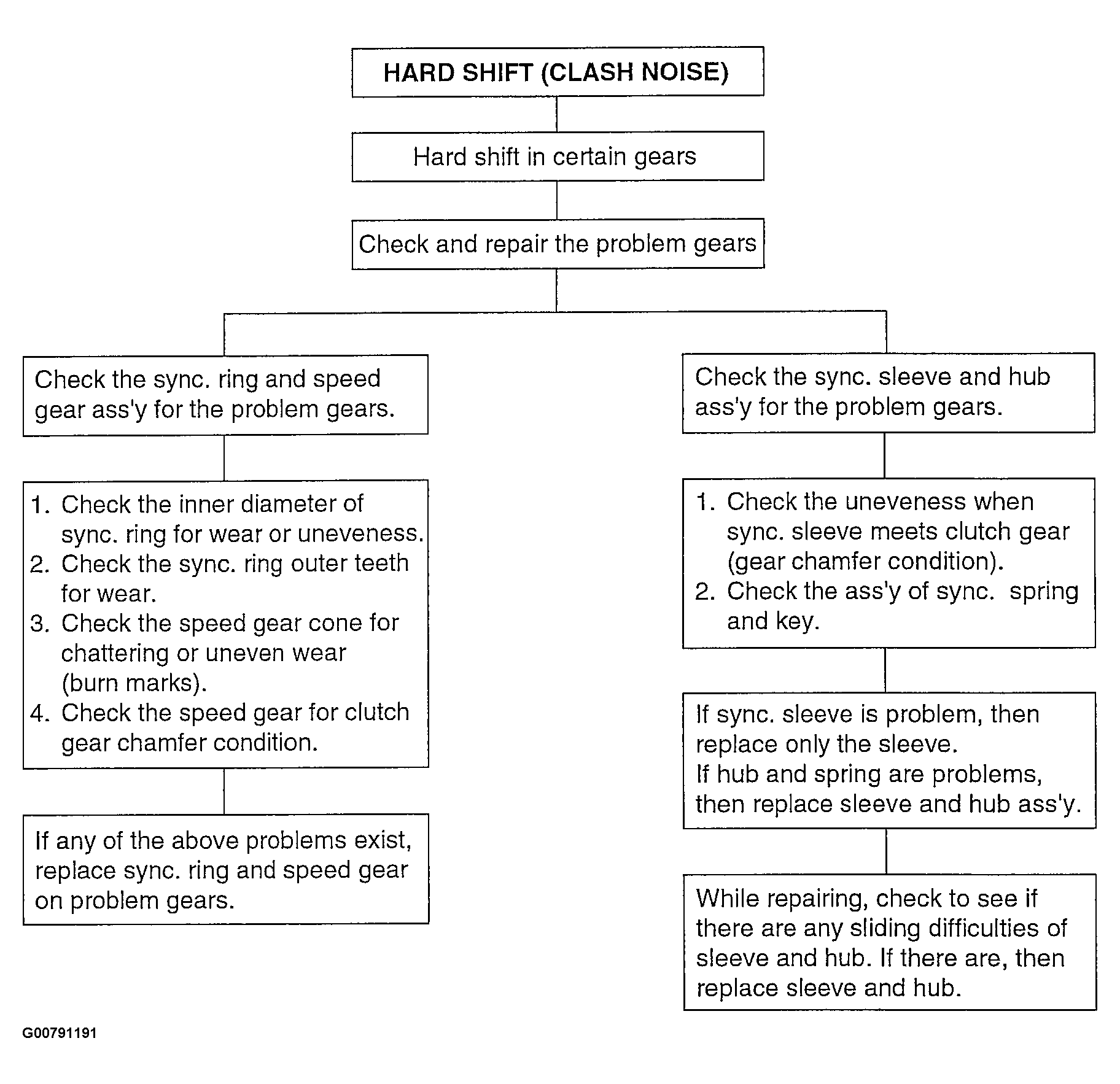

Fig 2: Hard Shift (Clash Noise) Flow Chart

G00791191

Courtesy of HYUNDAI MOTOR CO.

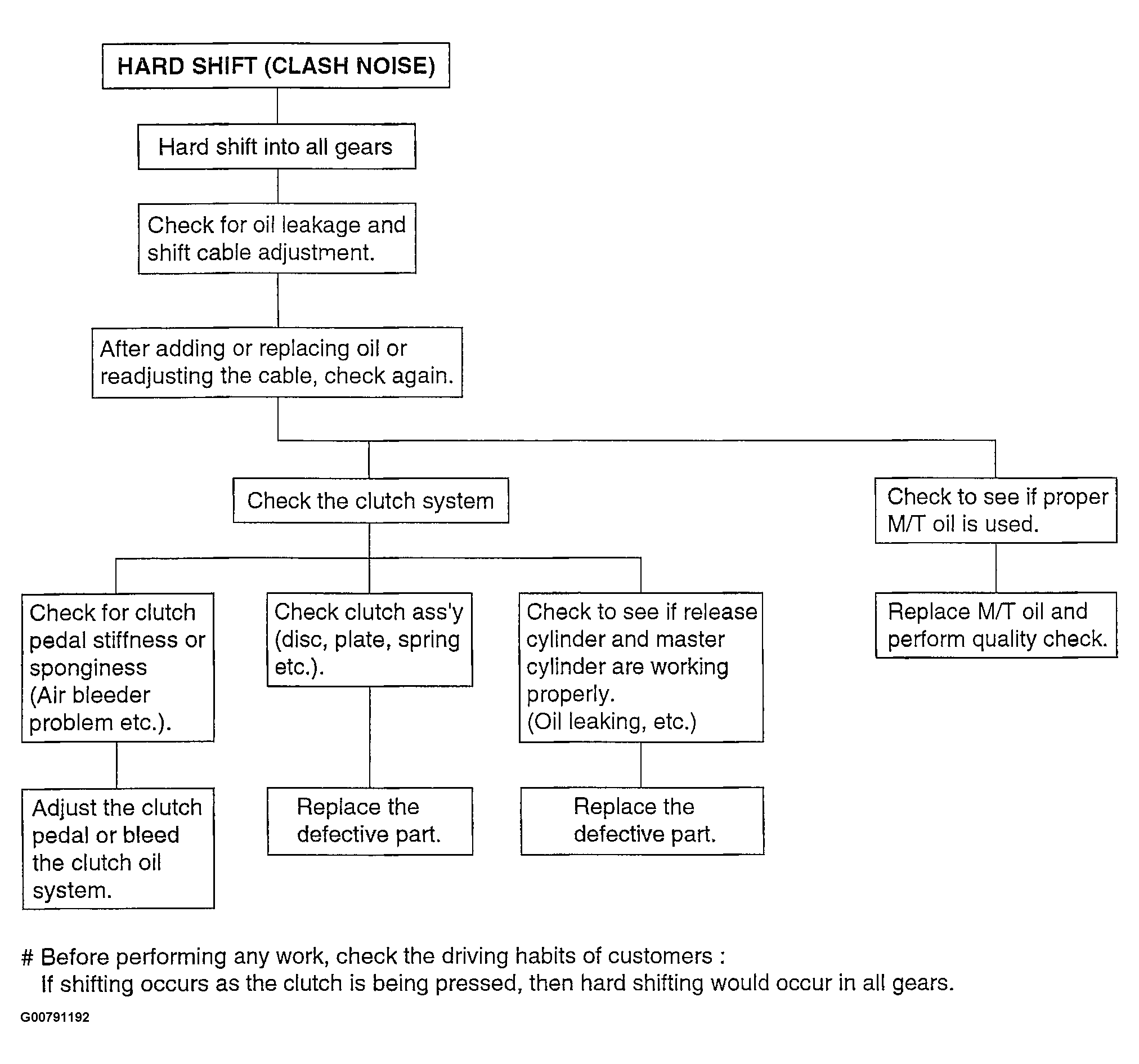

Fig 3: Hard Shift (Clash Noise) Flow Chart

G00791192

Courtesy of HYUNDAI MOTOR CO.

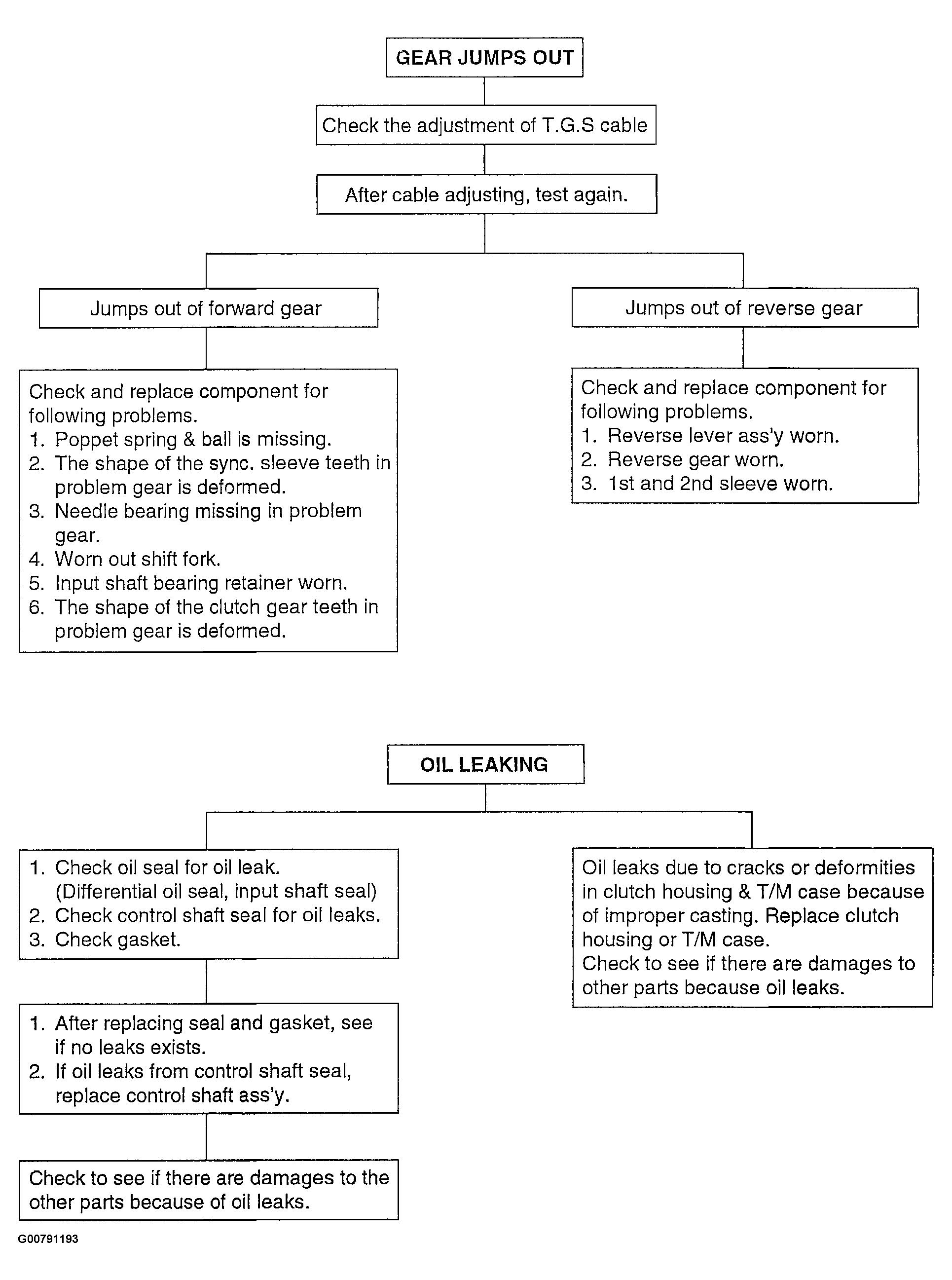

Fig 4: Gear Jumps Out & Oil Leaking Flow Chart

G00791193

Courtesy of HYUNDAI MOTOR CO.

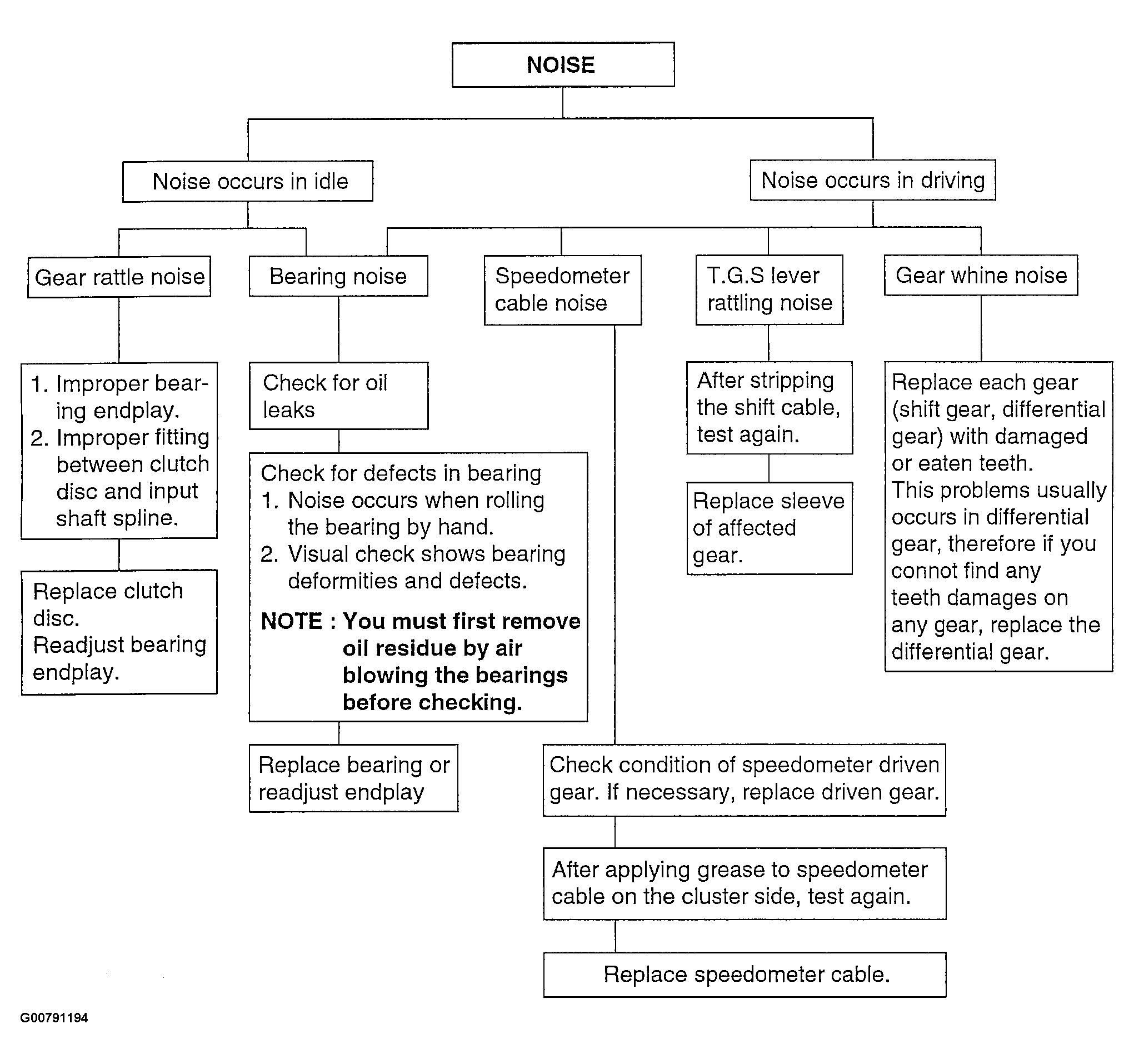

Fig 5: Noise Flow Chart

G00791194

Courtesy of HYUNDAI MOTOR CO.
