Tightening Torque

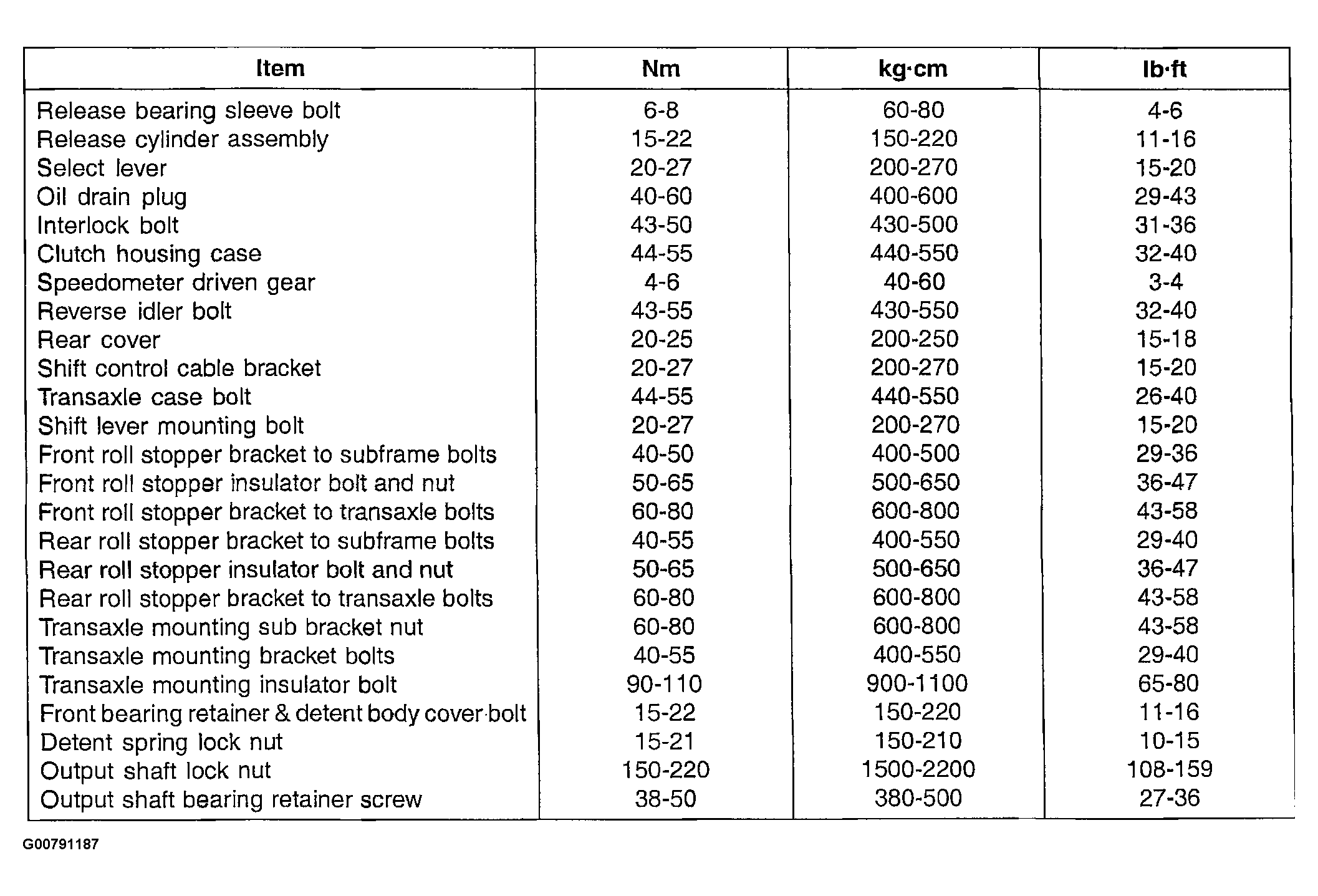

Fig 1: Tightening Torque Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
