Accelerator Pedal: Components

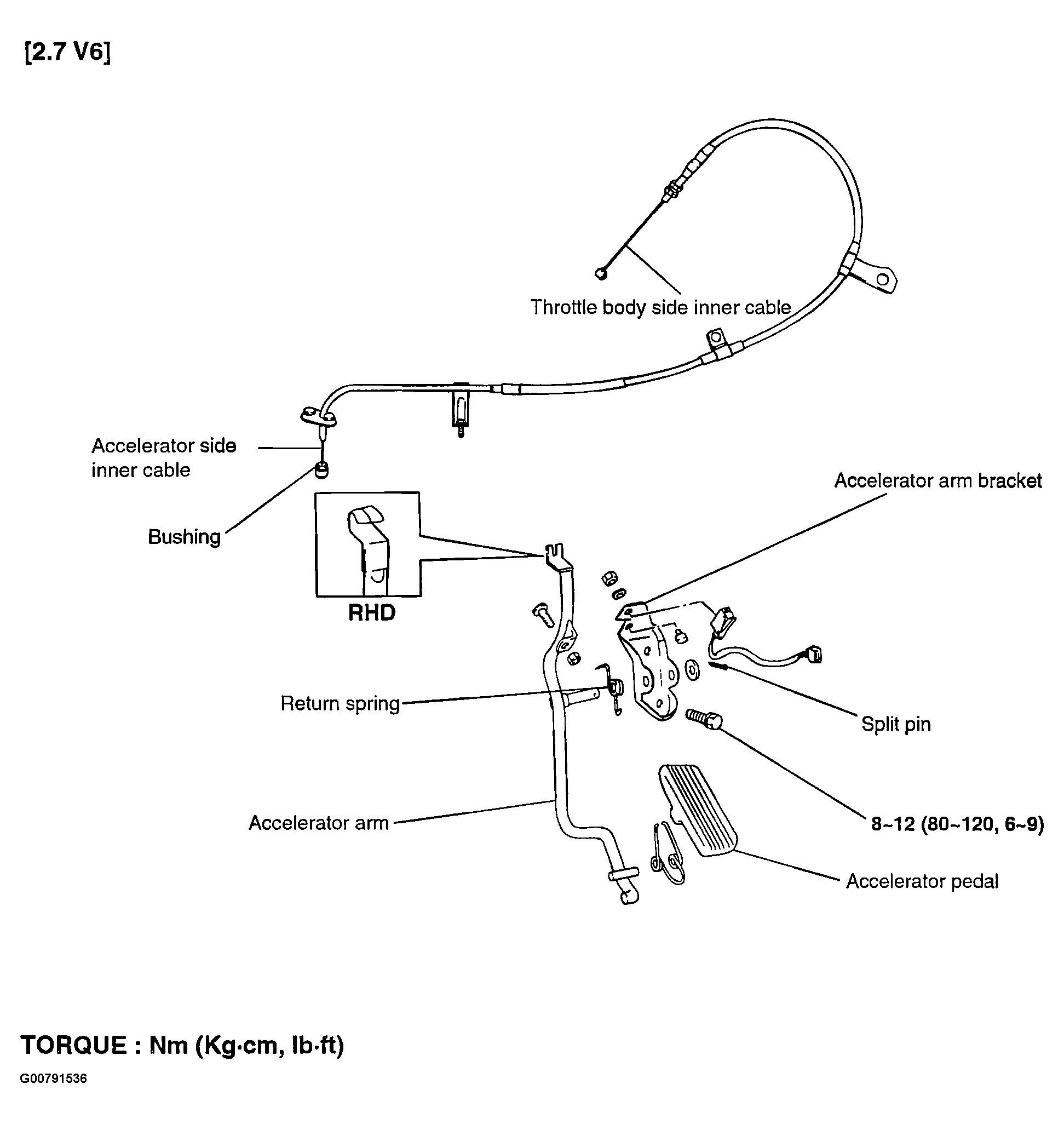

Fig 1: Accelerator Pedal Components (2.7L)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
