Transfer Case Assembly
>>
Transfer Case
>>
System Description
>>
Outside View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Outside View

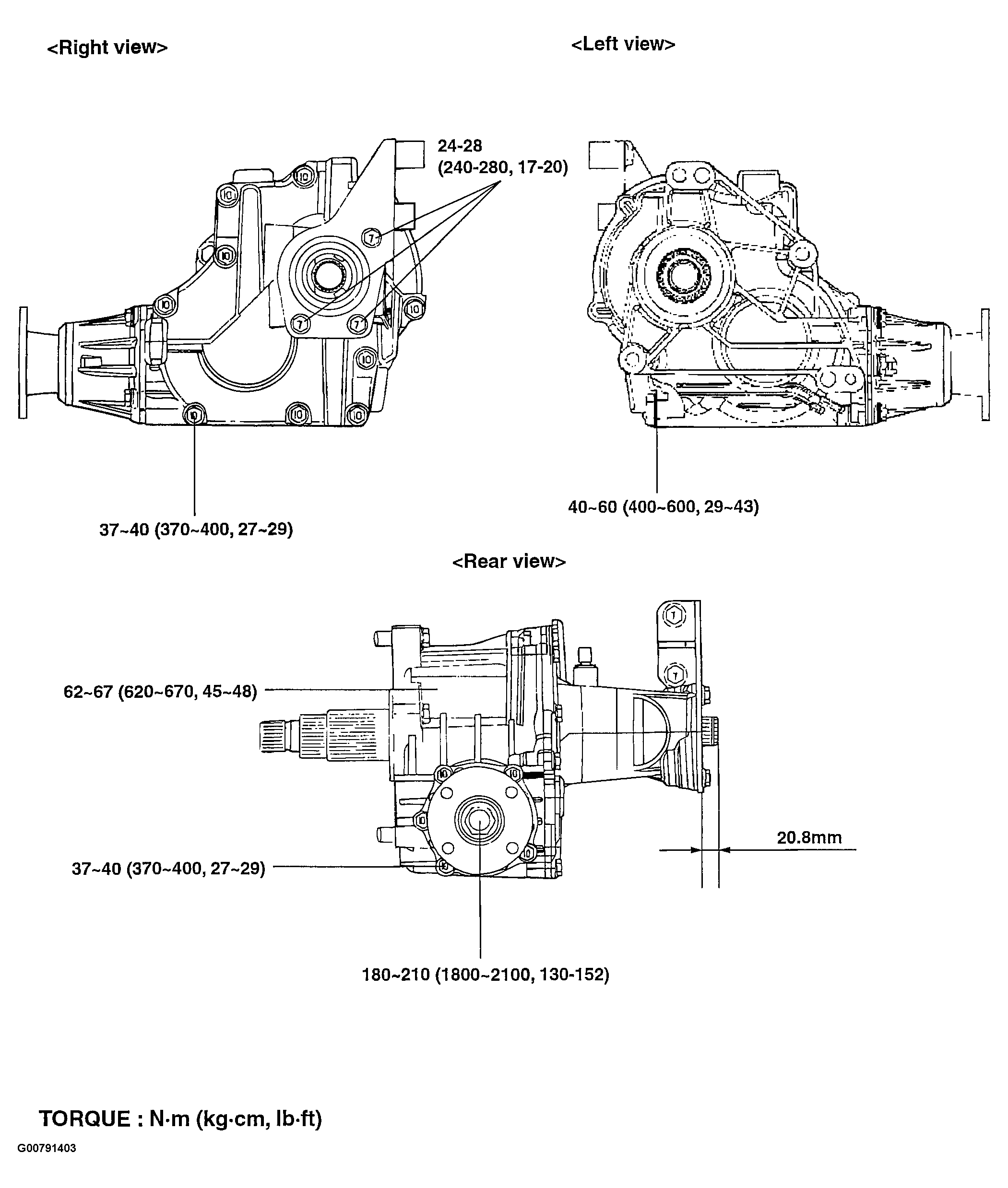

Fig 1: Outside View
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
