Fuel Line: Installation

  1. Install a new grommet and O-ring to the injector.
  2. Apply a coating of solvent, spindle oil or gasoline to the injector O-ring.

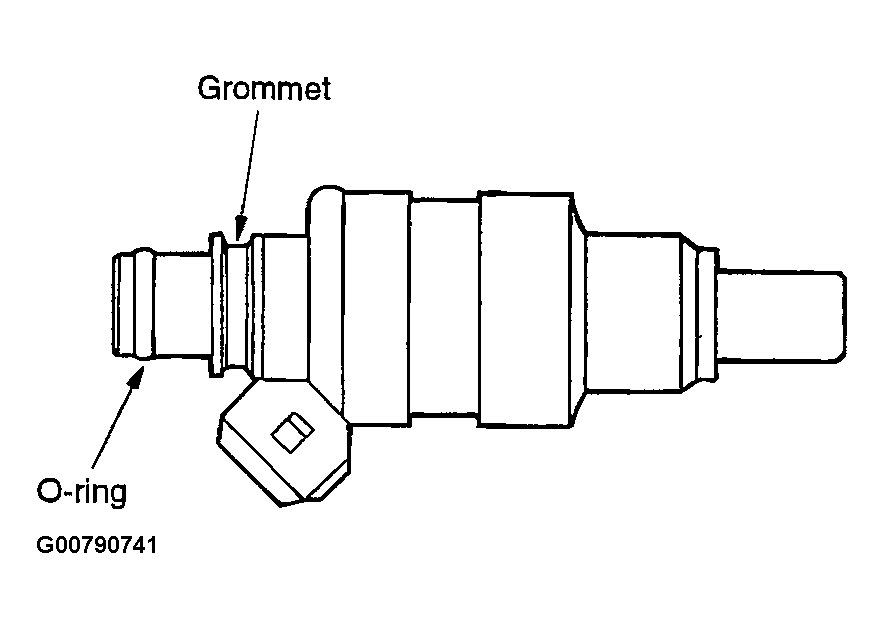

    Fig 1: Identifying Injector Grommet & O-Ring
    G00790741Courtesy of HYUNDAI MOTOR CO.
  3. While turning the injector left and right, install it onto the delivery pipe.
  4. Be sure the injector turns smoothly.
    NOTE: If injector does not turn smoothly, the O-ring may be jammed. Remove the injector and re-insert it into the delivery pipe and re-check.

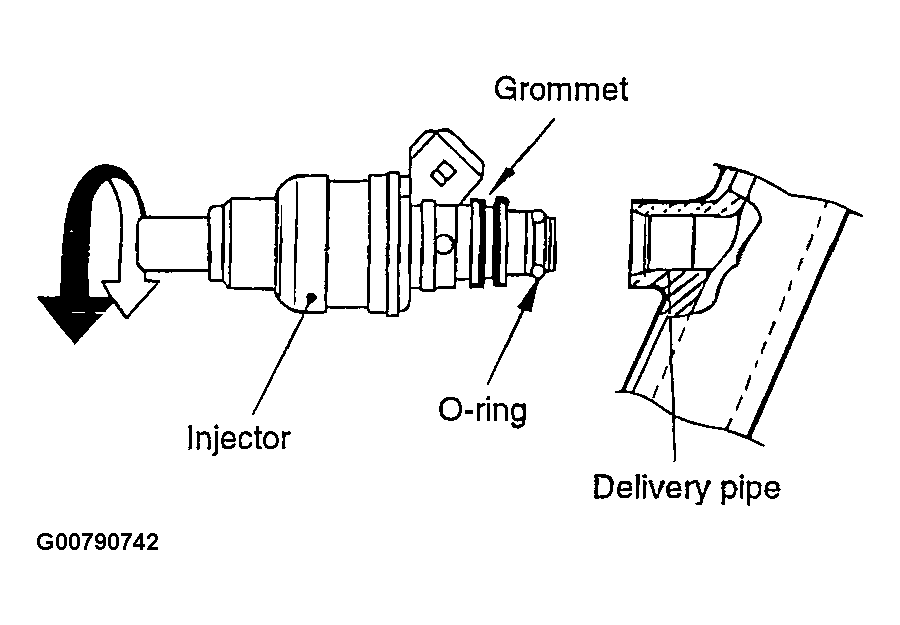

    Fig 2: View Of Injector & Delivery Pipe
    G00790742Courtesy of HYUNDAI MOTOR CO.
