Fuel Tank: Inspection

  1. Check the hoses and the pipes for cracks or damage.
  2. Check the fuel tank cap for proper operation.
  3. Check the fuel tank for deformation, corrosion or cracking.
  4. Check the fuel tank inside for dirt or contamination.
  5. Check the in-tank fuel filter for damage or restriction.
  6. Test the two-way valve for proper operation.
  7. Using a vacuum hand pump, check the operation of the two-way valve.

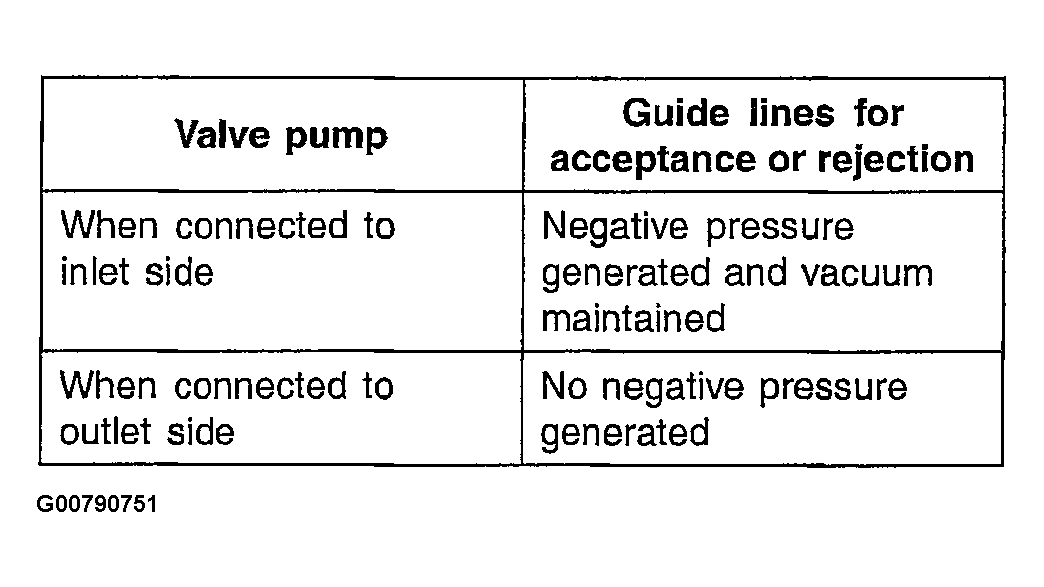

Fig 1: Checking Two-Way Valve Table
G00790751Courtesy of HYUNDAI MOTOR CO.

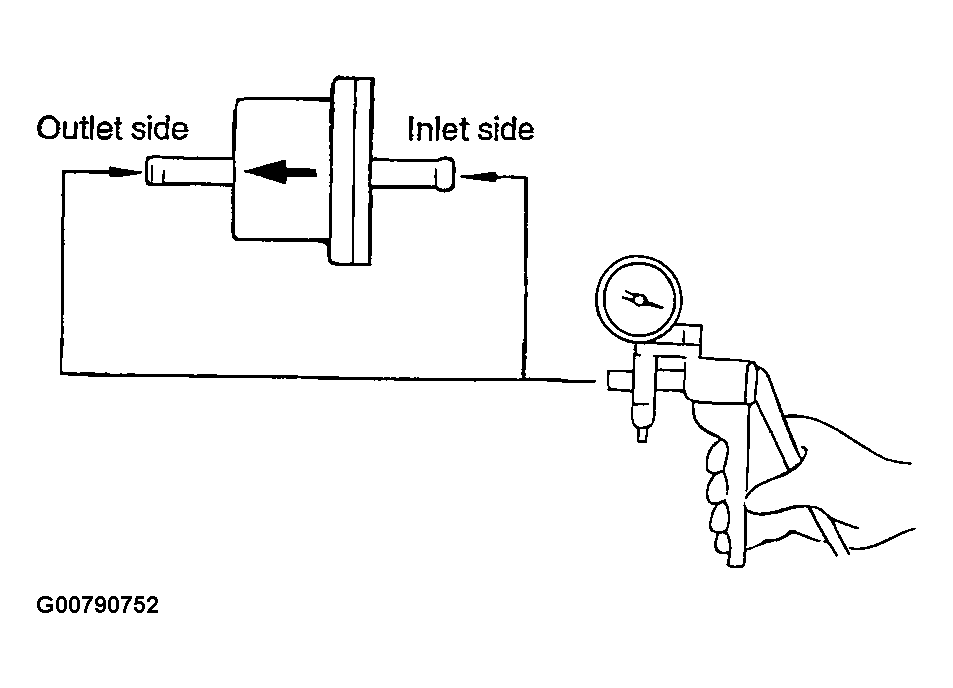

Fig 2: Checking Two-Way Valve
G00790752Courtesy of HYUNDAI MOTOR CO.
