Location Of MFI Components

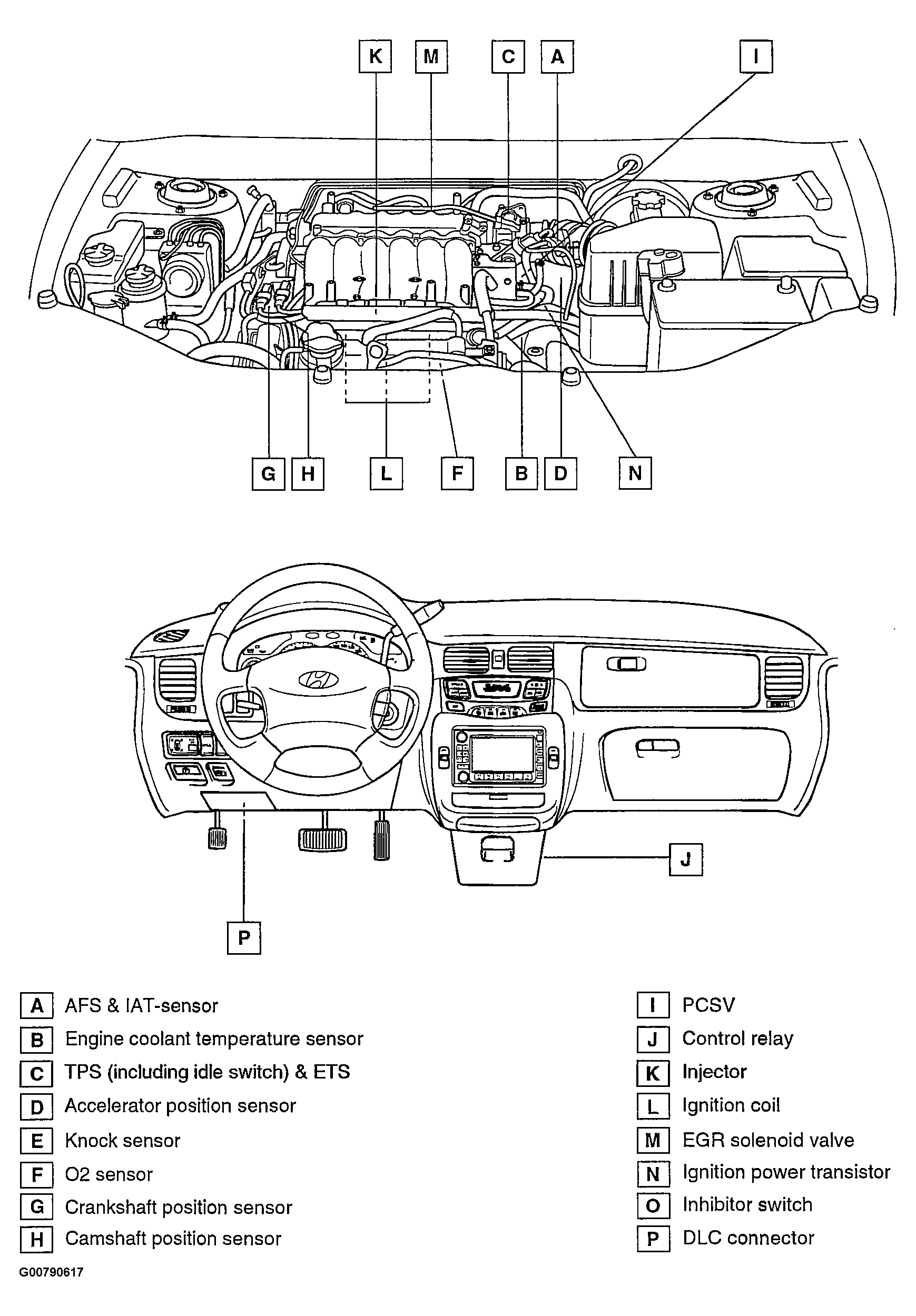

Fig 1: Location Of MFI Components (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

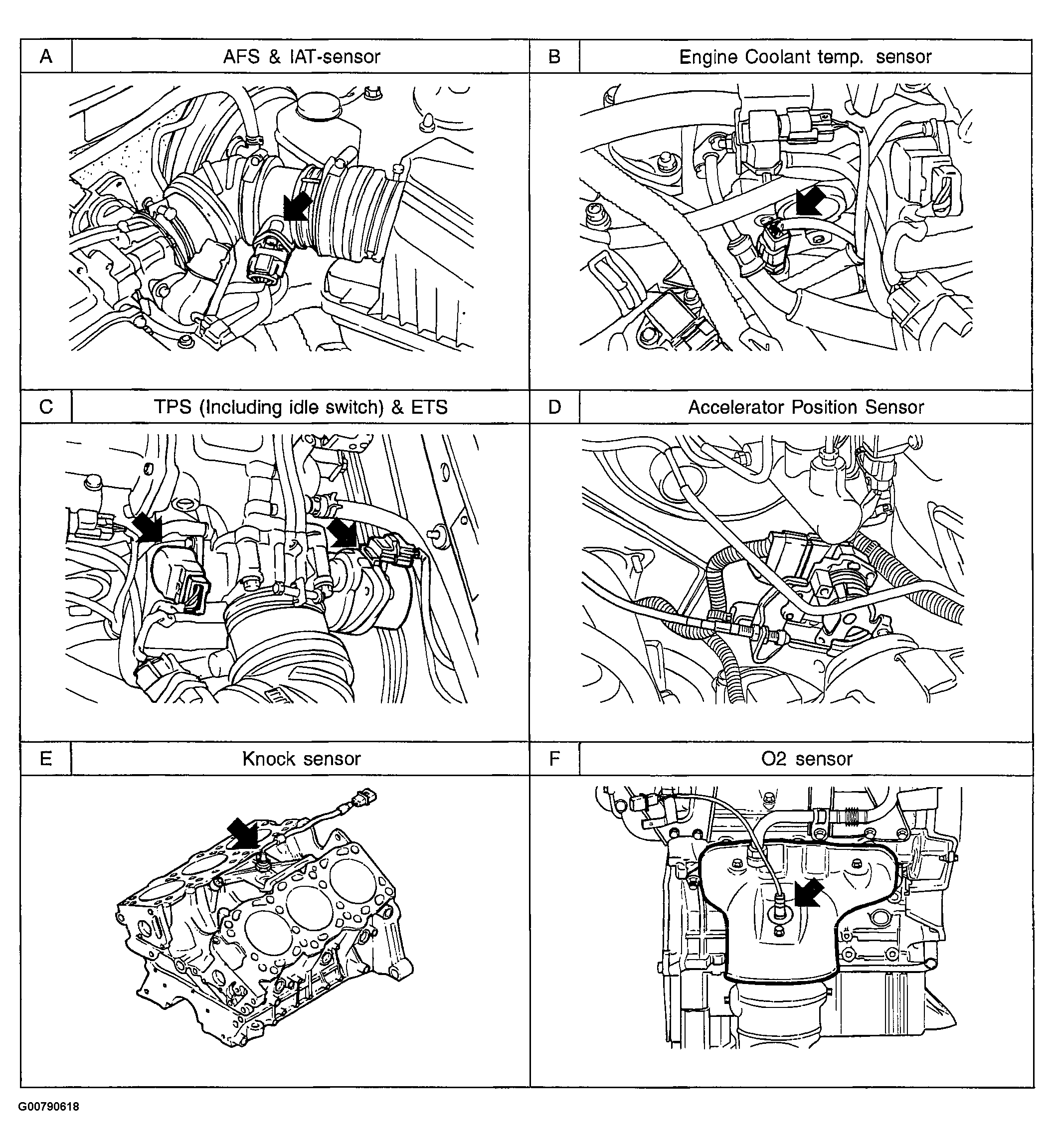

Fig 2: Location Of MFI Components (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

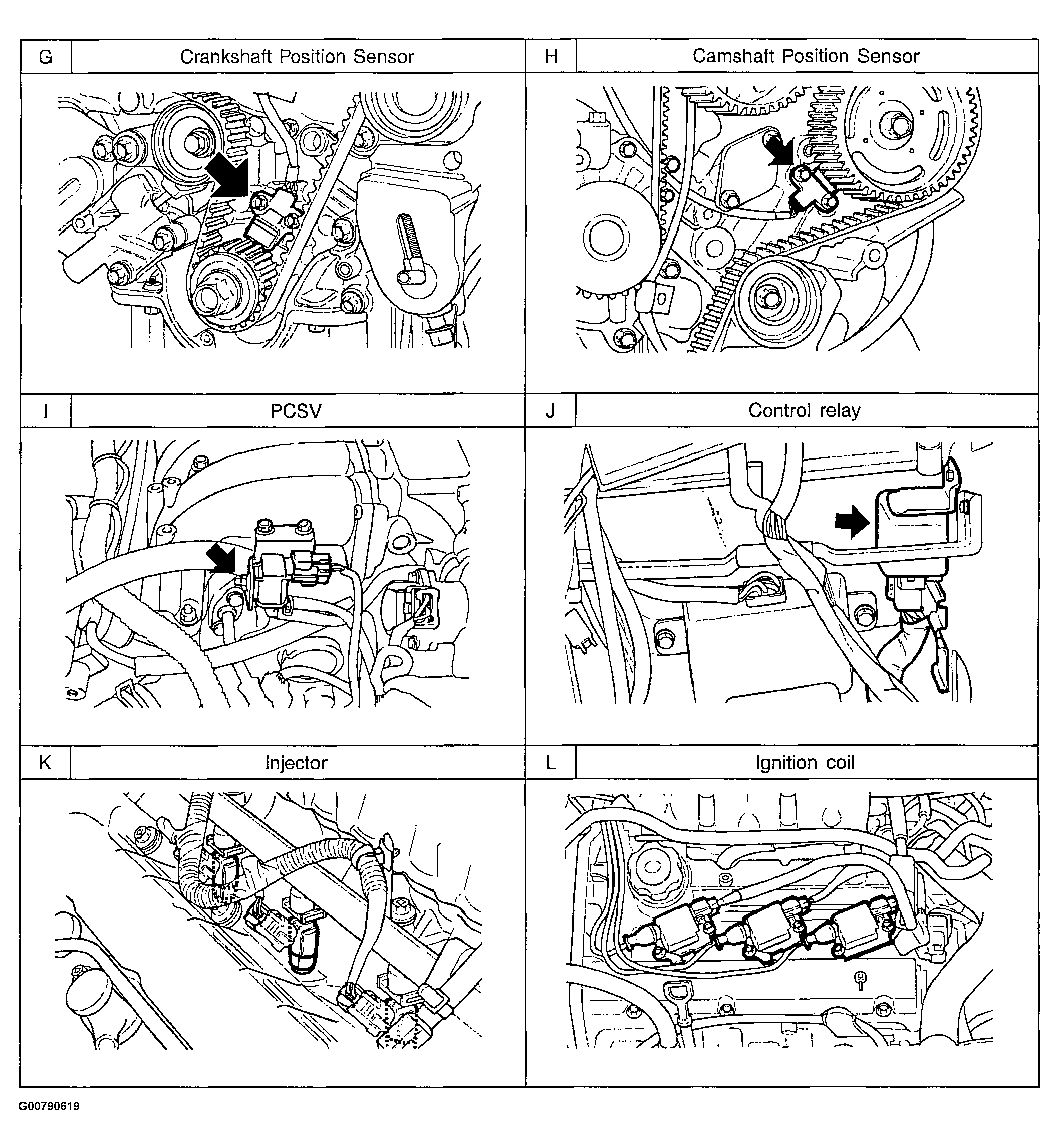

Fig 3: Location Of MFI Components (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

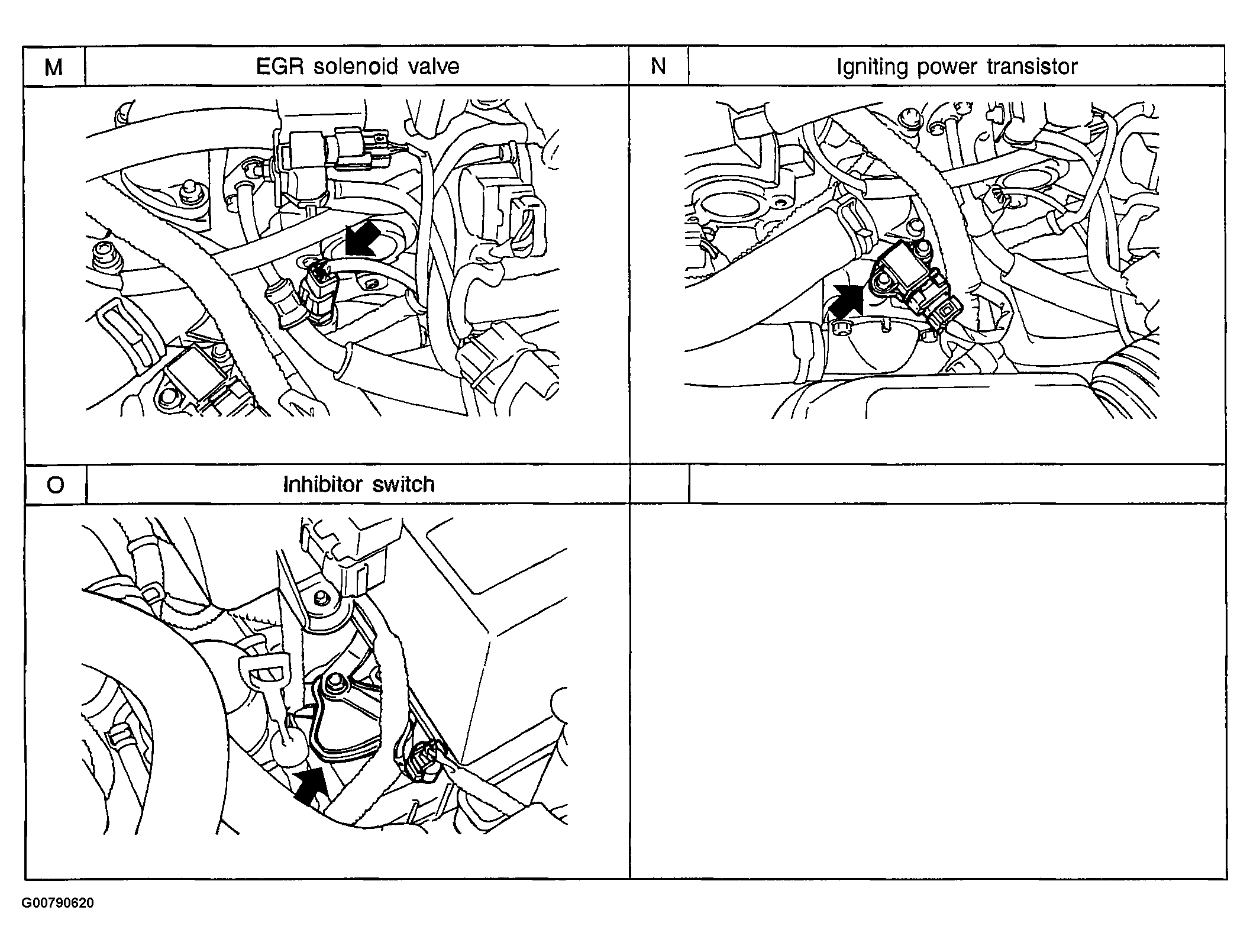

Fig 4: Location Of MFI Components (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
