Using Voltmeter

Disconnect the APS connector.
Check the continuity between terminal 4 and sensor ground.

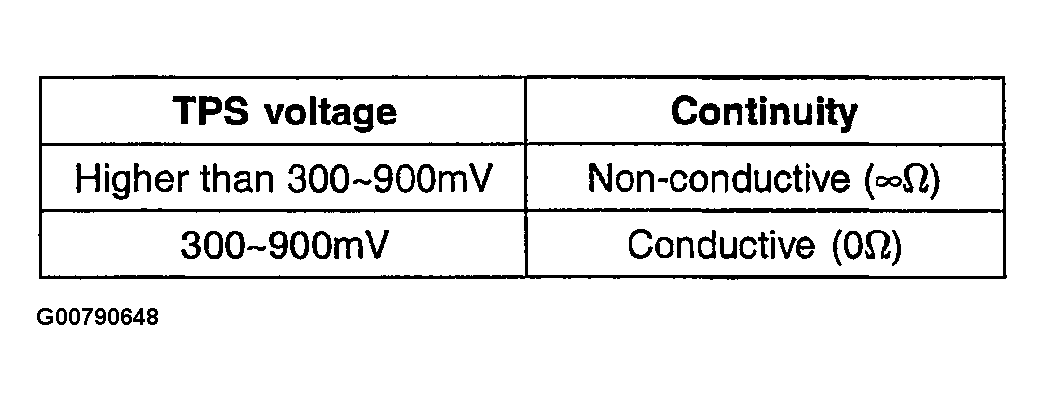

Fig 1: Accelerator Position Sensor Checking Table
Courtesy of HYUNDAI MOTOR CO.
If out of specification, replace the throttle position sensor.

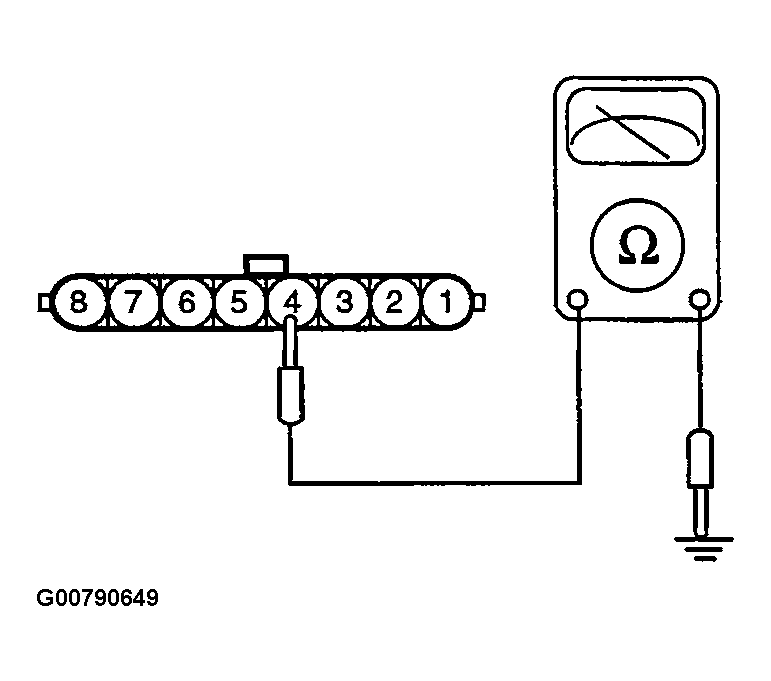

Fig 2: Checking Accelerator Position Sensor
Courtesy of HYUNDAI MOTOR CO.
