Circuit Diagram

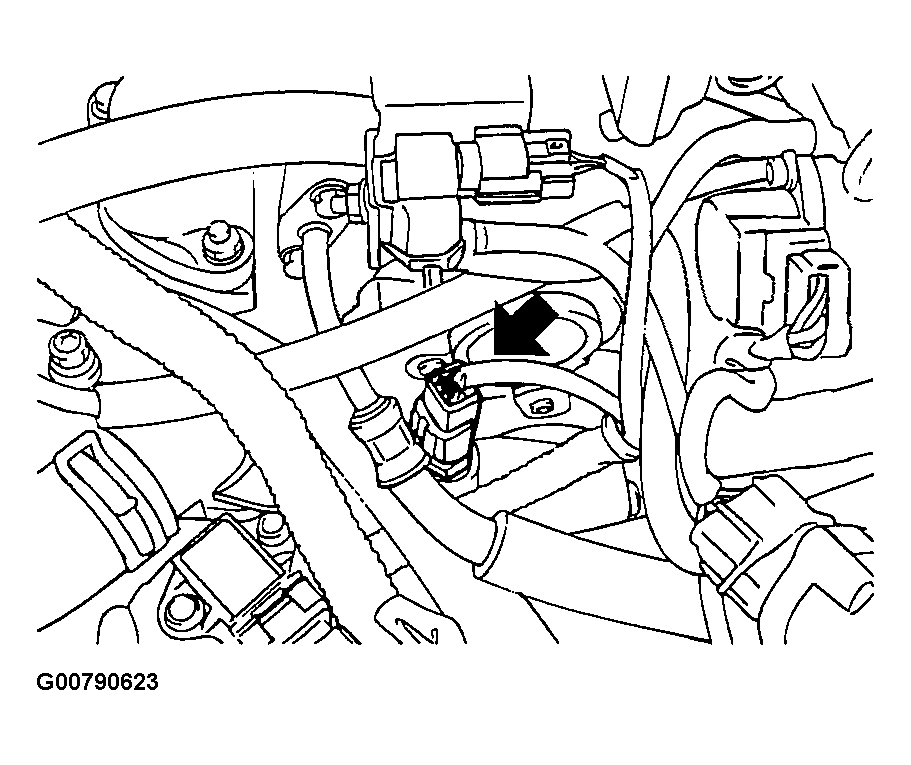

Fig 1: Identifying ECT
Courtesy of HYUNDAI MOTOR CO.

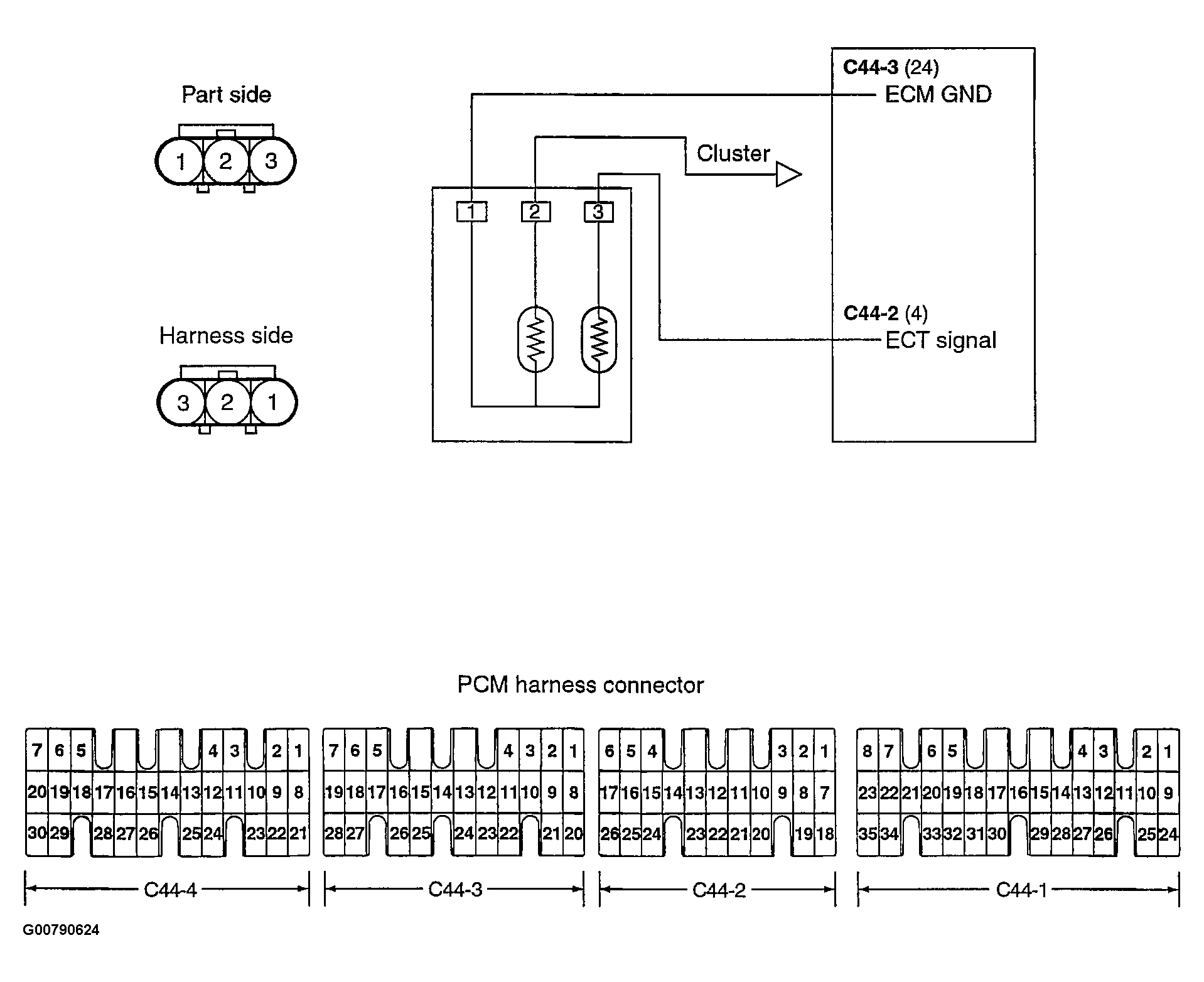

Fig 2: ECT Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
