Using Hi-Scan (Pro)

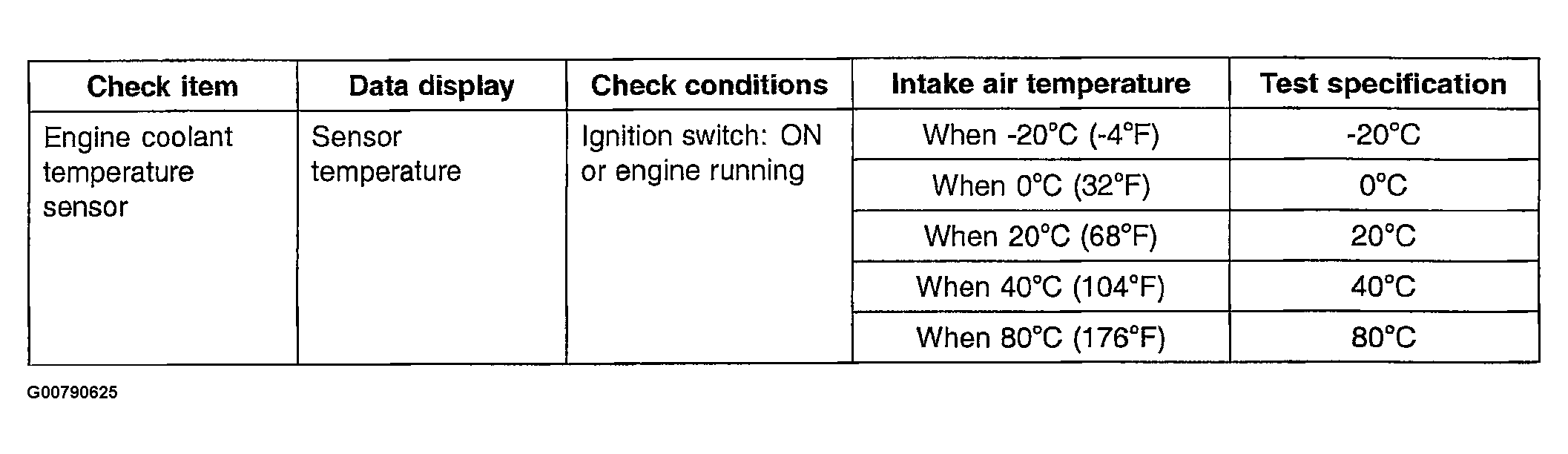

Fig 1: ECT Sensor Check Item Table Using Hi-Scan (Pro)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
