Harness Inspection Procedures

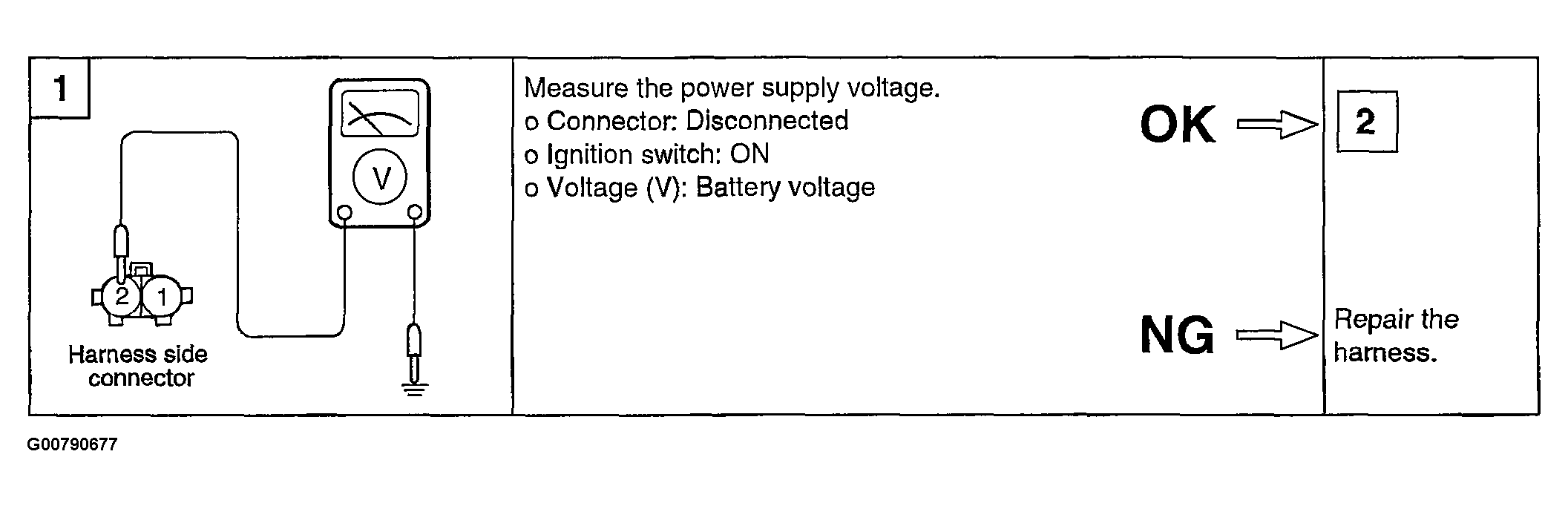

Fig 1: Harness Inspection Procedure (1 Of 2)
G00790677Courtesy of HYUNDAI MOTOR CO.

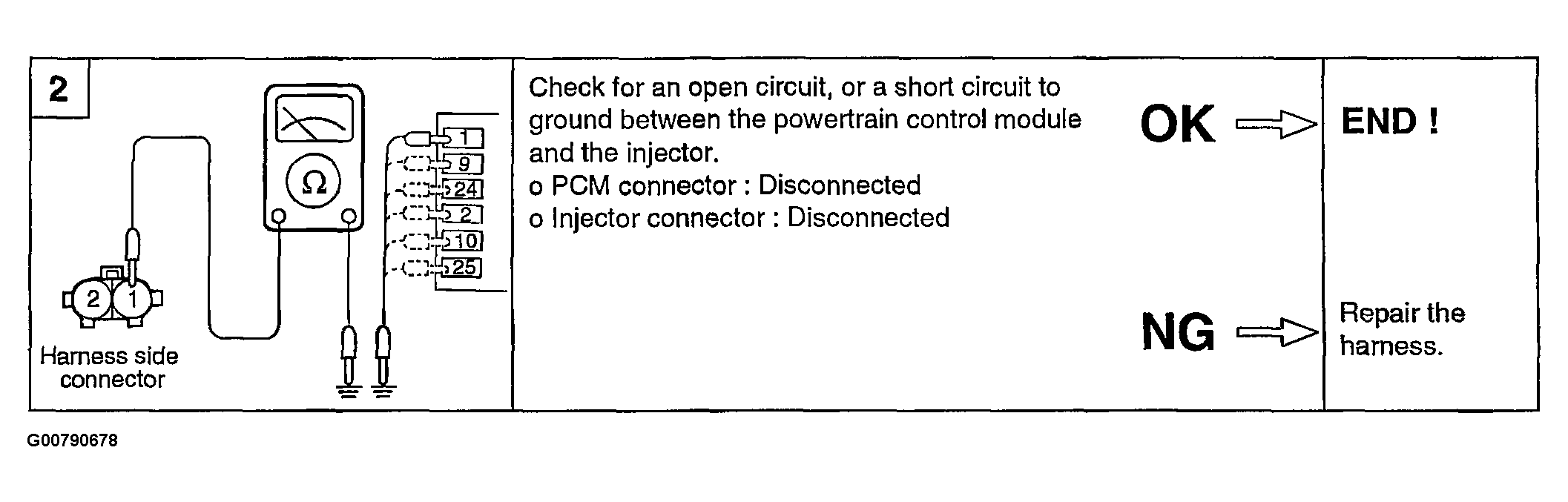

Fig 2: Harness Inspection Procedure (2 Of 2)
G00790678Courtesy of HYUNDAI MOTOR CO.
