Using Hi-Scan

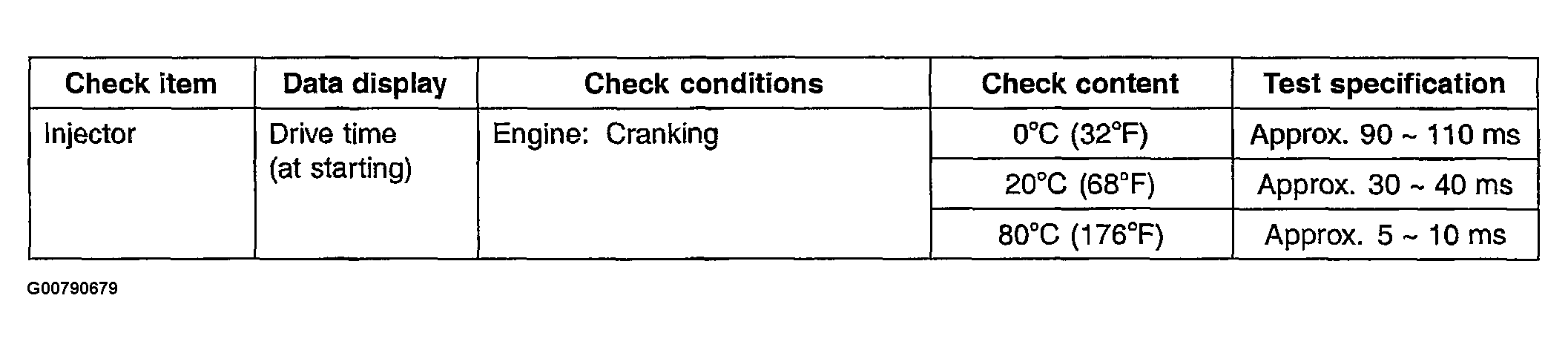

Fig 1: Injector Check Item Table (1 Of 3)

Courtesy of HYUNDAI MOTOR CO.

NOTE: Drive time indicates the injector activation time when the supply voltage is 11V and the cranking speed is less than 250 rpm.

Fig 2: Injector Check Item Table (2 Of 3)

Courtesy of HYUNDAI MOTOR CO.

NOTE:

When the vehicle is new (within initial operation of about 500 km (300 miles)), the injector drive time may be about 10% longer.

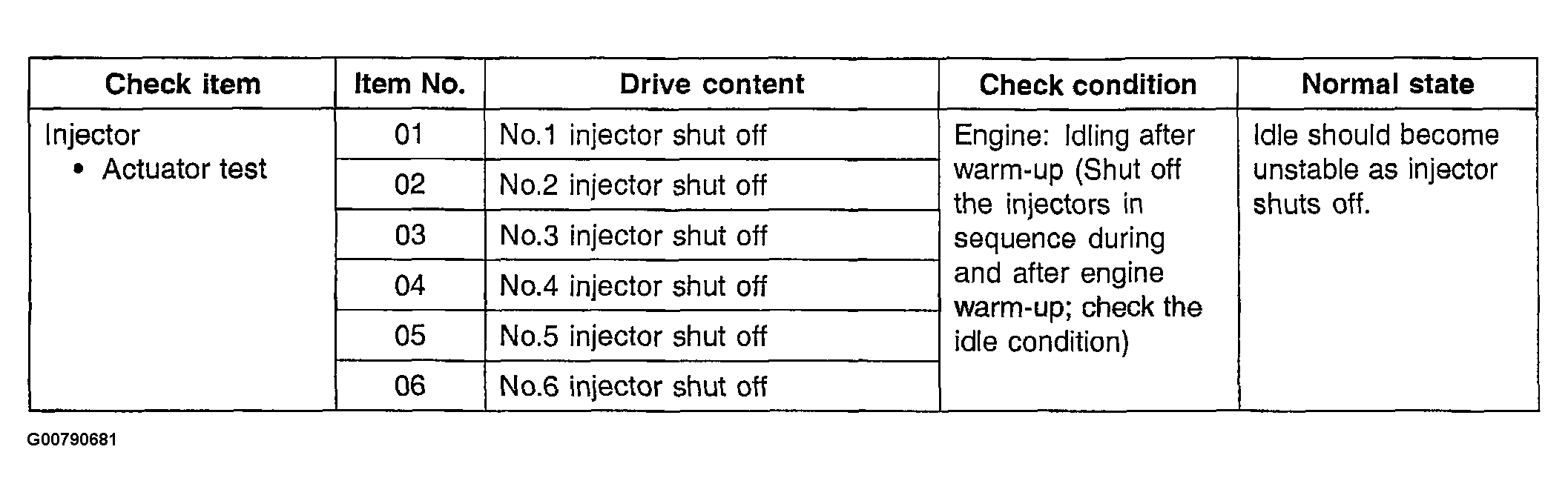

Fig 3: Injector Check Item Table (3 Of 3)

Courtesy of HYUNDAI MOTOR CO.
