Harness Inspection Procedures

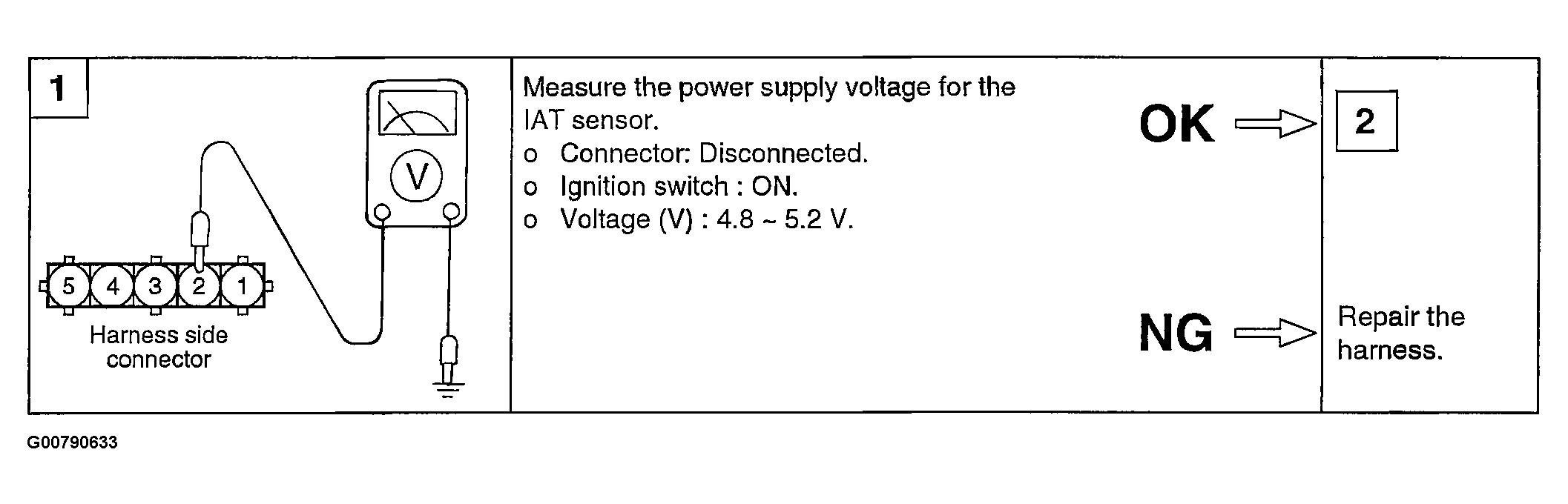

Fig 1: Harness Inspection Procedure (1 Of 5)
G00790633Courtesy of HYUNDAI MOTOR CO.

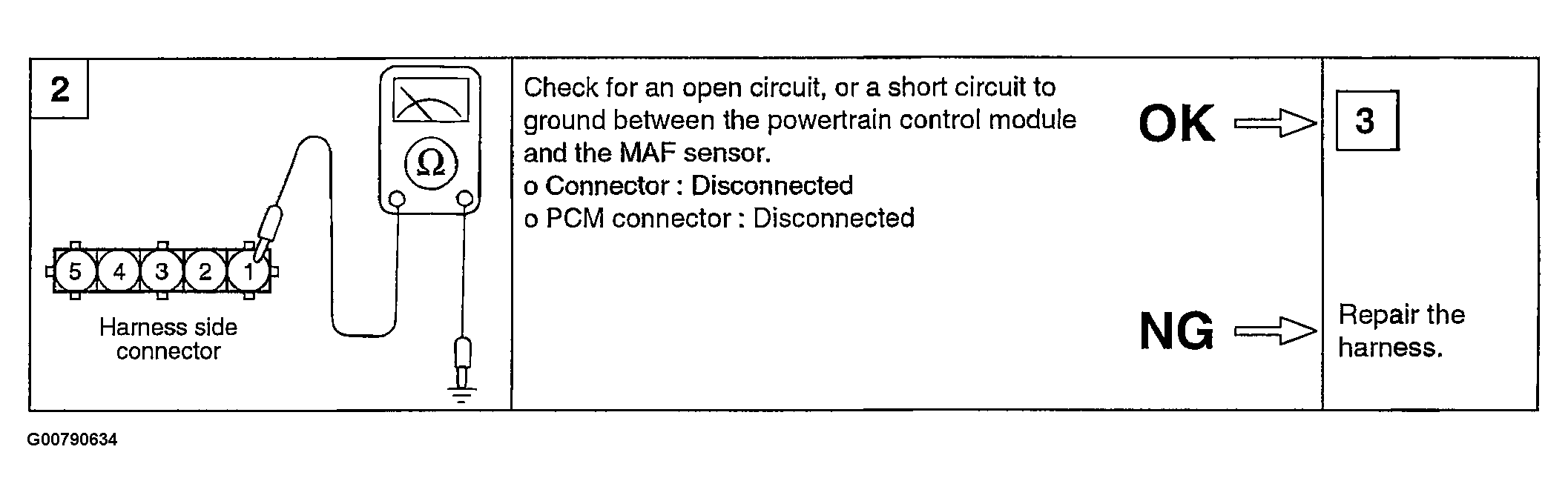

Fig 2: Harness Inspection Procedure (2 Of 5)
G00790634Courtesy of HYUNDAI MOTOR CO.

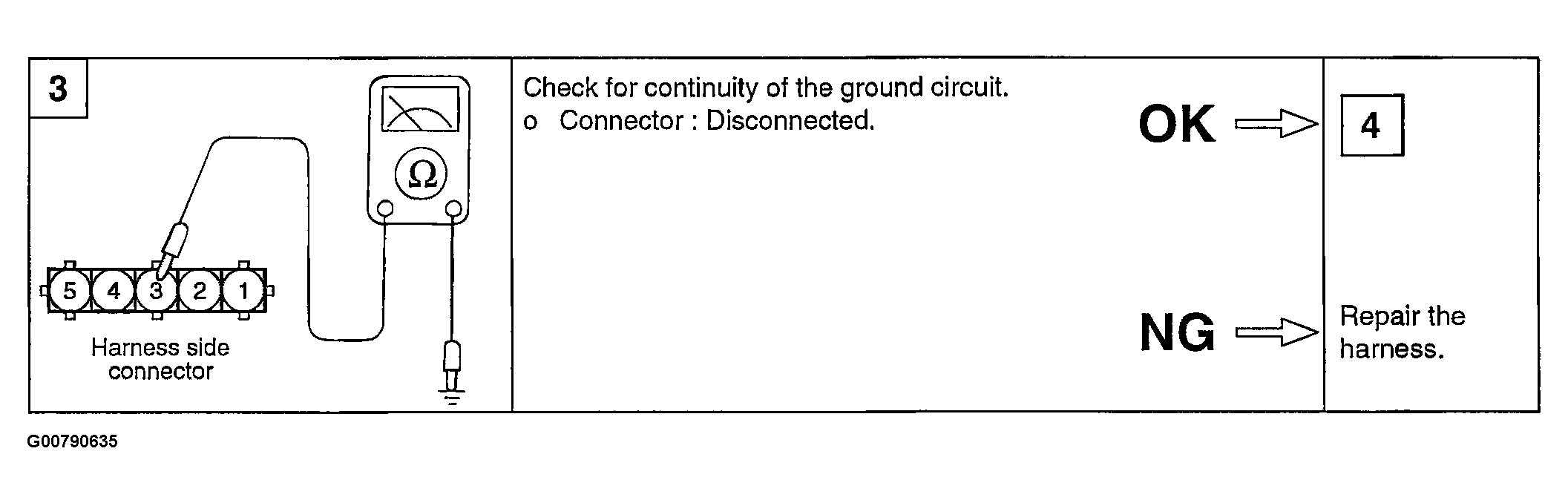

Fig 3: Harness Inspection Procedure (3 Of 5)
G00790635Courtesy of HYUNDAI MOTOR CO.

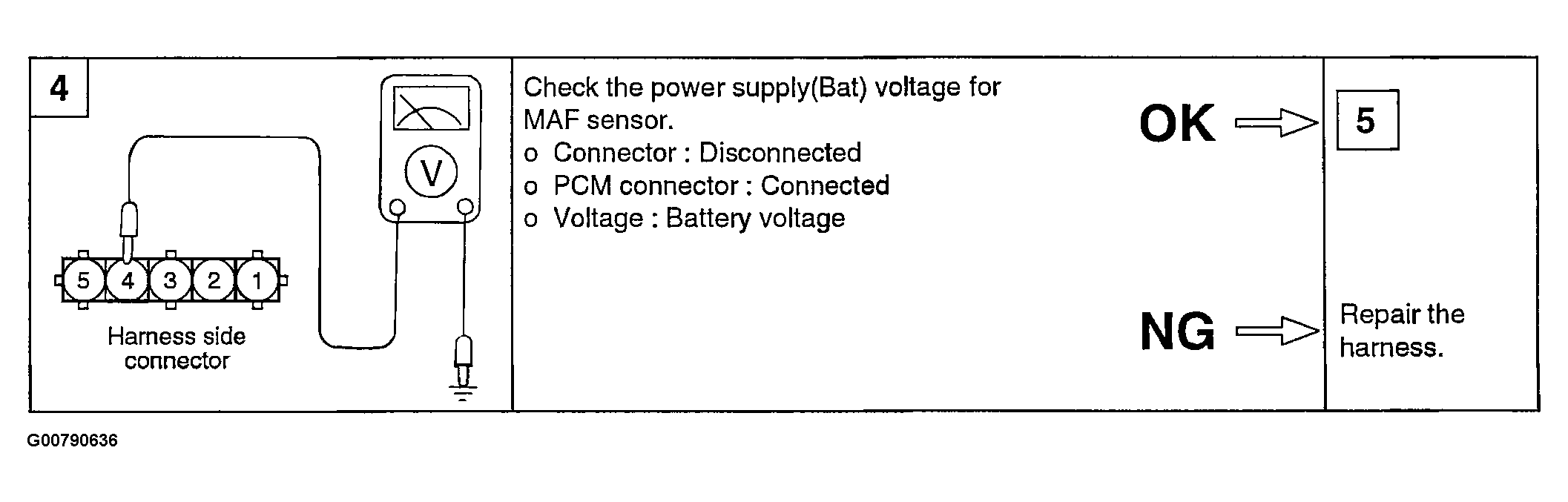

Fig 4: Harness Inspection Procedure (4 Of 5)
G00790636Courtesy of HYUNDAI MOTOR CO.

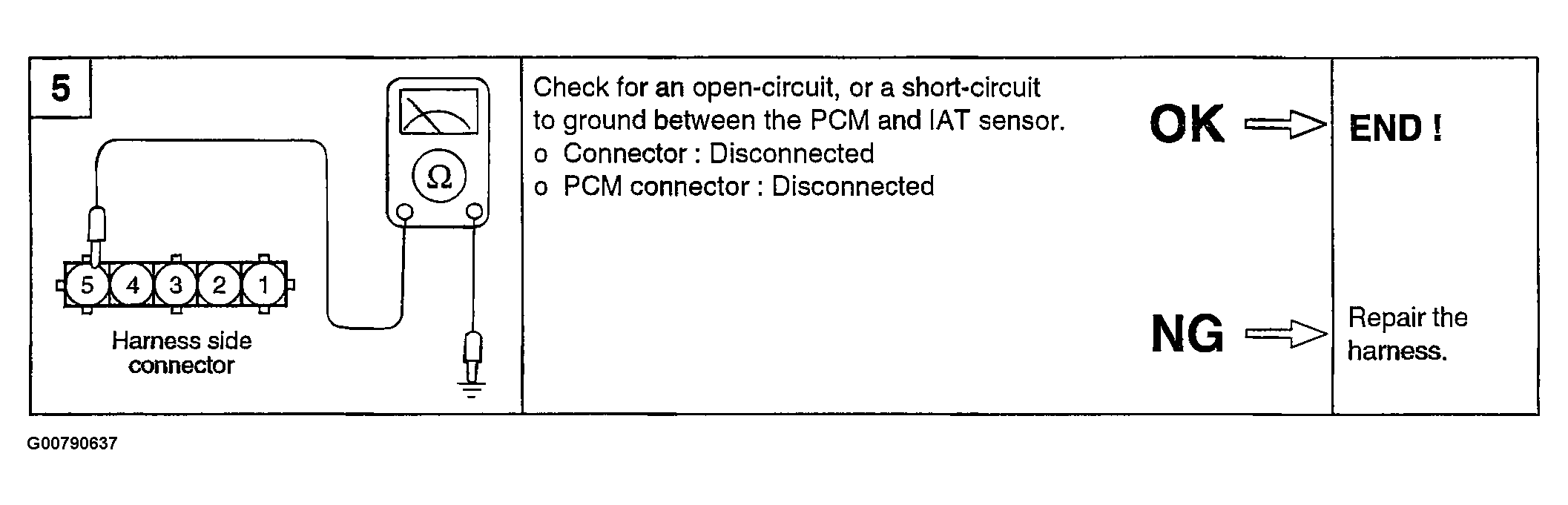

Fig 5: Harness Inspection Procedure (5 Of 5)
G00790637Courtesy of HYUNDAI MOTOR CO.
