Troubleshooting Procedures

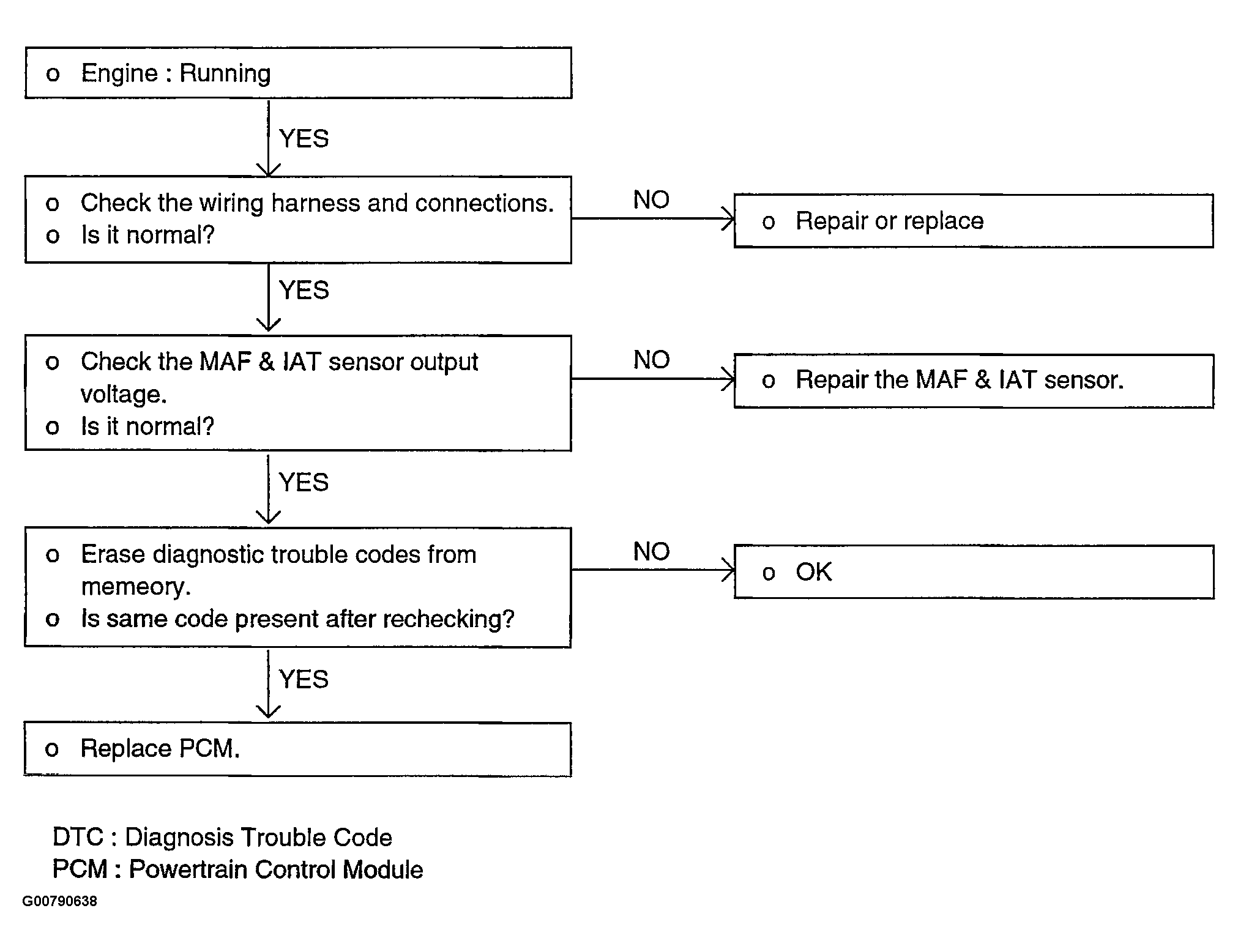

Fig 1: Troubleshooting Procedure Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
