Troubleshooting Procedures

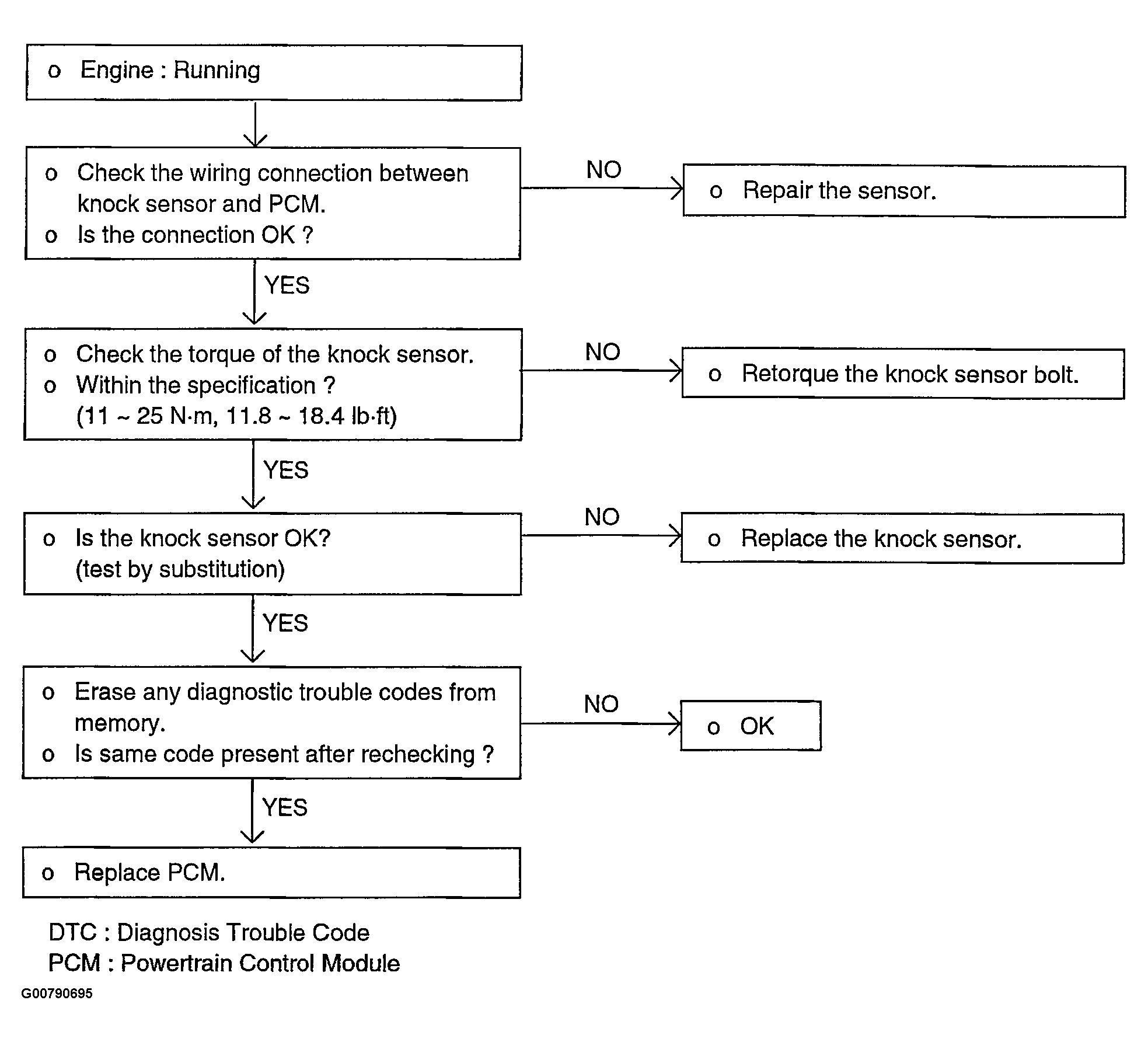

Fig 1: Troubleshooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
