Using Hi-Scan (Pro)

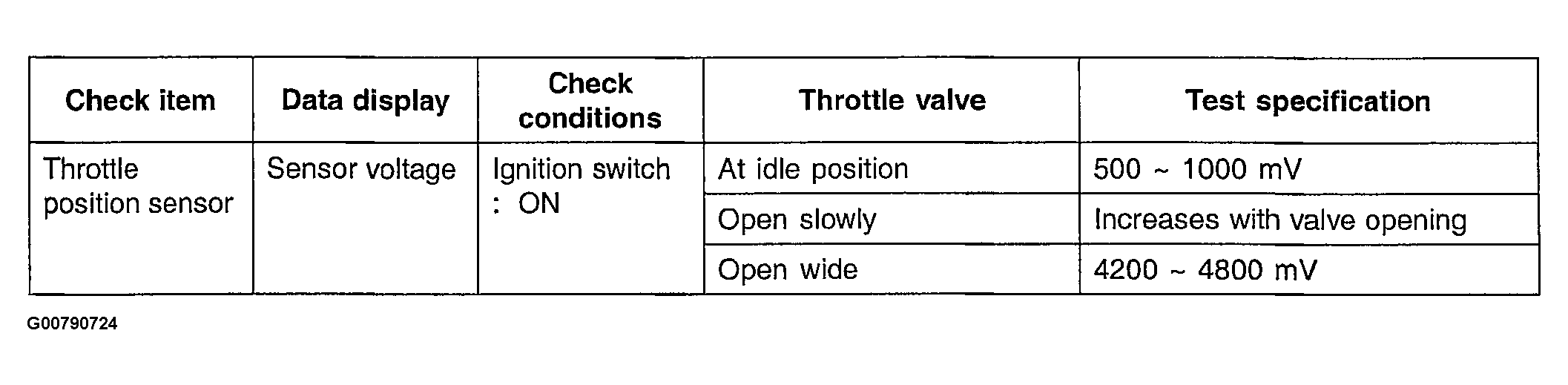

Fig 1: Throttle Position Sensor Check Item Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
