Inspection Chart For Diagnostic Trouble Codes

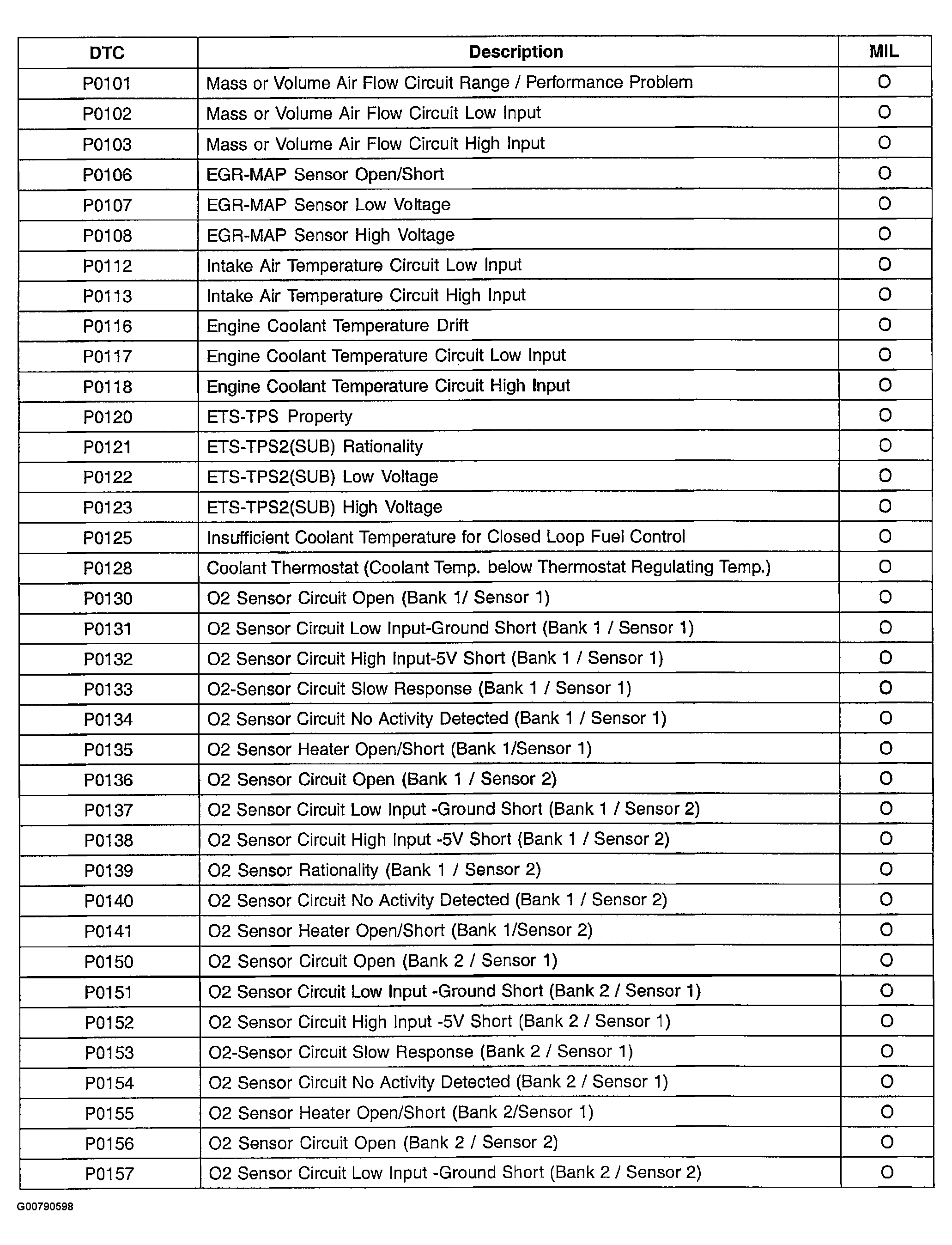

Fig 1: Diagnostic Trouble Code Chart (1 Of 4)
G00790598Courtesy of HYUNDAI MOTOR CO.

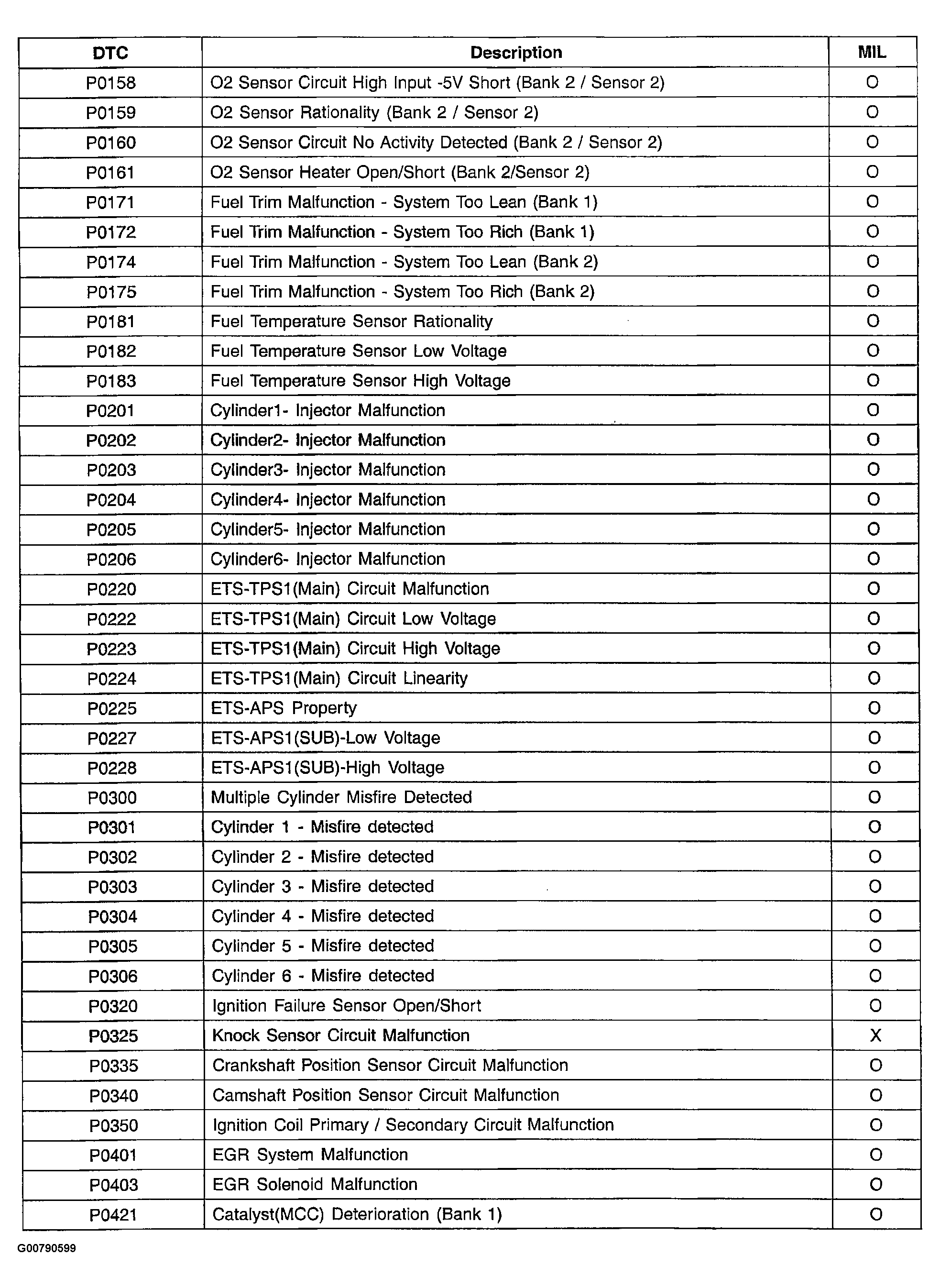

Fig 2: Diagnostic Trouble Code Chart (2 Of 4)
G00790599Courtesy of HYUNDAI MOTOR CO.

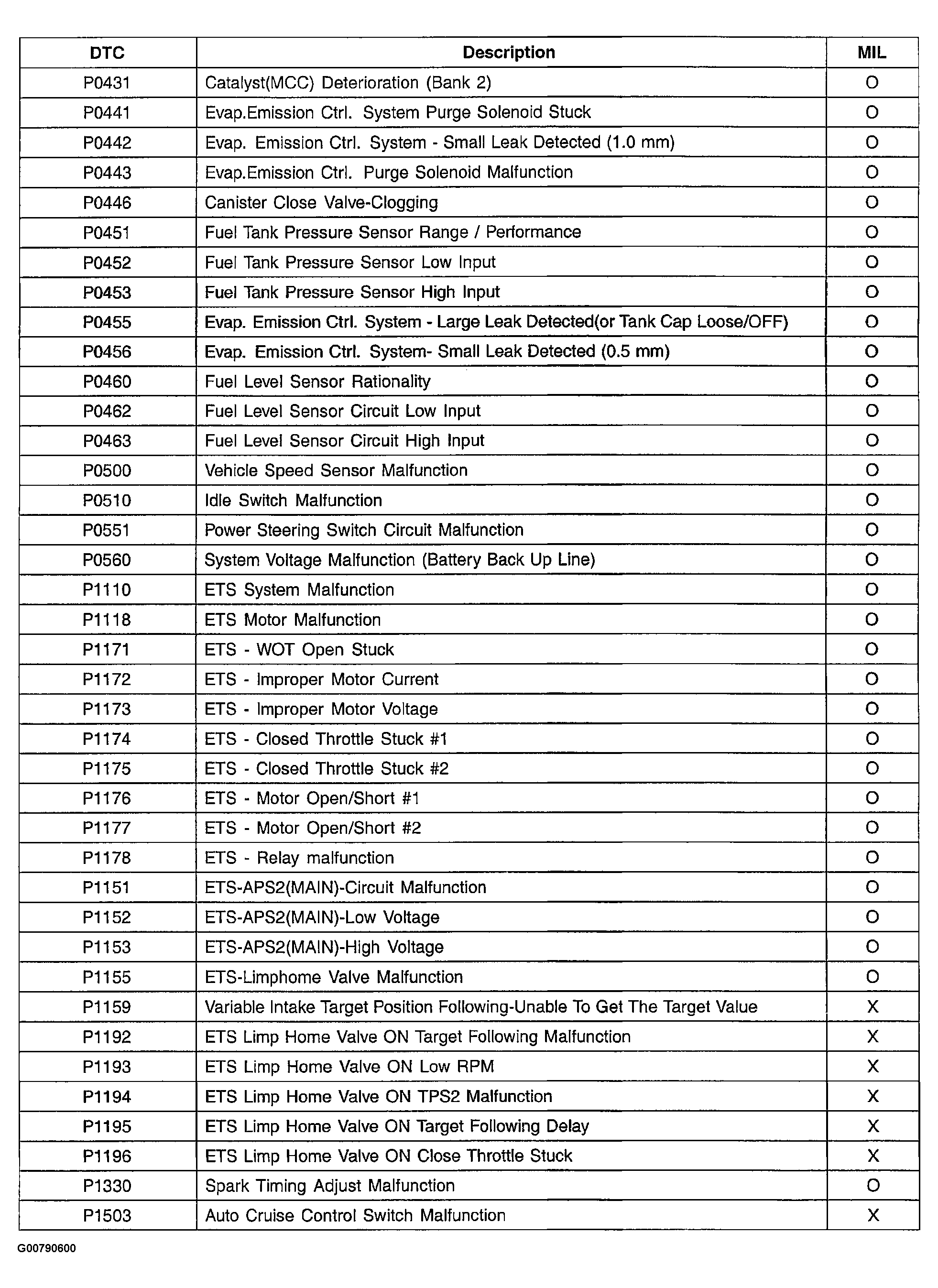

Fig 3: Diagnostic Trouble Code Chart (3 Of 4)
G00790600Courtesy of HYUNDAI MOTOR CO.

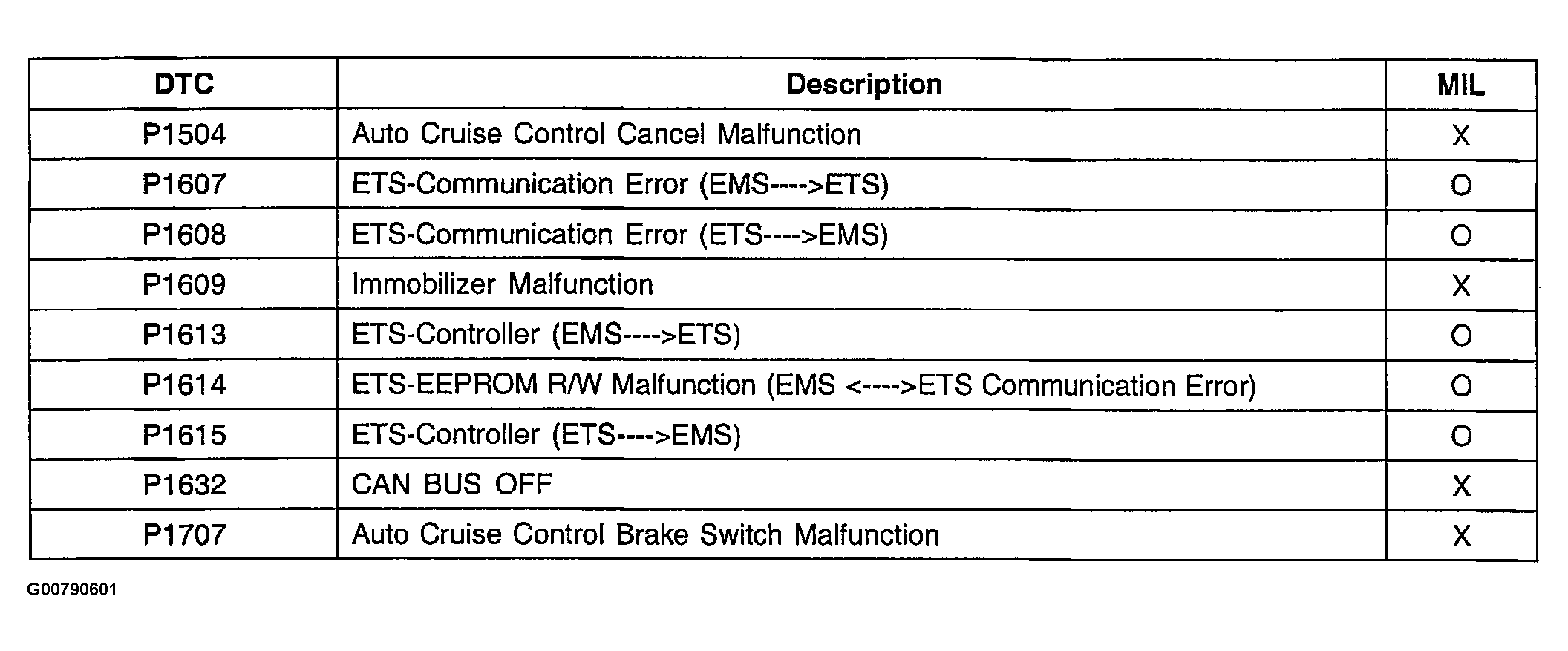

Fig 4: Diagnostic Trouble Code Chart (4 Of 4)
G00790601Courtesy of HYUNDAI MOTOR CO.
NOTE:
  • "O" means that the fault code will be stored and the MIL illuminates.
  • "X" means that the fault code will be stored but the MIL does not illuminates.
