MFI Control System: Troubleshooting: Notes

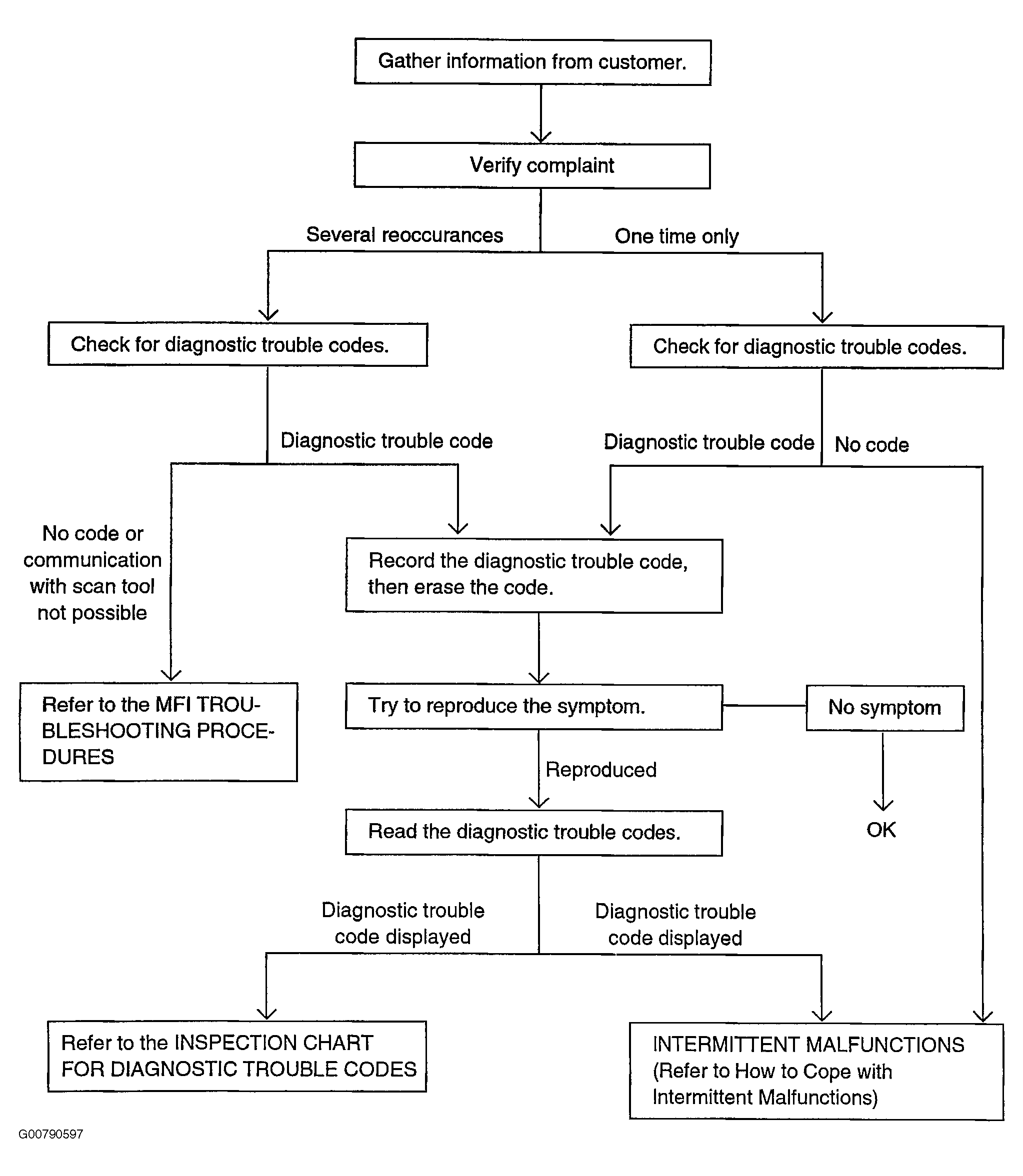

Fig 1: Diagnostic Troubleshooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
