Powertrain Control Module (Pcm) Connector Terminal Arrangement

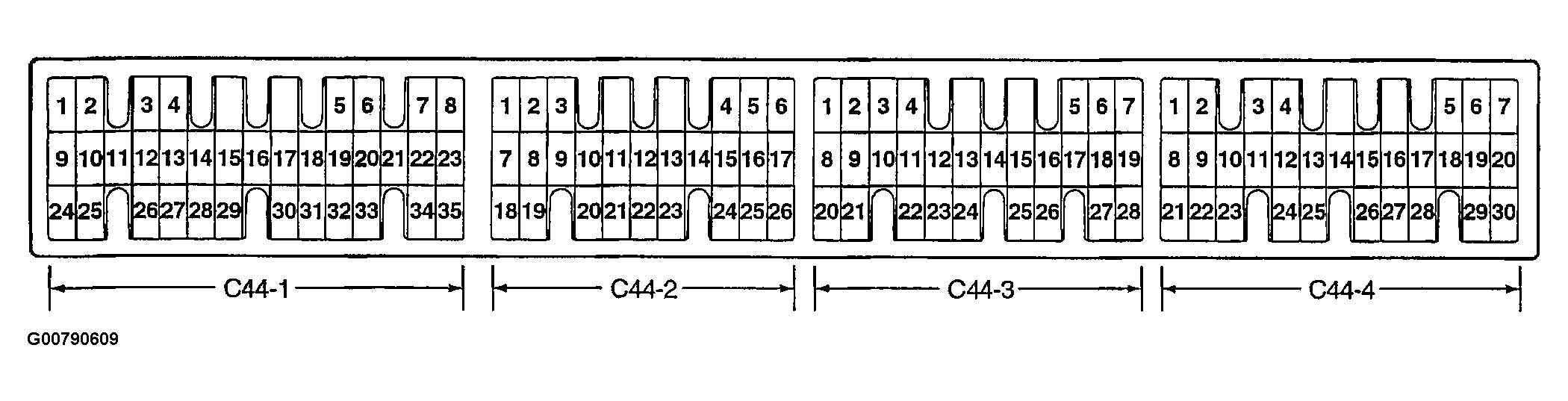

Fig 1: Power-Train Control Module Connector Terminal Arrangement

Courtesy of HYUNDAI MOTOR CO.

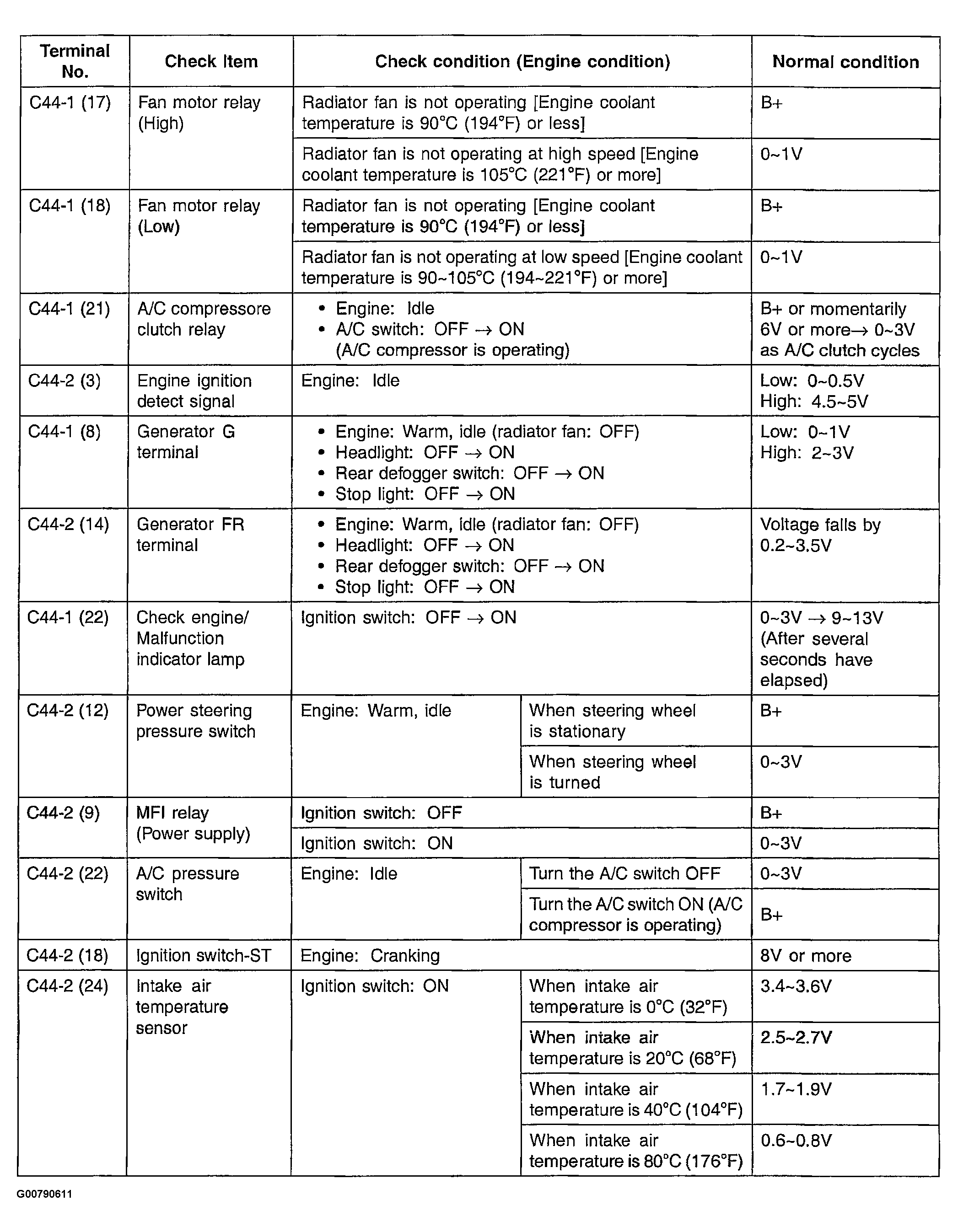

Fig 2: Check Item Chart (1 Of 4)

Courtesy of HYUNDAI MOTOR CO.

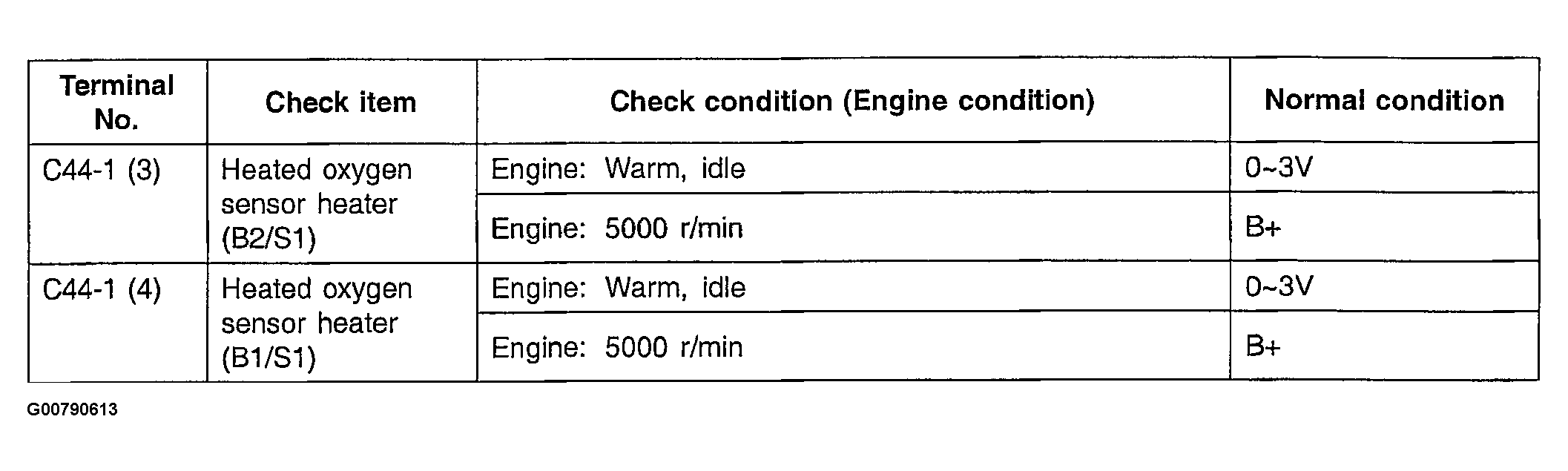

Fig 3: Check Item Chart (2 Of 4)

Courtesy of HYUNDAI MOTOR CO.

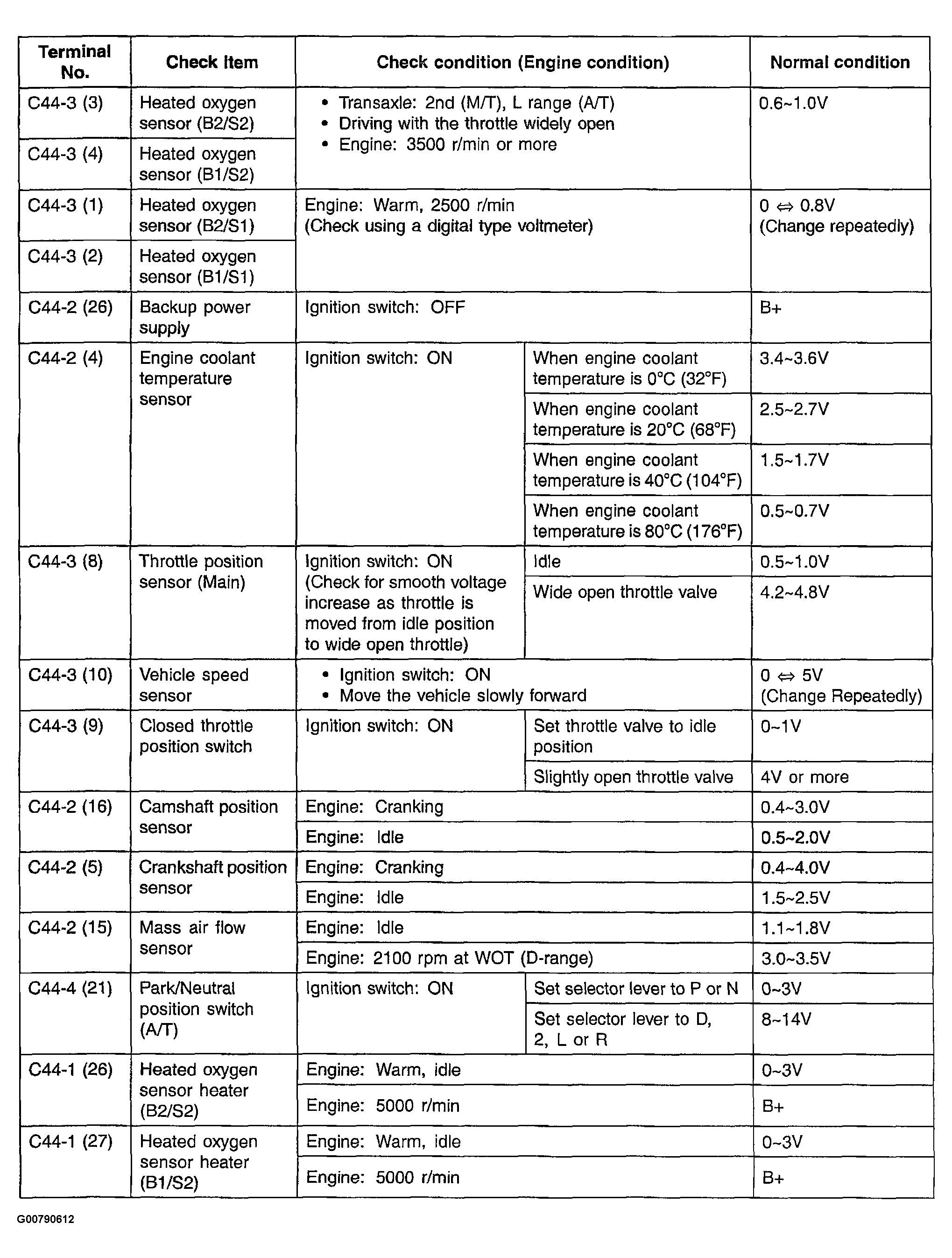

Fig 4: Check Item Chart (3 Of 4)

Courtesy of HYUNDAI MOTOR CO.

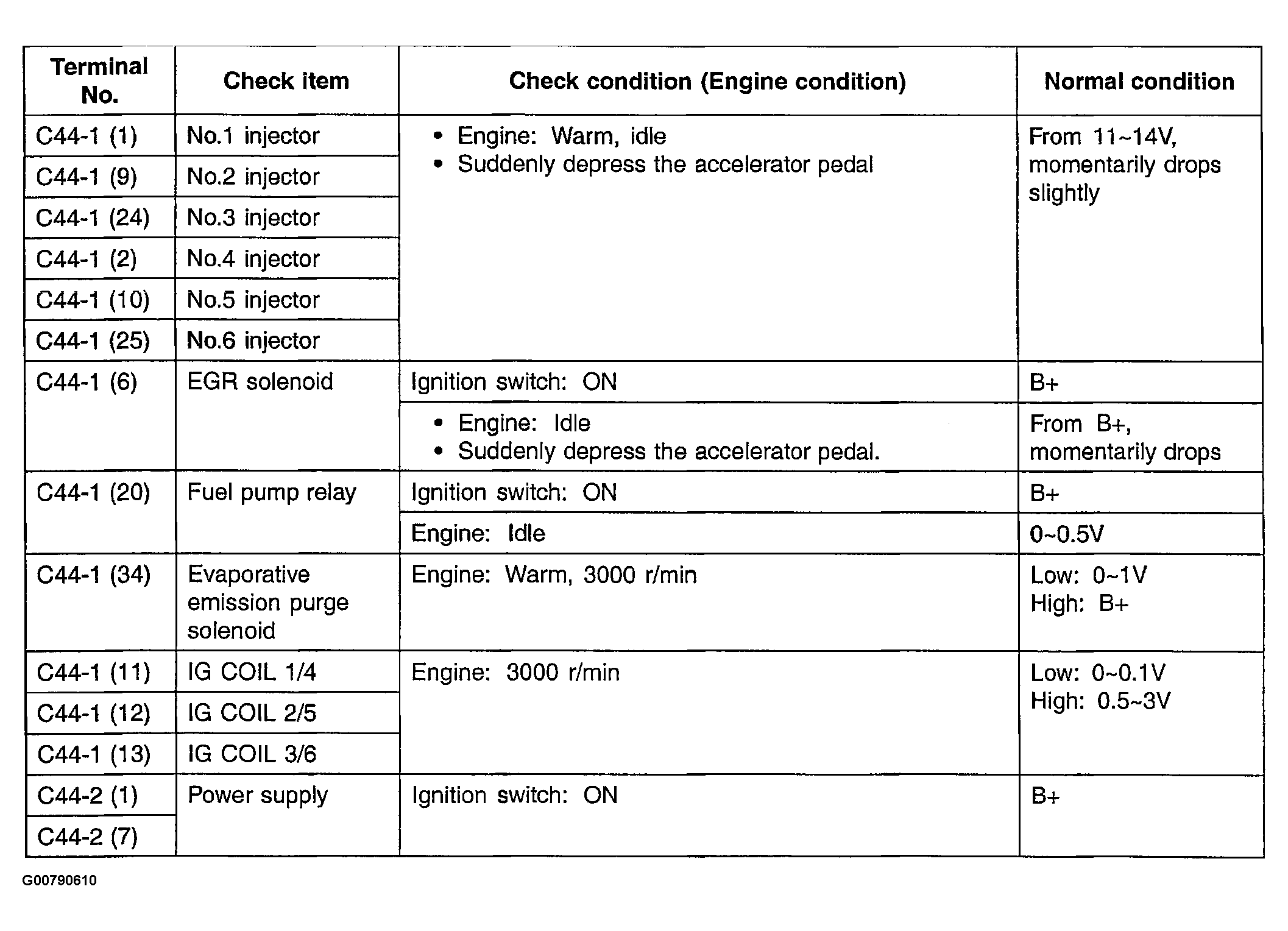

Fig 5: Check Item Chart (4 Of 4)

Courtesy of HYUNDAI MOTOR CO.
