Ignition System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Ignition System

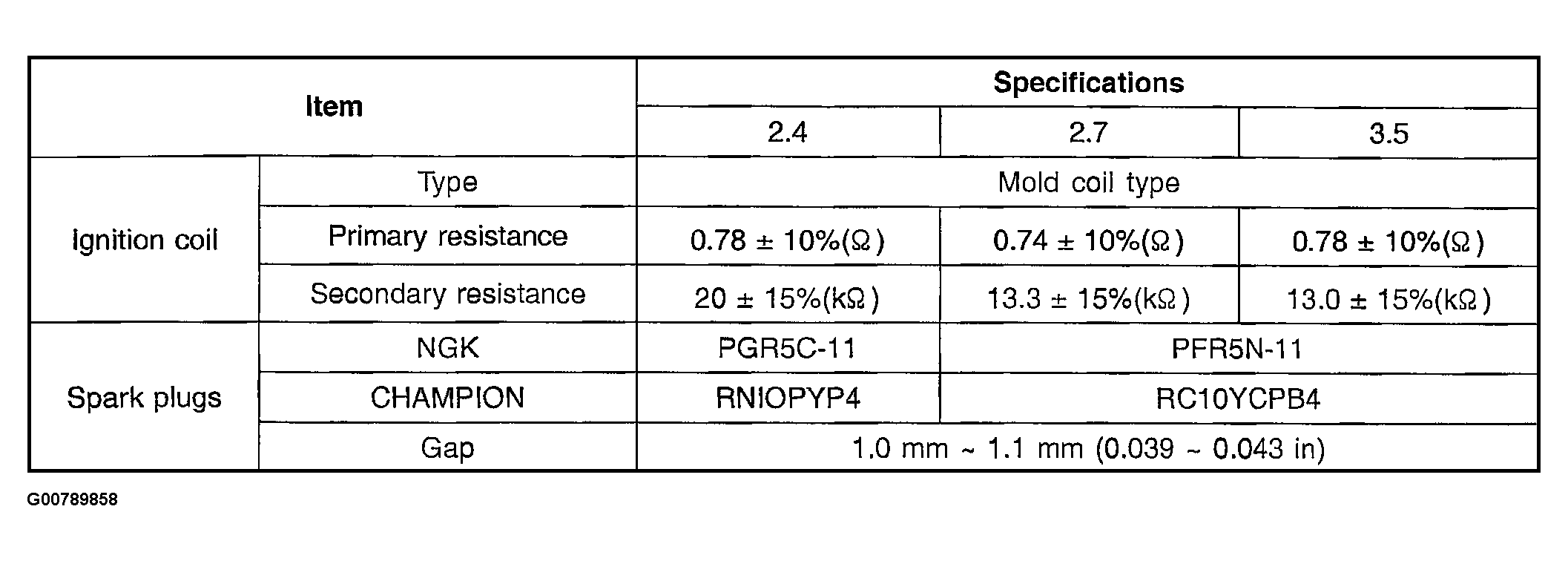

Fig 1: Ignition System Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
