Schematic Drawing

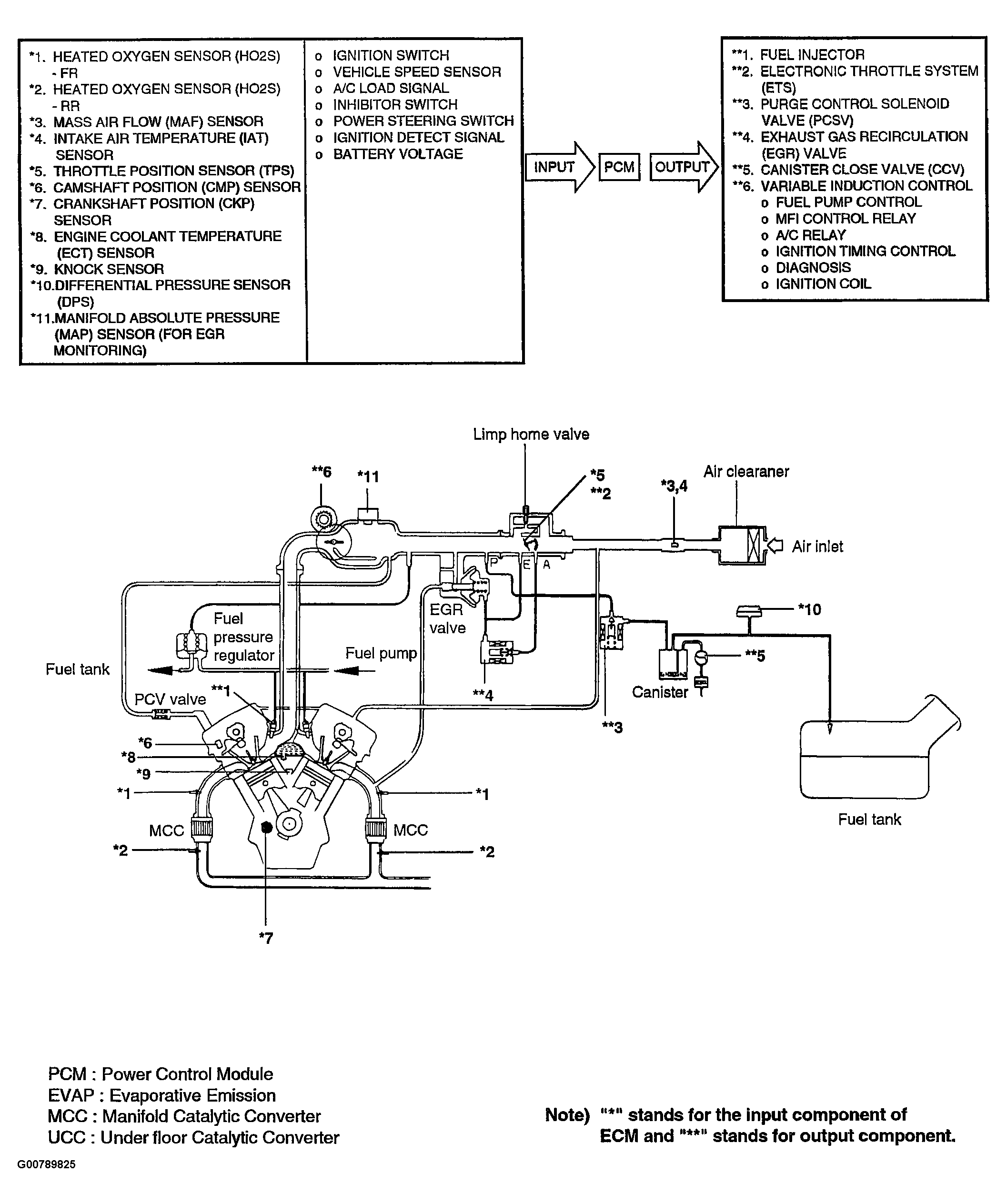

Fig 1: Emission Control System Schematic
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
