ETACS Module Input Signal Test

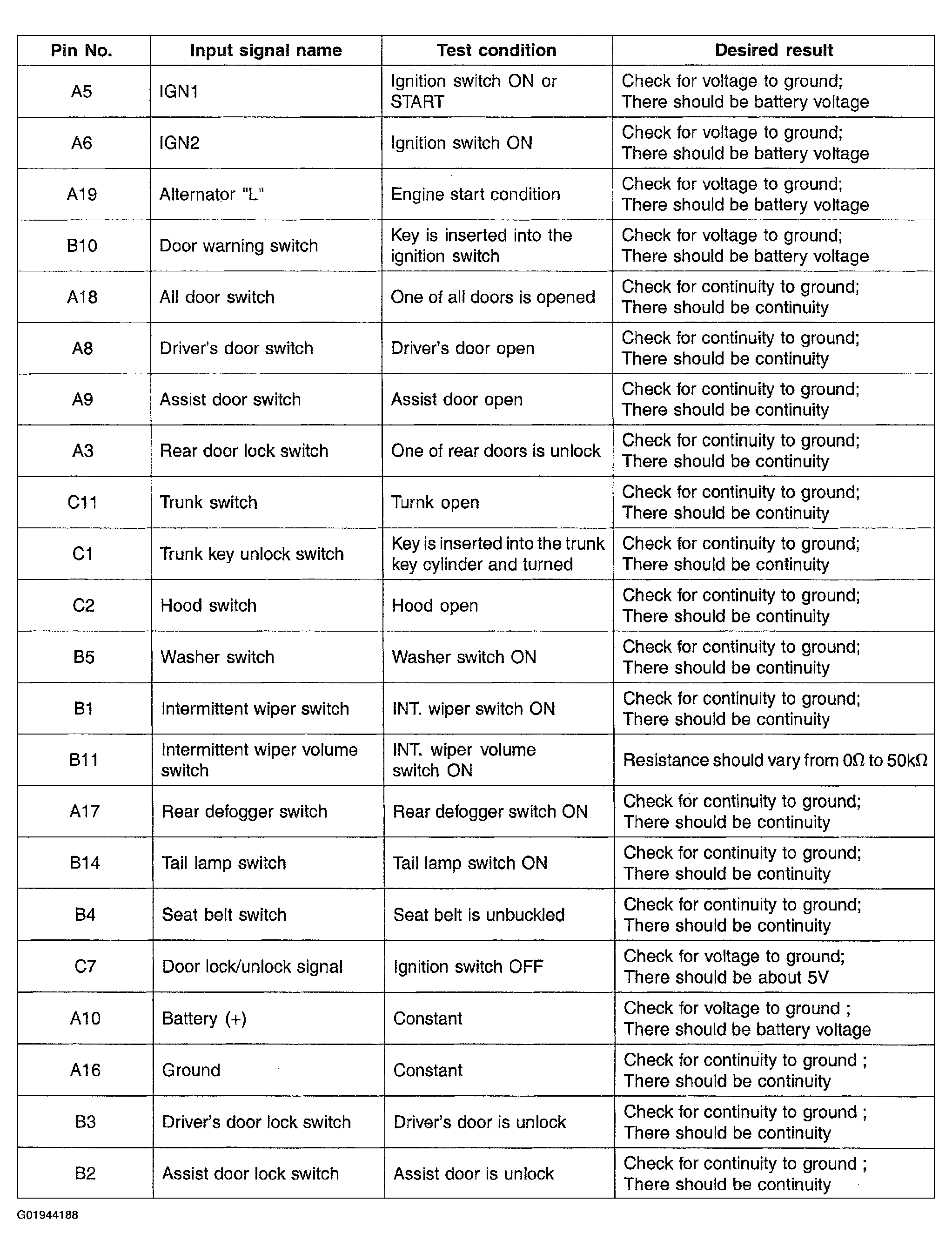

Fig 1: ETACS Module Input Signal Test Table (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

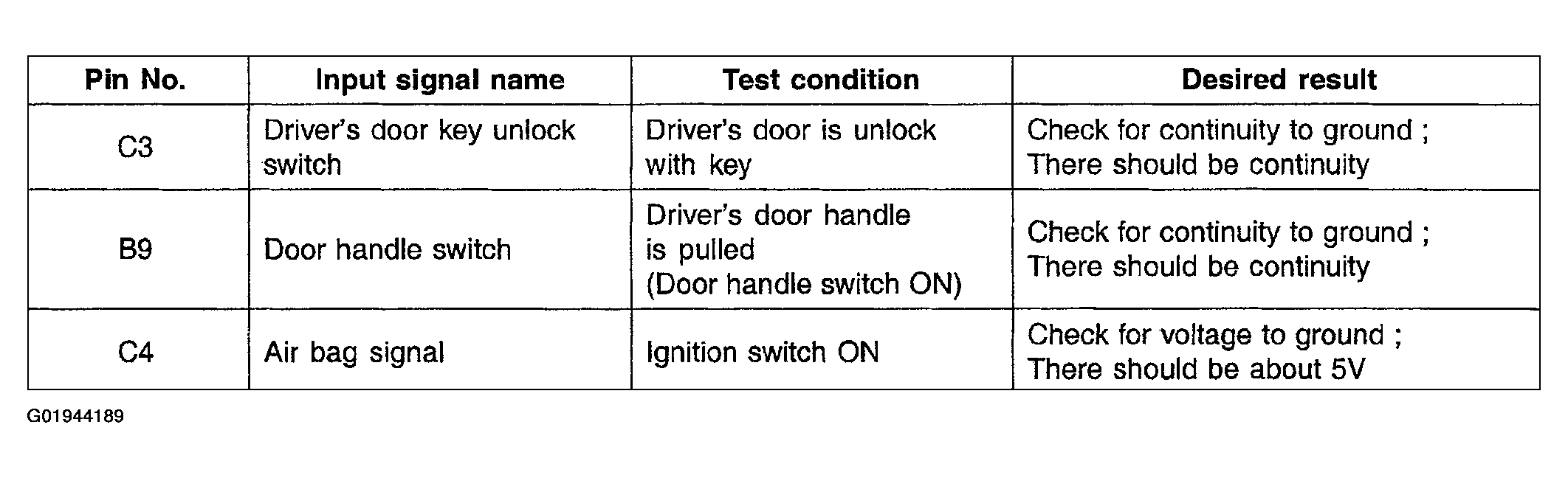

Fig 2: ETACS Module Input Signal Test Table (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
