Crankcase Emission Control System: Components

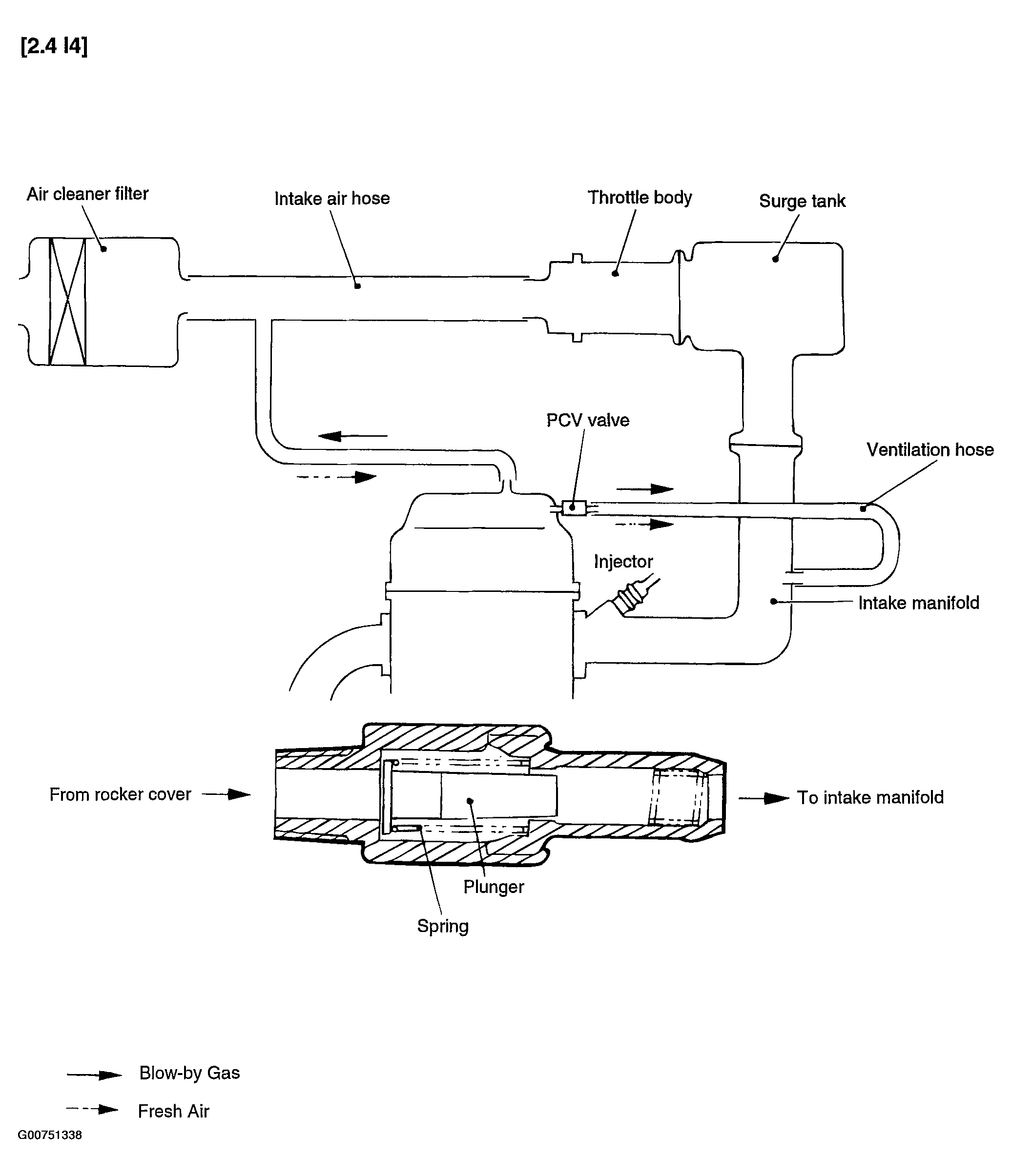

Fig 1: Crankcase Emission Control System Components 2.4L
Courtesy of HYUNDAI MOTOR CO.

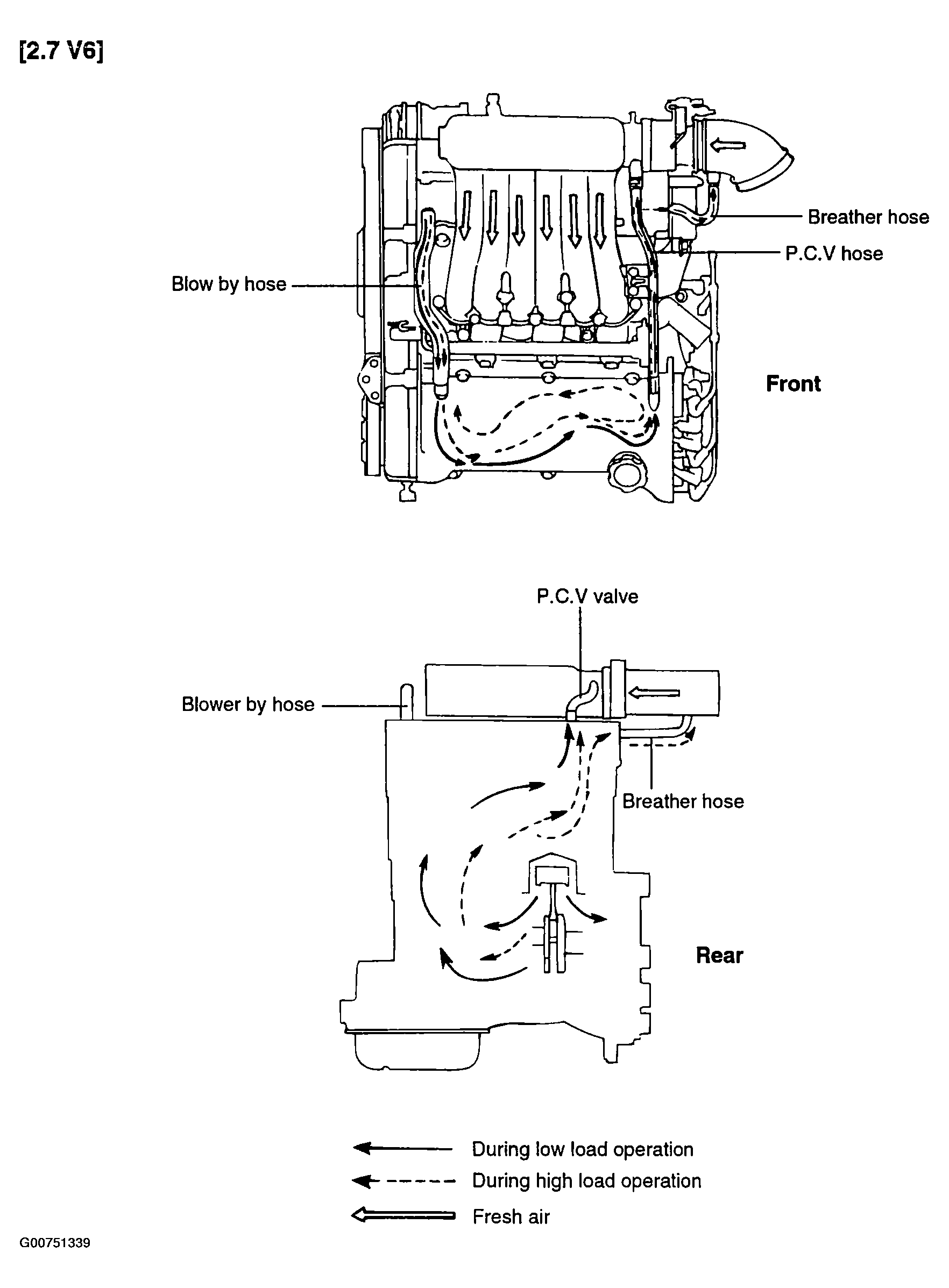

Fig 2: Crankcase Emission Control System Components 2.7L
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
