Auxiliary Emission Control Systems: General: Components

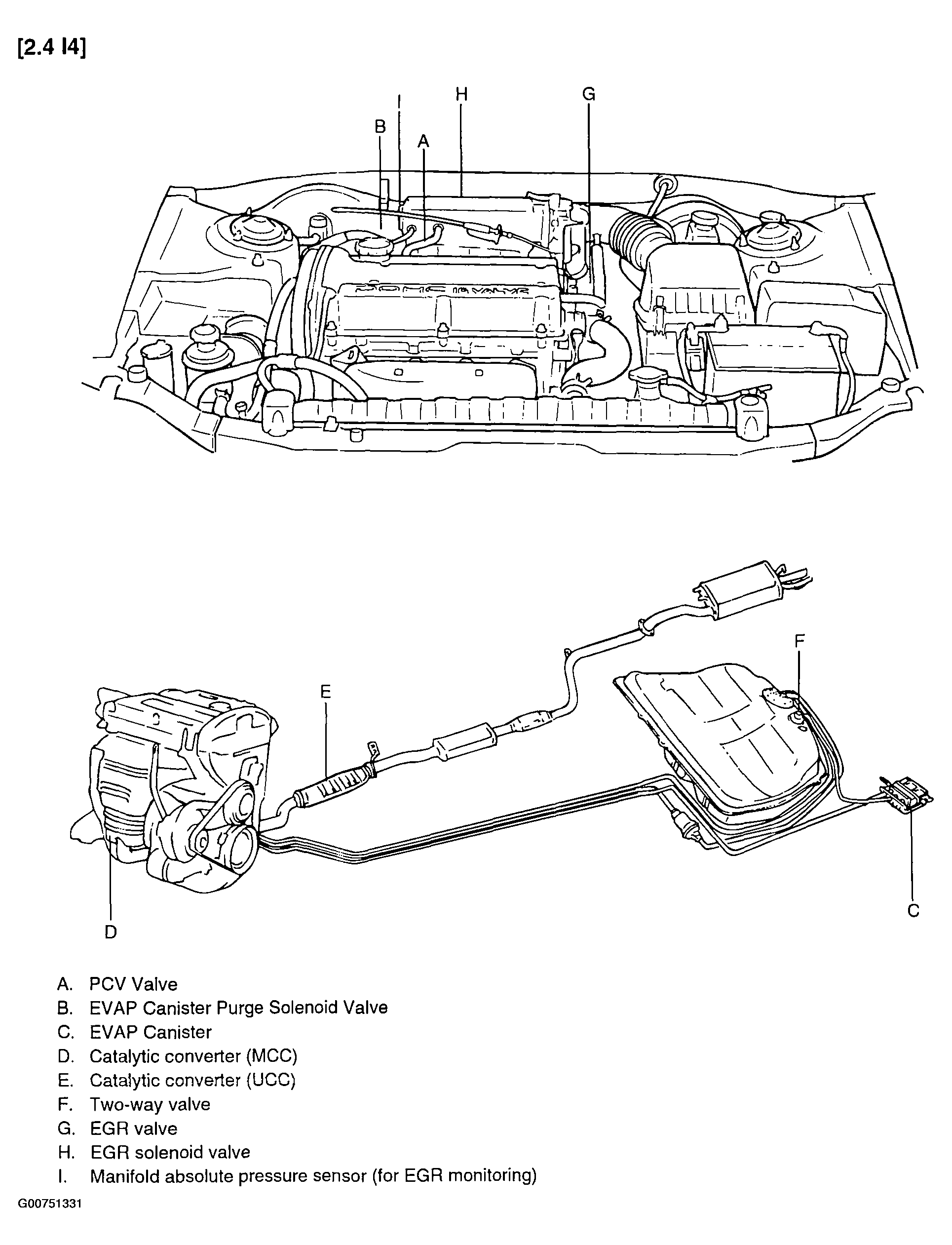

Fig 1: Identifying Components 2.4L (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

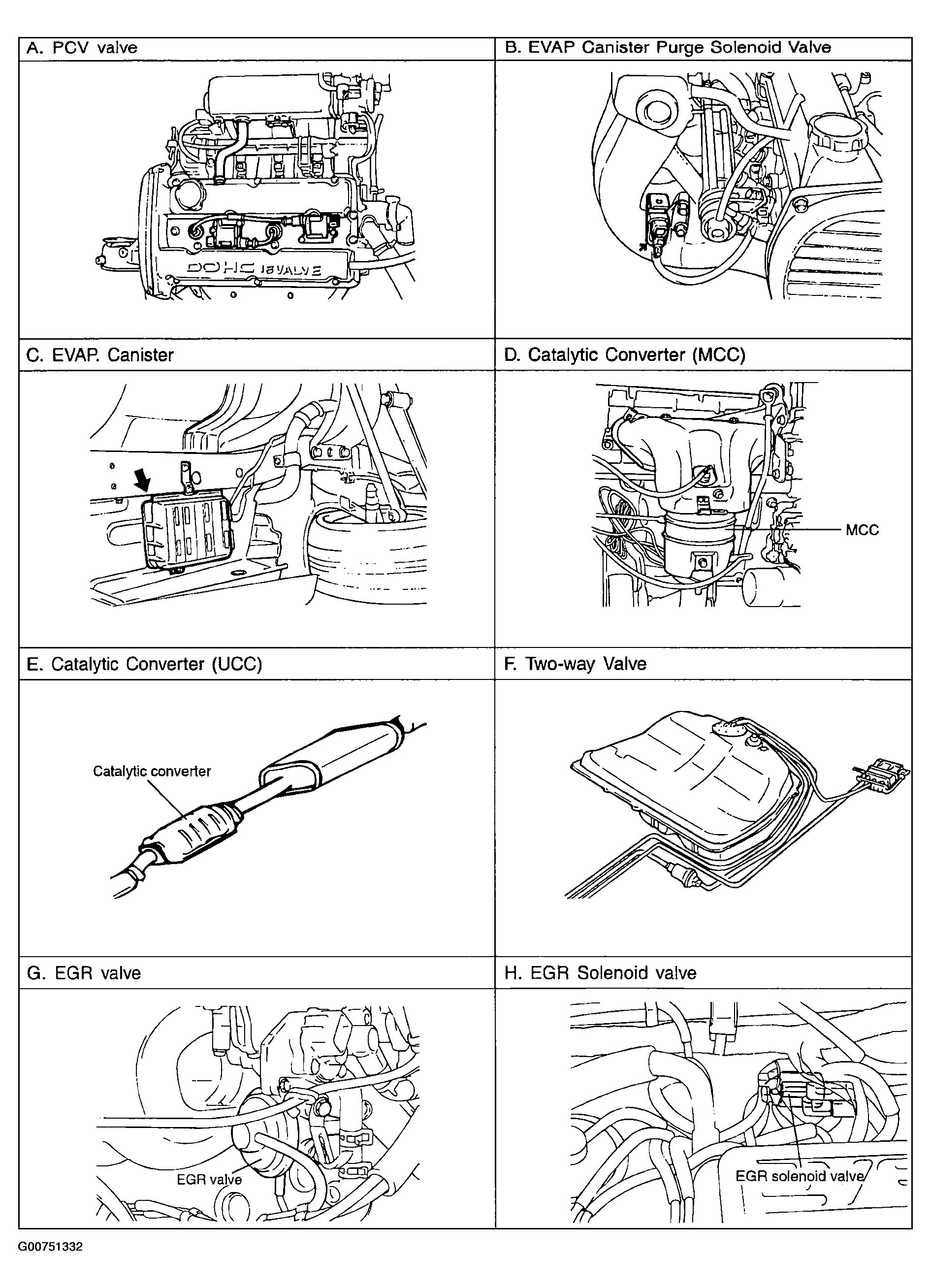

Fig 2: Identifying Components 2.4L (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

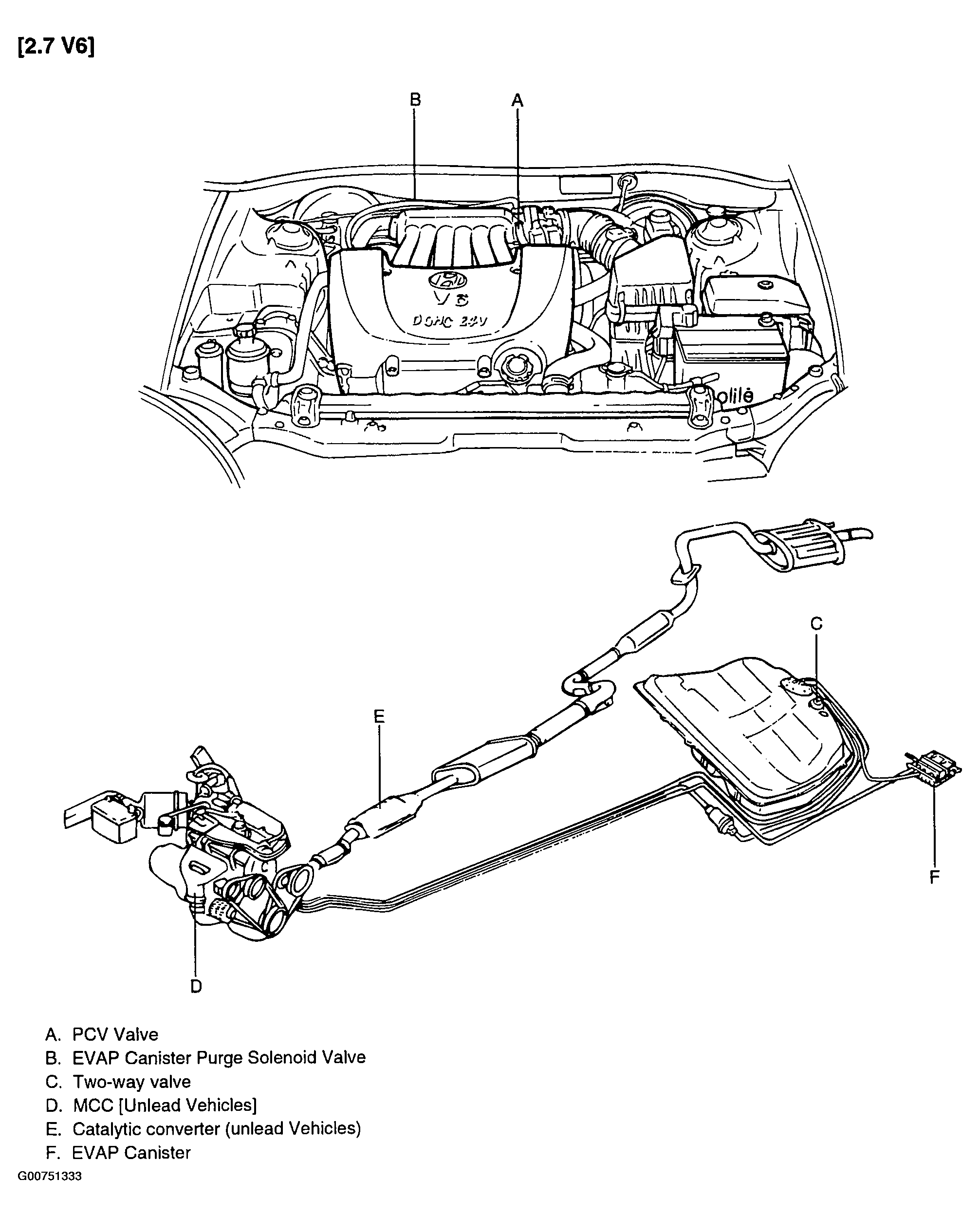

Fig 3: Identifying Components 2.7L (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Identifying Components 2.7L (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
