System Block Diagram: Notes

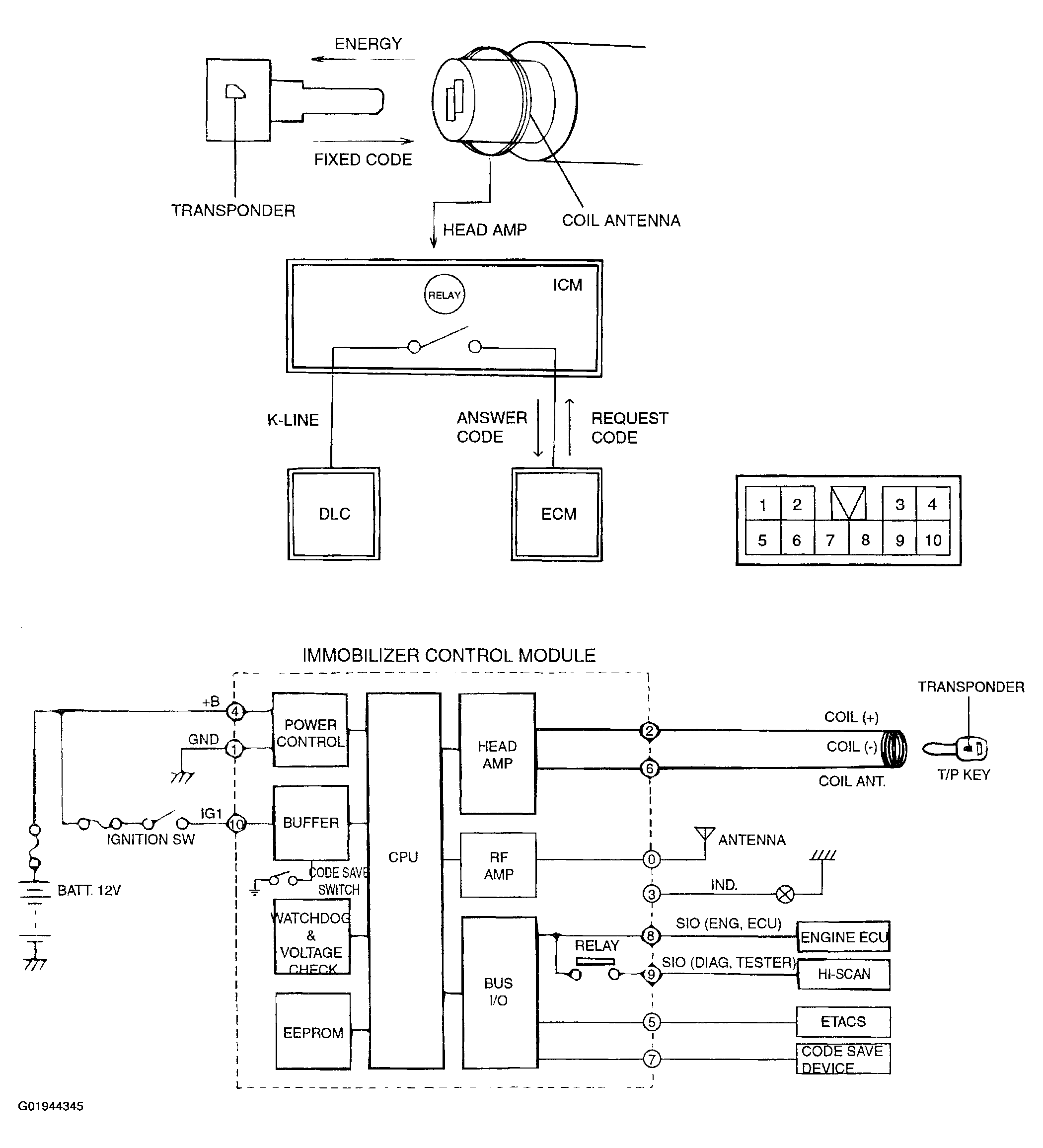

Fig 1: Immobilizer Control Module System Block Diagram
G01944345Courtesy of HYUNDAI MOTOR CO.
