Connector View and Numbering Order

CONNECTOR VIEW AND NUMBERING ORDER

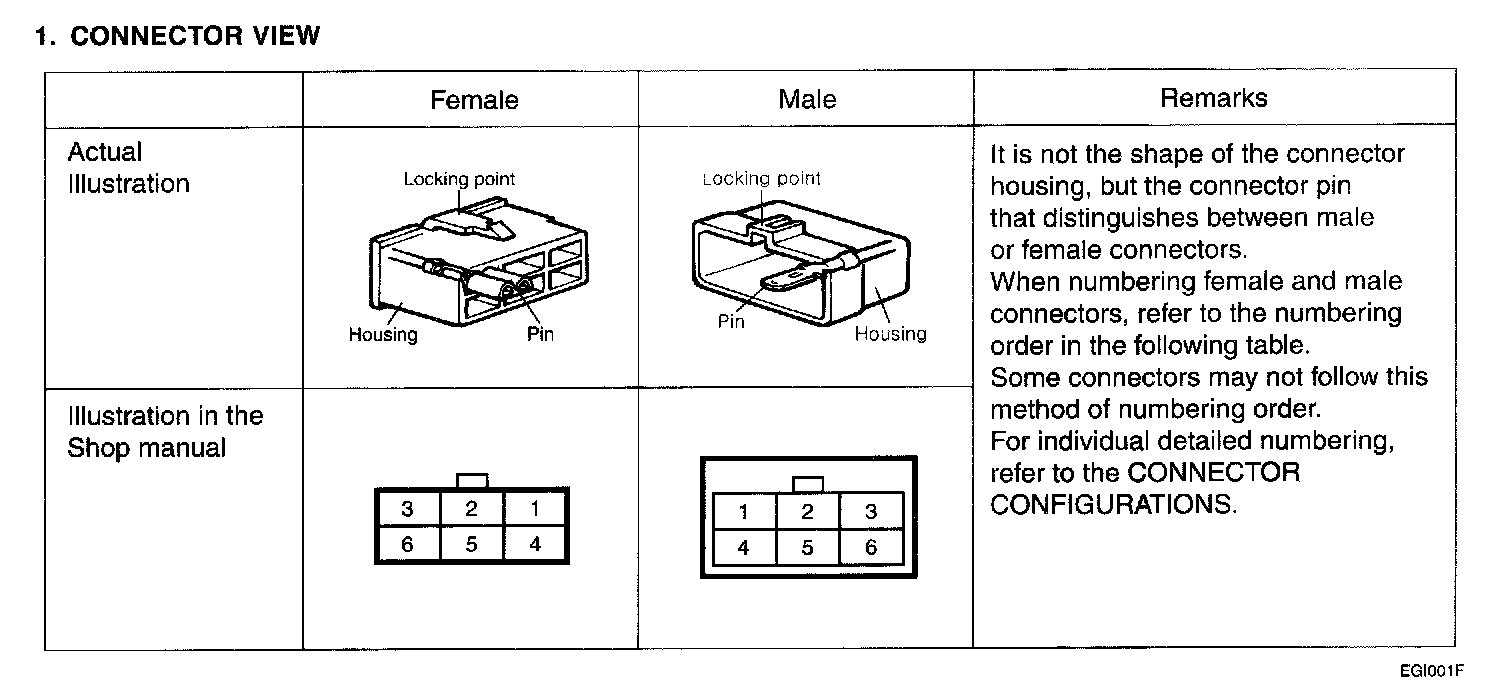

1. CONNECTOR VIEW

NOTE: UNLESS OTHERWISE STATED, ALL CONNECTOR VIEWS ARE FROM THE TERMINAL SIDE OF THE CONNECTOR.

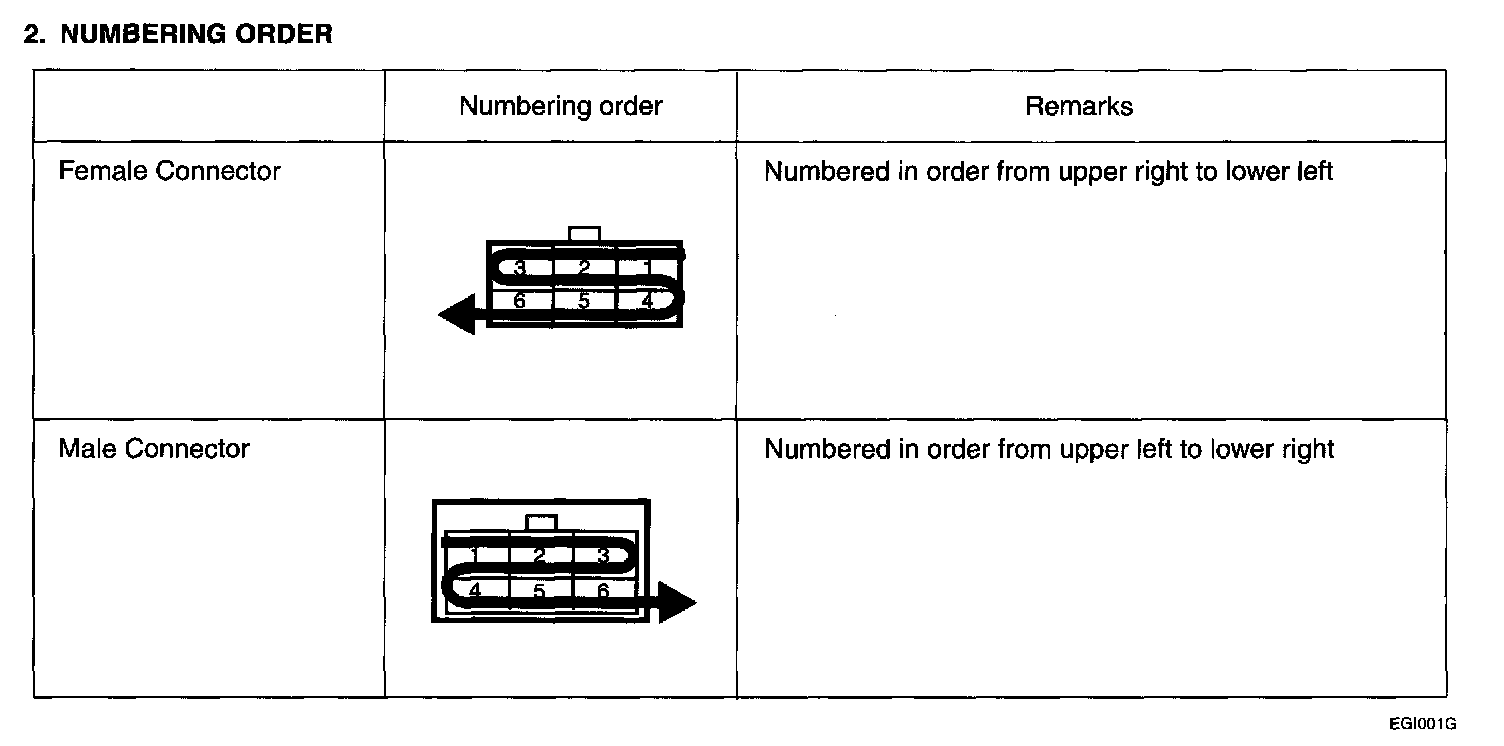

2. NUMBERING ORDER
