General Torque Specifications

Tightening Torque

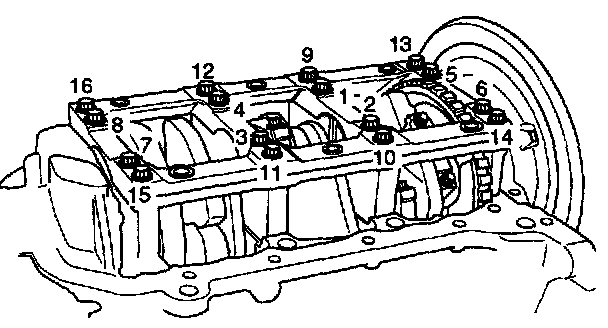

Bearing Cap Torque Sequence:

Main bearing cap bolt
M10
Bolts 1 to 8 27 - 33 Nm + 90° - 94°
or 270 - 330 kgf-cm + 90° - 94°
or 19.5 - 24 ft. lbs. + 90° - 94°
M8
Bolts 9 to 15 13 - 19 Nm + 90° - 94°
or 130 - 190 kgf-cm + 90° - 94°
or 10 - 14 ft. lbs. + 90° - 94°

Connecting rod bolt 16 - 20 Nm + 90° - 94°
or 160 - 200 kgf-cm + 90° - 94°
or 12 - 15 ft. lbs. + 90° - 94°

Crankshaft pulley bolt 180 - 190 Nm (1,800 - 1,900 kgf-cm, 130 -138 ft. lbs.)
