Button Control And Operation Logic

All buttons should be back-up.
Push the button, then the operation sound is made for 0.1 sec. When a S/W is selected, and operation sound is made as well).

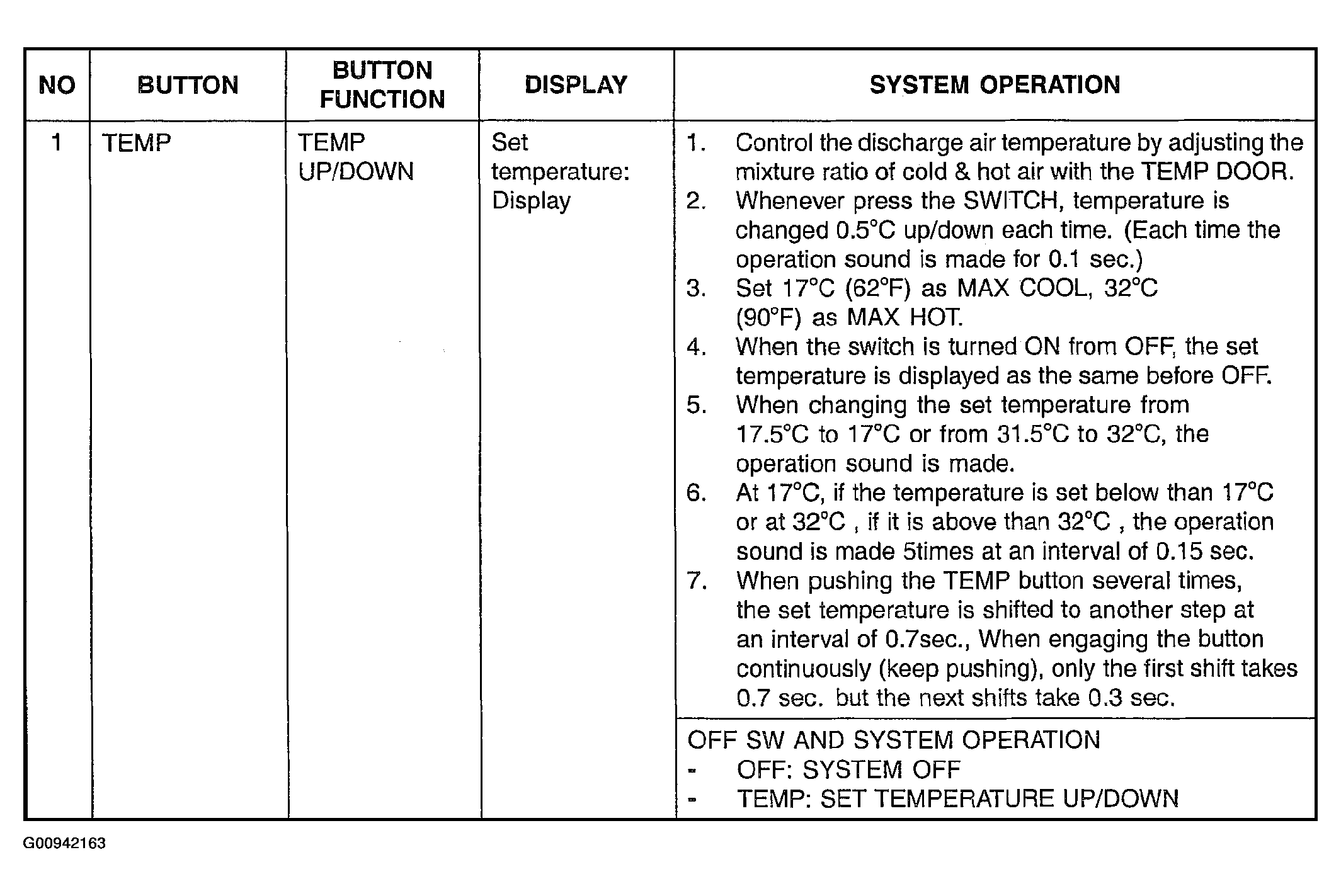

Fig 1: Identifying Button Control & Operation Logic (1 Of 5)

Courtesy of HYUNDAI MOTOR CO.

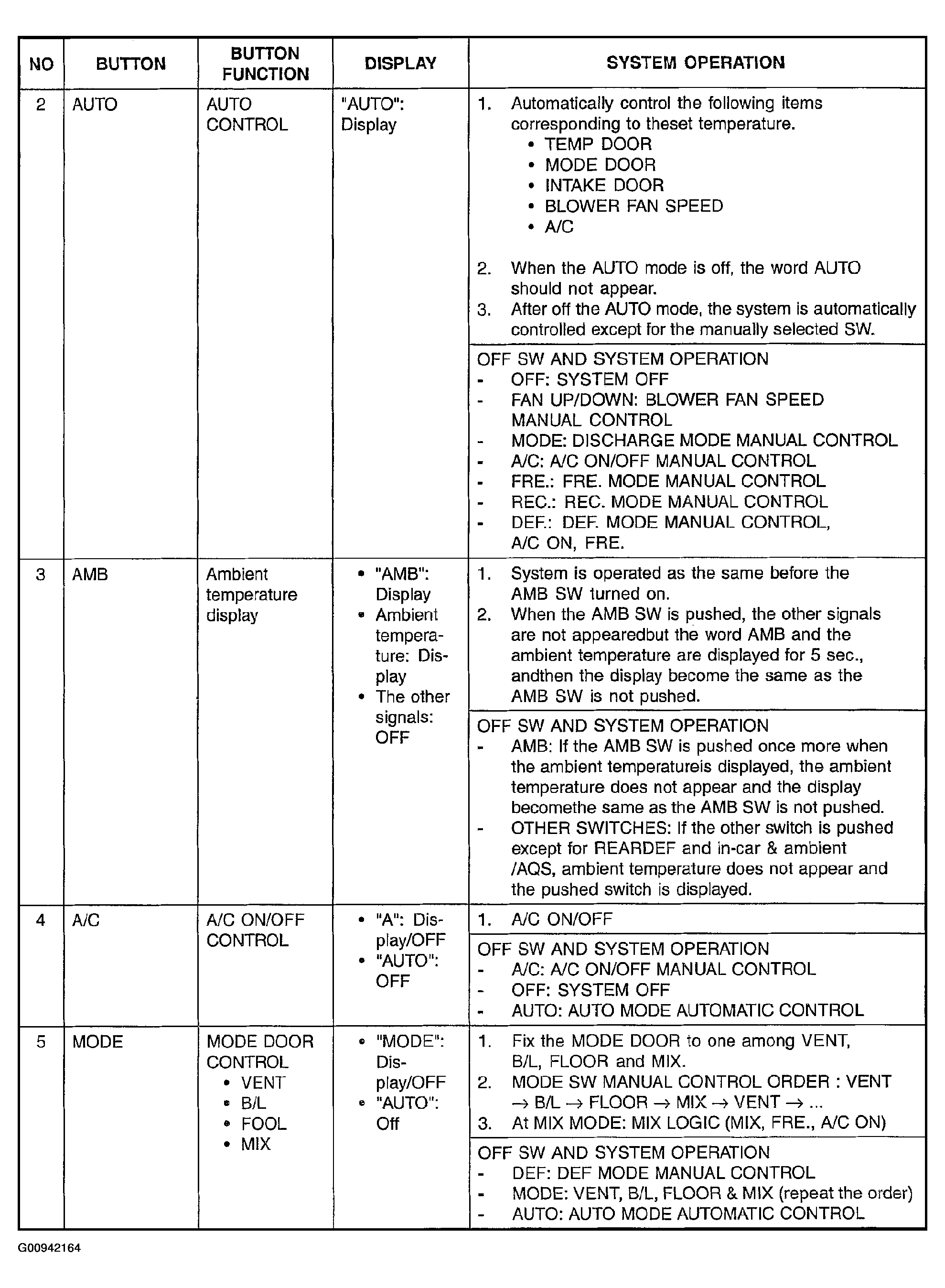

Fig 2: Identifying Button Control & Operation Logic (2 Of 5)

Courtesy of HYUNDAI MOTOR CO.

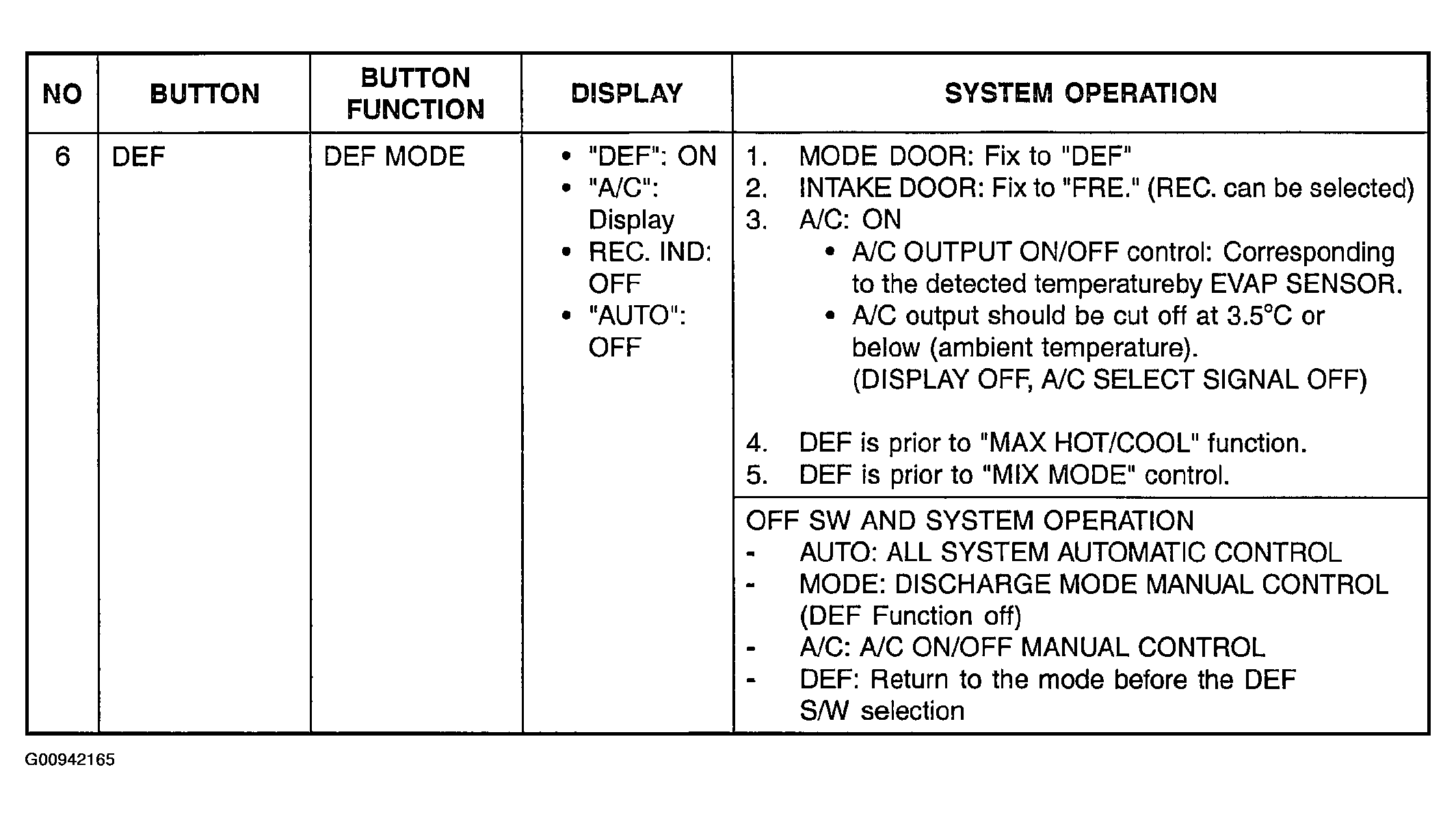

Fig 3: Identifying Button Control & Operation Logic (3 Of 5)

Courtesy of HYUNDAI MOTOR CO.

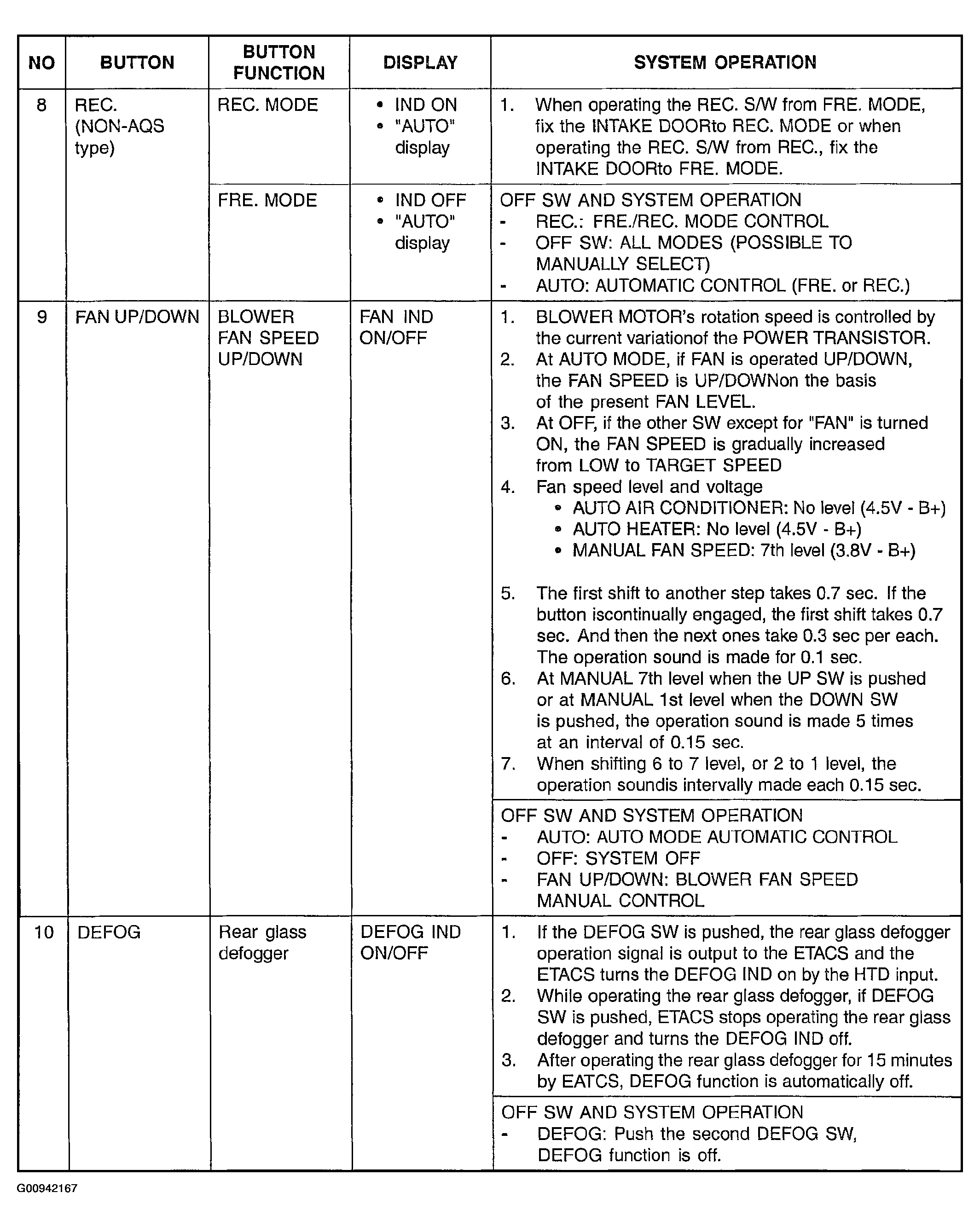

Fig 4: Identifying Button Control & Operation Logic (4 Of 5)

Courtesy of HYUNDAI MOTOR CO.

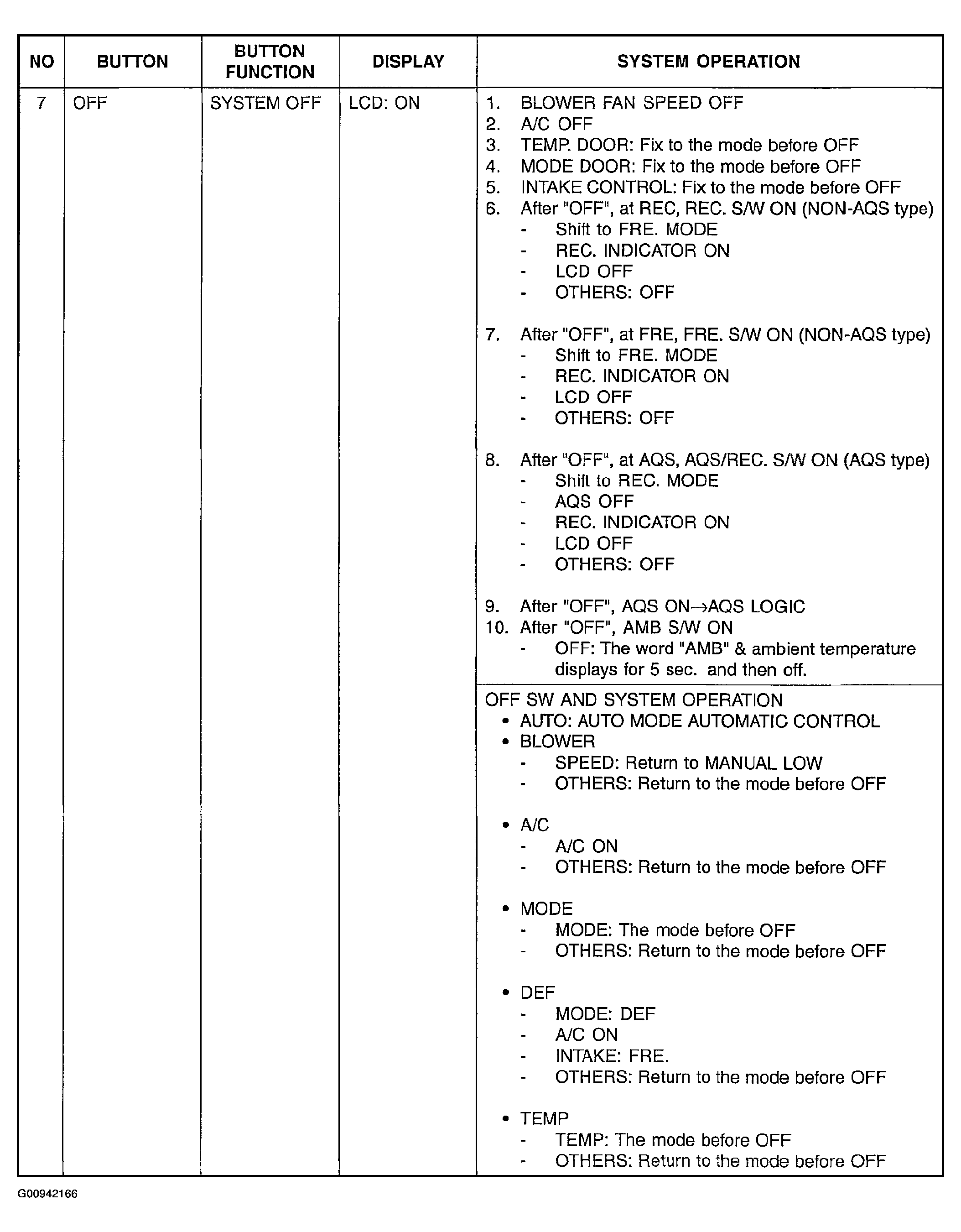

Fig 5: Identifying Button Control & Operation Logic (5 Of 5)

Courtesy of HYUNDAI MOTOR CO.
