Auxiliary Emission Control Systems: General: Troubleshooting

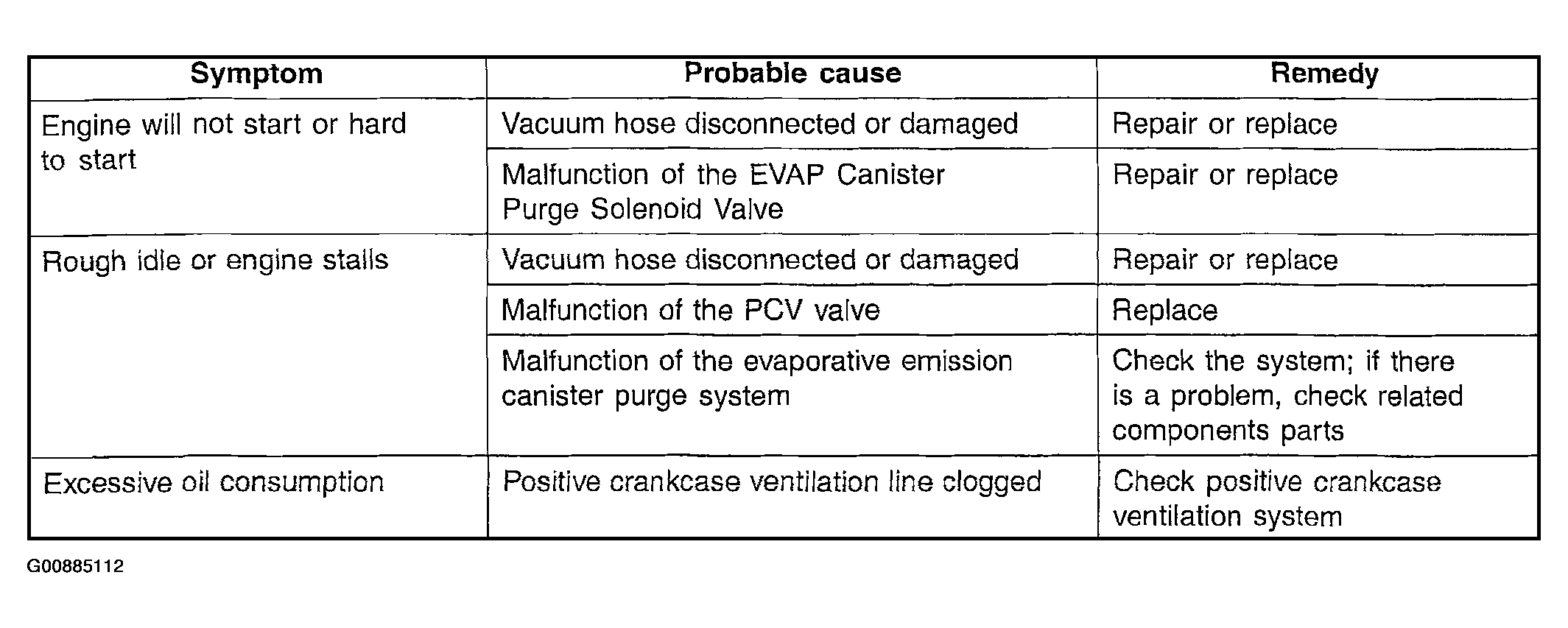

Fig 1: Troubleshooting

G00885112

Courtesy of HYUNDAI MOTOR CO.
